Flame Retardant CAT6 CWB/SWB/SWA Armoured Data Cables

FTX-CAT6 U/UTP4P24LH cwb/swb/swa
FTX-CAT6 F/UTP4P24LH cwb/swb/swa
FTX-CAT6 SF/UTP4P24LH cwb/swb/swa

Flame Retardant Data Cables

Application

Cat6 Cable is a cable standard for Gigabit Ethernet and other network protocol, suitable for 10BaseT,
100BaseTx & 1000BaseT (Gigabit Ethernet) application. In addition, these cables are with copper
wire braid armoured & flame retardant mud resistant outer sheath, providing additional mechanically
protection still maintaining the flexibility of the cable.

Standards

ISO/IEC 11801 EN 50173 ANSI/TIA/EIA 568

Fire Performance

Flame Retardance (Single Vertical
Wire Test)

EN 60332-1-2; IEC 60332-1-2

Reduced Fire Propagation
(Vertically-mounted bundled wires
& cable test)

EN 60332-3-24 ; IEC 60332-3-24

Halogen Free

IEC 60754-1; EN 50267-2-1

No Corrosive Gas Emission

IEC 60754-2; EN 50267-2-2

minimum Smoke Emission

IEC 61034-2; EN 61034 -2

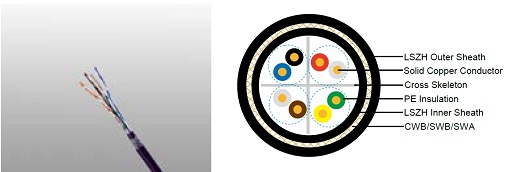

Cable Construction

Conductors: 23AWG solid bare copper.
Insulation: PE .
Twinning: Two coloured insulated conductors twisted together to form a pair.
Inner Sheath: Thermoplastic LSZH compound, coloured black.
Armouring:
CWB: Copper Wire Braid
SWB: Steel Wire Braid
SWA: Steel Wire Armour
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH
compound type SW2-SW4 as per BS 7655:section 2.6 can be offered.)

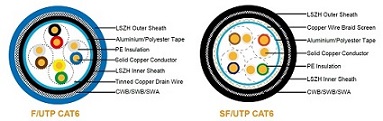

Cat6 F/UTP: These cables have collective shielding of aluminium/Polyester tape with drain wire.
Cat6 SF/UTP: These cables have double collective shieldings of aluminium/Polyester tape & copper
wire braid with drain wire.

Physical And Thermal Properties

Temperature range: -30°C ~ +75°C
Minimum bending radius during installation (mobile state): 8 x Overall Diameter
Minimum bending radius during operation (fixed state): 4 x Overall Diameter

Electrical Properties

AWG



23

Nominal Conductor Diameter

mm

0.56/0.57/0.58

maximum DC Resistant@20°C

Ω/100m

9.38

maximum DCR Unbalance

%

3

maximum mutual Capacitance

pF/m

5.8

maximum Capacitance Unbalance

pF/100m

30

Characteristic Impedance@1-100mHz

Ω

100+/-15

maximum Propagation Delay Skew

ns/100m

18

Transmission Properties

FREQ
mHz

maximum
Attenuation dB/100m

minimum
NEXT
dB

minimum
PSNEXT
dB

minimum
ELFEXT
dB/100m

minimum
PSELFEXT
dB/100m

minimum
RL
dB

0.772

1.8

76.0

74.

70.0

67.0

1

2.0

74.3

72.3

67.8

64.8

20.0

4

3.8

65.3

63.3

55.7

52.7

23.0

8

5.3

60.8

58.8

49.7

46.7

24.5

10

6.0

59.3

57.3

47.8

44.8

25.0

16

7.6

56.3

54.3

43.7

40.7

25.0

20

8.5

54.8

52.8

41.7

38.7

25.0

25

9.5

53.3

51.3

39.8

36.8

24.3

31.25

10.7

51.9

49.9

37.9

34.9

23.6

62.5

15.4

47.4

45.4

31.8

28.8

21.5

100

19.8

44.3

42.3

27.8

24.8

20.1

155

25.2

41.5

39.5

23.9

20.9

18.8

200

29.0

39.8

37.8

21.7

18.7

18.0

250

32.8

38.3

36.3

19.8

16.8

17.3

Cat6 SF/UTP

Construction Parameters

Cable Code

Construction
No. of elements×No. of cores in element×Conductor diameter

Nominal Insulation Thickness

Nominal Inner Sheath Thickness

Nominal Outer Sheath Thickness

Nominal Overall Diameter

Nominal
Weight



mm

mm

mm

mm

mm

kg/km

FTX-caT6 U/UTP CWB

4×2×0.58

0.2

0.6

1.0

7.88

115

FTX-caT6 U/UTP SWB

4×2×0.58

0.2

0.6

1.0

7.88

109

FTX-caT6 U/UTP SWA

4×2×0.53

0.2

0.6

1.0

8.88

189

FTX-caT6 f/UTP CWB

4×2×0.58

0.2

0.6

1.0

8.48

126

FTX-caT6 f/UTP SWB

4×2×0.58

0.2

0.6

1.0

8.48

132

FTX-caT6 f/UTP SWA

4×2×0.58

0.2

0.6

1.0

9.48

213

FTX-caT6 sf/UTP CWB

4×2×0.58

0.2

0.6

1.0

8.96

154

FTX-caT6 sf/UTP SWB

4×2×0.58

0.2

0.6

1.0

8.96

148

FTX-caT6 sf/UTP SWA

4×2×0.58

0.2

0.6

1.0

9.96

242
