Germany Standard Automotive Cable
FLR6Y
Applications
This FEP insulated single-core cable is used for automobiles, motorcycles and other motor vehicles, Especially suitable for wiring inside the engine compartment.

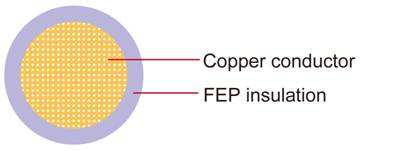

Construction
| Conductor |
Cu-ETP1 bare or tinned according to DIN EN13602 |
| Insulation |
Fluorinated Ethylene Propylene (FEP) |
| Standard Compliance |
ISO 6722 Class F LV112 |
Technical Parameters
Operating temperature: –65 °C to +210 °C
|
Conductor |
Insulation |
Cable |
| Nominal Cross-section |
No. and Dia. of Wires |
Diameter max. |
Electrical Resistance at 20°C max. |
Thickness Wall nom. |
Overall Diameter min. |
Overall Diameter max. |
Weight approx. |
| mm2 |
No./mm |
mm |
mΩ/m |
mm |
mm |
mm |
kg/km |
| 1x0.35 |
12/0.21 |
0.90 |
52.00 |
0.30 |
1.20 |
1.40 |
5 |
| 1x0.50 |
16/0.21 |
1.00 |
37.10 |
0.30 |
1.50 |
1.70 |
7 |
| 1x0.75 |
24/0.21 |
1.20 |
24.70 |
0.25 |
1.60 |
1.80 |
9 |
| 1x1.00 |
32/0.21 |
1.35 |
18.50 |
0.30 |
1.80 |
2.00 |
11 |
| 1x1.50 |
30/0.26 |
1.70 |
12.70 |
0.30 |
2.10 |
2.30 |
16 |
| 1x2.50 |
50/0.26 |
2.20 |
7.60 |
0.35 |
2.70 |
2.90 |
26 |
| 1x4.00 |
56/0.31 |
2.75 |
4.70 |
0.40 |
3.30 |
3.60 |
41 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
