Germany Standard Automotive Cable
FLYOY/FLYKOY
Applications
This PVC insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting, charging, lighting, signal and instrument panel circuits.

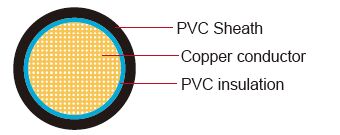

Construction
| Conductor | Cu-ETP1 bare according to DIN EN13602 |
| Insulation | PVC |
| Sheath | PVC,lead free |
| Standard Compliance | ISO 6722 Class B |
Special properties
Flame retardant, Extra flexibility, Cold resistance
Flexible conductors with PVC thick wall insulation with increased mechanical strength
Technical Parameters
Operating temperature: –40°C to +105 °C| Conductor Construction | Insulation | Cable | ||||||
| Nominal cross- section | No. and Dia. of Wires | Diameter of Conductor max. |
Electrical resistance at 20°C max. |
Nominal thickness | Sheath wall thickness | Overall Diameter Min. | Overall Diameter Max. | Weight approx. |
| mm2 | No./mm | mm | mΩ/m | mm | mm | mm | mm | kg/km |
| 1x4 | 56/0.31 | 2.75 | 4.7 | 0.8 | 2.0 | 8.0 | 8.4 | 123 |
| 1x6 | 84/0.31 | 3.3 | 3.1 | 0.8 | 2.0 | 8.6 | 9.0 | 149 |
| 1x10 | 80/0.41 | 4.5 | 1.82 | 1.0 | 3.0 | 12.2 | 12.8 | 267 |
| 1x16 | 126/0.41 | 6.3 | 1.16 | 1.0 | 2.0 | 11.5 | 12.1 | 279 |
| 1x50 | 396/0.41 | 10.5 | 0.368 | 0.8 | 1.4 | 14.5 | 15.1 | 587 |
| 1x50 | 1600/0.21 | 10.9 | 0.386 | 0.8 | 1.4 | 14.5 | 15.1 | 592 |
| 1x70 | 2200/0.21 | 13.3 | 0.272 | 1.0 | 1.6 | 17.5 | 18.3 | 870 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
