Multicore Unscreened Armoured Cables-Belden Equivalent 28538

Application

These multicore unscreened armoured cables are Type MC Metal Clad cables.

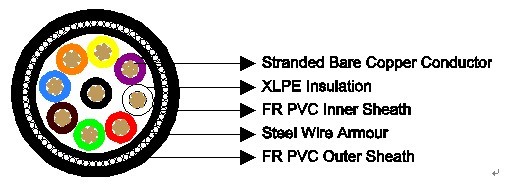

Construction

Conductor: Bare copper wire.

Insulation: XLPE.

Inner Sheath: FR PVC.

Armour: Steel wire armour.

Outer Sheath: FR PVC.

Insulation Colour: Black, White, Red, Green, Brown, Blue, Orange, Yellow, Purple. Other colours are available upon your request.

Electrical & Mechanical Characteristics

AWG



12

Conductor Construction



7x20

Nominal Conductor DC Resistance @20℃

Ω/km

5

Voltage Rating

V

600

Bending Radius



13xOverall Diameter

Operating Temperature

-40~90

Dimensions

Ordering Code

No. of cores

Insulation Thickness

Sheath Thickness

Overall Diameter





mm

mm

mm

BE1128538V SWA

9

0.8

1.7

24.82
