Multipair Individually and Overall Screened Cables-Belden Equivalent 8170

Application

These cables have individually screened pairs laid up in a foil/braid screen. Each individually screened pair has a 24AWG stranded tinned copper drain wire. These cables are suitable for EIA RS-232 and EIA RS-422 applications, used as computer cables.

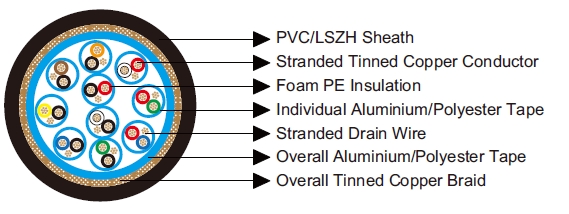

Construction

Conductor: Tinned copper wire.

Insulation: FoamPE.

Individual Screen: Aluminium/Polyester Tape.

Drain Wire: Tinned copper wire.

Overall Screen1: Aluminium/Polyester Tape.

Overall Screen2: Tinned copper braid, 65% coverage.

Sheath: PVC/LSZH.

Insulation Colour: Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White, Red & Green, Red & Blue.

Electrical & Mechanical Characteristics

AWG



24

Conductor Construction



7x0.2

UL Style



2493

Maximum Conductor Resistance

Ω/km

85

Voltage Rating

V

300

Nominal Capacitance Conductor to Conductor

pF/m

41

Nominal Capacitance Conductor to Screen

pF/m

72

Bending Radius



10xOverall Diameter

Operating Temperature

-40~60

Dimensions

Ordering Code

No. of pairs

Insulation Thickness

Sheath Thickness

Overall Diameter





mm

mm

mm

BE8170V

10

0.47

1.22

14.8

BE8170H

10

0.47

1.22

14.8
