Multipair Individually Screened Cables-Belden Equivalent 8778

Application

These cables have individually screened pairs laid up. Each individually screened pair has a 22AWG stranded tinned copper drain wire. These cables are used as computer cables.

Construction

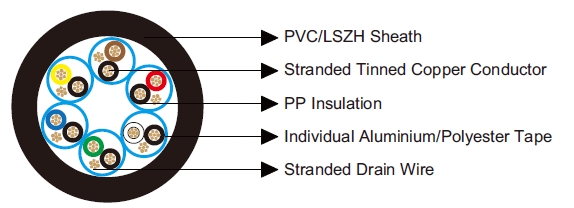

Conductor: Tinned copper wire.

Insulation: PP.

Individual Screen: Aluminium/Polyester Tape.

Drain Wire: Tinned copper wire.

Sheath: PVC/LSZH.

Insulation Colour: Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown.

Electrical & Mechanical Characteristics

AWG



22

Conductor Construction



7x0.254

UL Style



2919

Maximum Conductor Resistance

Ω/km

54.8

Voltage Rating

V

30

Nominal Capacitance Conductor to Conductor

pF/m

98

Nominal Capacitance Conductor to Screen

pF/m

180

Bending Radius



10xOverall Diameter

Operating Temperature

-20~80

Dimensions

Ordering Code

No. of pairs

Insulation Thickness

Sheath Thickness

Overall Diameter





mm

mm

mm

BE8778V

6

0.25

1.22

9.6

BE8778H

6

0.25

1.22

9.6
