P5或P5/P12 BFOU 0.6/1KV

应用
该电缆具有防火，阻燃，低烟无卤和防泥浆的特性，适用于控制，电力和照明系统。
标准
IEC 60092-353
IEC 60092-351
IEC 60092-359
IEC 60331-21
IEC 60332-1
IEC 60332-3-22
IEC 60754-1,2
IEC 61034-1,2
NEK 606:2004

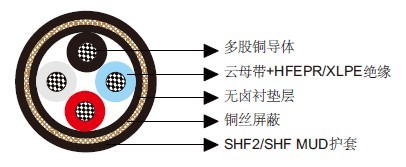

结构
导体：IEC 60228 class 2紧凑型多股镀锡退火铜导体。
绝缘：云母带+无卤EPR/云母带+XLPE。
衬垫层：无卤化合物。
铠装：镀锡铜编织。
外护套：无卤热固材料SHF2（用于P5型）。无卤，防泥浆热固材料SHF MUD（用于P5/P12型），黑色。
电气特性
标称导体截面积 |
mm² |
1.5 |
2.5 |
4 |
6 |
10 |
16 |
25 |
35 |
50 |
标称导体直径 |
mm |
1.6 |
2.1 |
2.6 |
3.2 |
4 |
5.1 |
6.5 |
7.4 |
8.7 |
最大直流电阻@20℃ |
Ω/km |
12.2 |
7.56 |
4.7 |
3.11 |
1.84 |
1.16 |
0.734 |
0.529 |
0.391 |
连续额定电流@45℃ 1芯 |
A |
23 |
30 |
40 |
52 |
72 |
96 |
127 |
157 |
196 |
连续额定电流@45℃ 2芯 |
A |
20 |
26 |
34 |
44 |
61 |
82 |
108 |
133 |
167 |
连续额定电流@45℃ 3&4芯 |
A |
16 |
21 |
28 |
36 |
50 |
67 |
89 |
110 |
137 |
短路电流1s |
A |
210 |
360 |
570 |
860 |
1430 |
2290 |
3580 |
5010 |
7150 |
工作电压 |
KV |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
标称导体截面积 |
mm² |
70 |
95 |
120 |
150 |
185 |
240 |
300 |
400 |
630 |
标称导体直径 |
mm |
10.3 |
12.2 |
13.8 |
15.1 |
17.0 |
19.6 |
21.9 |
24.6 |
32.5 |
最大直流电阻@20℃ |
Ω/km |
0.27 |
0.195 |
0.154 |
0.126 |
0.1 |
0.0762 |
0.0607 |
0.0475 |
0.0286 |
连续额定电流@45℃ 1芯 |
A |
242 |
293 |
339 |
389 |
444 |
522 |
601 |
690 |
890 |
连续额定电流@45℃ 2芯 |
A |
206 |
249 |
288 |
331 |
444 |
444 |
511 |
587 |
757 |
连续额定电流@45℃ 3&4芯 |
A |
169 |
205 |
237 |
272 |
311 |
365 |
421 |
483 |
623 |
短路电流1s |
A |
10020 |
13590 |
17170 |
21460 |
26470 |
34340 |
42930 |
57230 |
90140 |
工作电压 |
KV |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
环境温度校正因数
环境温度校正因数 |
35 |
40 |
45 |
50 |
55 |
60 |
65 |
70 |
75 |
80 |
额定系数 |
1.1 |
1.05 |
1.0 |
0.94 |
0.88 |
0.82 |
0.74 |
0.67 |
0.58 |
0.47 |
机械和热性能
弯曲半径：8×OD（安装中）；6×OD （固定安装）
温度范围：-20℃ ~ +90℃
尺寸和重量
结构
芯数×截面积(mm²) |
标称绝缘厚度
mm |
标称护套厚度
mm |
标称外径 |
标称重量
kg/km |
内 |
外 |
mm |
1×1.5 |
1.0 |
1.1 |
1.1 |
9.3 |
145 |
1×2.5 |
1.0 |
1.1 |
1.1 |
9.7 |
160 |
1×4 |
1.0 |
1.1 |
1.1 |
10.4 |
220 |
1×6 |
1.0 |
1.1 |
1.1 |
10.9 |
250 |
1×10 |
1.0 |
1.1 |
1.2 |
12.7 |
310 |
| 1×16 |
1.0 |
1.1 |
1.2 |
13.9 |
390 |
| 1×25 |
1.2 |
1.1 |
1.3 |
16.3 |
585 |
| 1×35 |
1.2 |
1.1 |
1.3 |
17.2 |
690 |
| 1×50 |
1.4 |
1.1 |
1.4 |
19.0 |
890 |
| 1×70 |
1.4 |
1.1 |
1.4 |
20.6 |
1110 |
| 1×95 |
1.6 |
1.1 |
1.5 |
23.1 |
1440 |
| 1×120 |
1.6 |
1.2 |
1.6 |
25.0 |
1735 |
| 1×150 |
1.8 |
1.2 |
1.7 |
27.0 |
2060 |
| 1×185 |
2.0 |
1.2 |
1.7 |
29.4 |
2545 |
| 1×240 |
2.2 |
1.2 |
1.8 |
32.6 |
3170 |
| 1×300 |
2.4 |
1.2 |
1.9 |
35.3 |
3910 |
| 1×400 |
2.4 |
1.4 |
2.1 |
41.0 |
5100 |
| 1×630 |
2.8 |
1.4 |
2.3 |
48.5 |
7660 |
| 2×1.5 |
1.0 |
1.1 |
1.2 |
14.2 |
310 |
| 2×2.5 |
1.0 |
1.1 |
1.3 |
15.1 |
360 |
| 2×4 |
1.0 |
1.1 |
1.3 |
16.6 |
470 |
| 2×6 |
1.0 |
1.1 |
1.4 |
17.9 |
555 |
| 2×10 |
1.0 |
1.1 |
1.4 |
19.9 |
705 |
| 2×16 |
1.0 |
1.1 |
1.5 |
22.5 |
985 |
| 2×25 |
1.2 |
1.2 |
1.6 |
26.4 |
1360 |
| 2×35 |
1.2 |
1.2 |
1.7 |
28.4 |
1620 |
| 2×50 |
1.4 |
1.2 |
1.9 |
32.4 |
2290 |
| 2×70 |
1.4 |
1.2 |
2.1 |
38.0 |
3260 |
| 2×95 |
1.6 |
1.2 |
2.3 |
41.6 |
3910 |
| 2×120 |
1.6 |
1.4 |
2.4 |
45.3 |
4710 |
| 2×150 |
1.8 |
1.4 |
2.6 |
49.7 |
5670 |
| 2×185 |
2.0 |
1.4 |
2.7 |
54.3 |
6840 |
| 2×240 |
2.2 |
1.6 |
3.0 |
61.5 |
8790 |
| 2×300 |
2.4 |
1.6 |
3.2 |
67.8 |
10630 |
| 3×1.5 |
1.0 |
1.1 |
1.3 |
14.8 |
345 |
| 3×2.5 |
1.0 |
1.1 |
1.3 |
16.2 |
445 |
| 3×4 |
1.0 |
1.1 |
1.3 |
17.4 |
530 |
| 3×6 |
1.0 |
1.1 |
1.4 |
18.7 |
635 |
| 3×10 |
1.0 |
1.1 |
1.5 |
21.1 |
830 |
| 3×16 |
1.0 |
1.1 |
1.5 |
23.7 |
1160 |
| 3×25 |
1.2 |
1.2 |
1.7 |
28.1 |
1640 |
| 3×35 |
1.2 |
1.2 |
1.8 |
30.2 |
1980 |
| 3×50 |
1.4 |
1.2 |
2.0 |
34.3 |
2750 |
| 3×70 |
1.4 |
1.2 |
2.2 |
39.0 |
3675 |
| 3×95 |
1.6 |
1.4 |
2.4 |
44.7 |
4955 |
| 3×120 |
1.6 |
1.4 |
2.5 |
48.3 |
6035 |
| 3×150 |
1.8 |
1.4 |
2.7 |
53.2 |
7355 |
| 3×185 |
2.0 |
1.6 |
2.9 |
59.5 |
9025 |
| 3×240 |
2.2 |
1.6 |
3.2 |
66.5 |
11590 |
| 3×300 |
2.4 |
1.8 |
3.4 |
72.6 |
13740 |
| 4×1.5 |
1.0 |
1.1 |
1.3 |
16.4 |
400 |
| 4×2.5 |
1.0 |
1.1 |
1.3 |
17.3 |
505 |
| 4×4 |
1.0 |
1.1 |
1.4 |
18.8 |
620 |
| 4×6 |
1.0 |
1.1 |
1.4 |
20.1 |
750 |
| 4×10 |
1.0 |
1.1 |
1.5 |
22.7 |
985 |
| 4×16 |
1.0 |
1.2 |
1.6 |
25.9 |
1400 |
| 4×25 |
1.2 |
1.2 |
1.8 |
30.7 |
1995 |
| 4×35 |
1.2 |
1.2 |
1.9 |
33.1 |
2440 |
| 4×50 |
1.4 |
1.4 |
2.0 |
38.2 |
3430 |
| 4×70 |
1.4 |
1.4 |
2.2 |
42.7 |
4600 |
| 4×95 |
1.6 |
1.6 |
2.4 |
49.4 |
6135 |
| 4×120 |
1.6 |
1.6 |
2.5 |
53.6 |
7515 |
| 4×150 |
1.8 |
1.6 |
2.9 |
59.0 |
9010 |
| 4×185 |
2.0 |
1.6 |
3.1 |
64.7 |
11000 |
| 4×240 |
2.2 |
1.8 |
3.4 |
73.1 |
14160 |
| 4×300 |
2.4 |
1.8 |
3.7 |
80.7 |
17550 |
| 5×1.5 |
1.0 |
1.1 |
1.4 |
17.7 |
510 |
| 6×1.5 |
1.0 |
1.1 |
1.4 |
19.0 |
545 |
| 7×1.5 |
1.0 |
1.1 |
1.4 |
19.0 |
590 |
| 8×1.5 |
1.0 |
1.1 |
1.5 |
21.8 |
715 |
| 9×1.5 |
1.0 |
1.1 |
1.6 |
23.3 |
720 |
| 10×1.5 |
1.0 |
1.1 |
1.6 |
23.6 |
790 |
| 12×1.5 |
1.0 |
1.2 |
1.6 |
24.3 |
880 |
| 14×1.5 |
1.0 |
1.2 |
1.7 |
25.5 |
965 |
| 16×1.5 |
1.0 |
1.2 |
1.7 |
26.7 |
1035 |
| 19×1.5 |
1.0 |
1.2 |
1.7 |
27.4 |
1185 |
| 20×1.5 |
1.0 |
1.2 |
1.8 |
29.5 |
1260 |
| 23×1.5 |
1.0 |
1.2 |
1.9 |
31.8 |
1435 |
| 24×1.5 |
1.0 |
1.2 |
2.0 |
33.2 |
1510 |
| 27×1.5 |
1.0 |
1.2 |
2.0 |
33.9 |
1615 |
| 30×1.5 |
1.0 |
1.2 |
2.0 |
34.9 |
1735 |
| 32×1.5 |
1.0 |
1.4 |
2.0 |
35.5 |
1800 |
| 33×1.5 |
1.0 |
1.4 |
2.0 |
36.7 |
1940 |
| 37×1.5 |
1.0 |
1.4 |
2.0 |
38.0 |
2090 |
| 44×1.5 |
1.0 |
1.4 |
2.3 |
42.6 |
2460 |
| 5×2.5 |
1.0 |
1.1 |
1.4 |
18.8 |
595 |
| 6×2.5 |
1.0 |
1.1 |
1.4 |
20.4 |
650 |
7x2.5 |
1.0 |
1.1 |
1.4 |
20.4 |
700 |
8x2.5 |
1.0 |
1.1 |
1.5 |
23.5 |
790 |
9x2.5 |
1.0 |
1.1 |
1.6 |
25.1 |
860 |
10x2.5 |
1.0 |
1.1 |
1.6 |
25.4 |
955 |
12x2.5 |
1.0 |
1.2 |
1.6 |
26.1 |
1045 |
14x2.5 |
1.0 |
1.2 |
1.7 |
27.3 |
1160 |
16x2.5 |
1.0 |
1.2 |
1.8 |
28.8 |
1265 |
19x2.5 |
1.0 |
1.2 |
1.8 |
29.6 |
1445 |
20x2.5 |
1.0 |
1.2 |
1.9 |
31.8 |
1545 |
23x2.5 |
1.0 |
1.4 |
2.0 |
34.7 |
1805 |
24x2.5 |
1.0 |
1.4 |
2.0 |
35.8 |
1850 |
27x2.5 |
1.0 |
1.4 |
2.0 |
35.4 |
1970 |
30x2.5 |
1.0 |
1.4 |
2.1 |
38.1 |
2235 |
33x2.5 |
1.0 |
1.4 |
2.2 |
39.6 |
2390 |
37x2.5 |
1.0 |
1.4 |
2.3 |
41.2 |
2610 |
44x2.5 |
1.0 |
1.4 |
2.4 |
46.2 |
3075 |
|
