300/500V Mica+LSZH Insulated, Non-sheathed Power Cables to BS EN 50525-3-31 (Single Core)

FFX100 05mZ1-U/R/K (CU/MGT+LSZH 300/500V Class 1/2/5)

FFX100 05mZ1-U/R/K (CU/MGT+LSZH 300/500V Class 1/2/5)

Application

The cables are mainly used in power stations, mass transit underground passenger systems, airports,petrochemical plants, hotels, hospitals and high-rise buildings.

Standards

Basic design adapted from BS EN 50525-3-31

Fire Performance

Circuit Integrity IEC 60331-21; BS 6387
Flame Retardance (Single vertical wire or cable test) IEC 60332-1-2; EN 60332-1-2
Halogen free IEC 60754-1; EN 50267-2-1
No Corrosive Gas Emission IEC60754-2; EN 50267-2-2
Minimum Smoke Emission IEC 61034-2; EN 61034-2

Voltage Rating

300/500 V

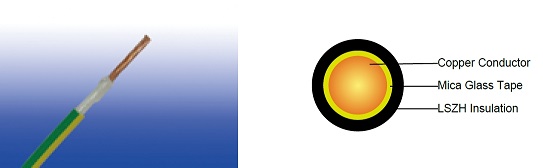

Cable Construction

Conductor: Copper conductor according to BS EN 60228 class 1/2/5.
Fire Barrier: Mica glass tape.
Insulation: Thermoplastic compound of type TI 7 to EN 50363-7.
Insulation Option: UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.

Colour Code

Black, Blue, Brown, Grey, Orange, Pink, Red, Turquoise, Violet, White, Green and Yellow. Bi-colours of any combination of the above mono-colours are permitted.

Physical And Thermal Properties

Maximum temperature range during operation: 70°C
Maximum short circuit temperature (5 Seconds): 160°C
Minimum bending radius: 4 x Overall Diameter

Construction Parameters

Conductor FFX100 05mZ1-U/R/K
No. of Cores × Cross-sectional Area Conductor Class Nominal Insulation Thickness Min. Overall Diameter Max. Overall Diameter Approx. Weight
No.×mm²   mm mm mm kg/km
1×0.5 1 0.6 2.9 3.3 13.5
1×0.75 1 0.6 3.1 3.5 16.5
1×1.0 1 0.6 3.2 3.7 19.7
1×0.5 2 0.6 3.0 3.4 14.4
1×0.75 2 0.6 3.2 3.6 17.3
1×1.0 2 0.6 3.3 3.8 21.3
1×0.5 5 0.6 3.1 3.5 14.2
1×0.75 5 0.6 3.2 3.7 17.7
1×1.0 5 0.6 3.4 3.8 20.7

Electrical Properties

Conductor Operating Temperature : 70°C
Ambient Temperature : 30°C

Current-Carrying Capacities (Amp)

Conductor cross-sectional area Single-phase a.c. Three-phase a.c.
mm² A A
0.5 3 3
0.75 6 6
1.0 10 10

Note: These values apply to the majority of cases. further information should be sought in unusual cases eg.:

When high ambient temperatures are involved, ie. above 30°C

Where long lengths are used

Where ventilation is restricted

Where the cords are used for other purposes, ego internal wiring of apparatus.

Voltage Drop (Per Amp Per Meter)

Conductor cross-sectional area 2 cables d.c. 2 cables, single-phase a.c. 3 or 4 cables, three-phase a.c.
Ref. Methods A&B (enclosed in conduit or trunking) Ref. Methods C, F&G (clipped direct, on trays or in free air) Ref. Methods A&B (enclosed in conduit or trunking) Ref. Methods C, F&G (clipped direct, on trays or in free air)
Cables touching Cables spaced* Cables touching, Trefoil Cables touching, flat Cables spaced*, flat
1 2 3 4 5 6 7 8 9
mm² mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m
0.5 93 93 93 93 80 80 80 80
0.75 62 62 62 62 54 54 54 54
1.0 46 46 46 46 40 40 40 40

Note: *Spacings larger than one cable diameter will result in a large voltage drop.
