450/750V PVC Insulated, Non-sheathed Power Cables (Single Core)

FGD100 07V-R (CU/PVC 450/750V Class 2)

APPLICATION

This cables are mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals, and high-rise buildings. This product type is CE and TUV approved.

STANDARDS

Basic design to BS EN 50525-2-31(formerly BS 6004:2000)

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)

EN 60332-1-2

VOLTAGE RATING

450/750V

CABLE CONSTRUCTION

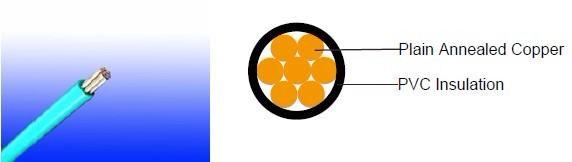

Conductor	H05V-U	Class 1 solid copper conductor to BS EN 60228.
	H05V-R	Class 2 stranded copper conductor to BS EN 60228.
	H05V-K	Class 5 stranded copper conductor to BS EN 60228.
Insulation	PVC Type TI 1 according to BS EN 50363-3

COLOUR CODE

Black, Blue, Brown, Grey, Orange, Pink, Red, Turquoise, Violet, White, Green and Yellow.

PHYSICAL AND THERMAL PROPERTIES

Maximum temperature range during operation (PVC)	70°C
Maximum short circuit temperature (5 Seconds)	160°C
Minimum bending radius	Up to 8mm²	4 x overall diameter
	8mm² to 12mm²	5 x overall diameter
	Above 12mm²	6 x overall diameter

CONSTRUCTION PARAMETERS

Conductor		FGD100 07V-U/R/K
No. of Cores x Cross Section	Class of Conductor	Nominal Insulation Thickness	Maximum Overall Diameter	Approx. Weight
No.xmm²		mm	mm	kg/km
1x1.5	1	0.7	3.2	21
1x2.5	1	0.8	3.9	33
1x4.0	1	0.8	4.4	49
1x6.0	1	0.8	5.0	69
1x10	1	1.0	6.4	115
1x1.5	2	0.7	3.3	23
1x2.5	2	0.8	4.0	35
1x4.0	2	0.8	4.6	51
1x6.0	2	0.8	5.2	71
1x10	2	1.0	6.7	120
1x16	2	1.0	7.8	170
1x25	2	1.2	9.7	260
1x35	2	1.2	10.9	350
1x50	2	1.4	12.8	480
1x70	2	1.4	14.6	680
1x95	2	1.6	17.1	930
1x120	2	1.6	18.8	1160
1x150	2	1.8	20.9	1430
1x185	2	2.0	23.3	1780
1x240	2	2.2	26.6	2360
1x300	2	2.4	29.6	2940
1x400	2	2.6	33.2	3740
1x500	2	2.8	36.9	4950
1x630	2	2.8	41.1	6300
1x800	2	2.8	45.7	8610
1x1000	2	3.0	51.0	10820
1x1.5	5	0.7	3.4	20
1x2.5	5	0.8	4.1	31
1x4.0	5	0.8	4.8	48
1x6.0	5	0.8	5.3	69
1x10	5	1.0	6.8	121
1x16	5	1.0	8.1	211
1x25	5	1.2	10.2	303
1x35	5	1.2	11.7	417
1x50	5	1.4	13.9	539
1x70	5	1.4	16.0	730
1x95	5	1.6	18.2	900
1x120	5	1.6	20.2	1135
1x150	5	1.8	22.5	1410
1x185	5	2.0	24.9	1845
1x240	5	2.2	28.4	2270

ELECTRICAL PROPERTIES

Conductor Operating Temperature	70°C
Ambient Temperature	30°C

Current-Carrying Capacities (Amp) according to BS 7671:2008 table 4D1A

Conductor cross- sectional area	Reference Method A (enclosed in conduit in thermally insulating wall etc)		Reference Method B (enclosed in conduit on a wall or in trunking etc)		Reference Method C (clipped direct)		Reference Method F (in free air or on a perforated cable tray horizontal or vertical etc)
					Reference Method C (clipped direct)		Touching			Spaced by one cable diameter
	2 cables, single-phase a.c. or d.c.	3 or 4 cables, three -phase a.c.	2 cables, single-phase a.c. or d.c	3 or 4 cables, three-phase a.c.	2 cables, single-phase a.c. or d.c. flat and touching	3 or 4 cables, three-phase a.c. flat and touching or trefoil	2 cables, single-phase a.c. or d.c. flat	3 cables, three-phase a.c. flat	3 cables, three-phase a.c. trefoil	2 cables, single-phase a.c. or d.c. or 3 cables three- phase a.c. flat
	2 cables, single-phase a.c. or d.c.	3 or 4 cables, three -phase a.c.	2 cables, single-phase a.c. or d.c	3 or 4 cables, three-phase a.c.	2 cables, single-phase a.c. or d.c. flat and touching		2 cables, single-phase a.c. or d.c. flat	3 cables, three-phase a.c. flat	3 cables, three-phase a.c. trefoil	Horizontal	Vertical
1	2	3	4	5	6	7	8	9	10	11	12
mm²	A	A	A	A	A	A	A	A	A	A	A
1.5	14.5	13.5	17.5	15.5	20	18	-	-	-	-	-
2.5	20	18	24	21	27	25	-	-	-	-	-
4.0	26	24	32	28	37	33	-	-	-	-	-
6.0	34	31	41	36	47	43	-	-	-	-	-
10	46	42	57	50	65	59	-	-	-	-	-
16	61	56	76	68	87	79	-	-	-	-	-
25	80	73	101	89	114	104	131	114	110	146	130
35	99	89	125	110	141	129	162	143	137	181	162
50	119	108	151	134	182	167	196	174	167	219	197
70	151	136	192	171	234	214	251	225	216	281	254
95	182	164	232	207	284	261	304	275	264	341	311
120	210	188	269	239	330	303	352	321	308	396	362
150	240	216	300	262	381	349	406	372	356	456	419
185	273	245	341	296	436	400	463	427	409	521	480
240	321	286	400	346	515	472	546	507	485	615	569
300	367	328	458	394	594	545	629	587	561	709	659
400	-	-	546	467	694	634	754	689	656	852	795
500	-	-	626	533	792	723	868	789	749	982	920
630	-	-	720	611	904	826	1005	905	855	1138	1070
800	-	-	-	-	1030	943	1086	1020	971	1265	1188
1000	-	-	-	-	1154	1058	1216	1149	1079	1420	1337

Voltage Drop (Per Amp Per Meter) according to BS 7671:2008 table 4D1B

Nominal Cross Section Area	2 cables d.c.	2 cables, single-phase a.c.									3 or 4 cables, three-phase a.c.
		Ref. Methods A and B (enclosed in conduit or trunking)			Ref. Methods C & F(clipped direct, on trays or in free air)						Ref. Methods A & B (enclosed in conduit or trunking			Ref. Methods C & F (clipped direct, on trays or in free air)
		Ref. Methods A and B (enclosed in conduit or trunking)			Cables touching			Cables spaced*			Ref. Methods A & B (enclosed in conduit or trunking			Cables touching, Trefoil			Cables touching, Flat			Cables spaced*, Flat
1	2	3			4			5			6			7			8			9
mm²	mV/A/m	mV/A/m			mV/A/m			mV/A/m			mV/A/m			mV/A/m			mV/A/m			mV/A/m
1.5	29	29			29			29			25			25			25			25
2.5	18	18			18			18			15			15			15			15
4.0	11	11			11			11			9.5			9.5			9,5			9.5
6.0	7.3	7.3			7.3			7.3			6.4			6.4			6.4			6.4
10	4.4	4.4			4.4			4.4			3.8			3.8			3.8			3.8
16	2.8	2.8			2.8			2.8			2.4			2.4			2.4			2.4
		r	x	z	r	x	z	r	x	z	r	x	z	r	x	z	r	x	z	r	x	z
25	1.75	1.80	0.33	1.80	1.75	0.20	1.75	1.75	0.29	1.80	1.50	0.29	1.55	1.50	0.175	1.50	1.50	0.25	1.55	1.50	0.32	1.55
35	1.25	1.30	0.31	1.30	1.25	0.195	1.25	1.25	0.28	1.30	1.10	0.27	1.10	1.10	0.170	1.10	1.10	0.24	1.10	1.10	0.32	1.15
50	0.93	0.95	0.3	1.0	0.93	0.19	0.95	0.93	0.28	0.97	0.81	0.26	0.85	0.8	0.165	0.82	0.8	0.24	0.84	0.8	0.32	0.86
70	0.63	0.65	0.29	0.72	0.63	0.185	0.66	0.63	0.27	0.69	0.56	0.25	0.61	0.55	0.16	0.57	0.55	0.24	0.6	0.55	0.31	0.63
95	0.46	0.49	0.28	0.56	0.47	0.18	0.5	0.47	0.27	0.54	0.42	0.24	0.48	0.41	0.155	0.43	0.41	0.23	0.47	0.4	0.31	0.51
120	0.36	0.39	0.27	0.47	0.37	0.175	0.41	0.37	0.26	0.45	0.33	0.23	0.41	0.32	0.15	0.36	0.32	0.23	0.4	0.32	0.3	0.44
150	0.29	0.31	0.27	0.41	0.3	0.175	0.34	0.29	0.26	0.39	0.27	0.23	0.36	0.26	0.15	0.3	0.26	0.23	0.34	0.26	0.3	0.4
185	0.23	0.25	0.27	0.37	0.24	0.17	0.29	0.24	0.26	0.35	0.22	0.23	0.32	0.21	0.145	0.26	0.21	0.22	0.31	0.21	0.3	0.36
240	0.18	0.195	0.26	0.33	0.185	0.165	0.25	0.185	0.25	0.31	0.17	0.23	0.29	0.16	0.145	0.22	0.16	0.22	0.27	0.16	0.29	0.34
300	0.145	0.16	0.26	0.31	0.15	0.165	0.22	0.15	0.25	0.29	0.14	0.23	0.27	0.13	0.14	0.19	0.13	0.22	0.25	0.13	0.29	0.32
400	0.105	0.13	0.26	0.29	0.12	0.16	0.2	0.115	0.25	0.27	0.12	0.22	0.25	0.105	0.14	0.175	0.105	0.21	0.24	0.1	0.29	0.31
500	0.086	0.11	0.26	0.28	0.098	0.155	0.185	0.093	0.24	0.26	0.1	0.22	0.25	0.086	0.135	0.16	0.086	0.21	0.23	0.081	0.29	0.3
630	0.068	0.094	0.25	0.27	0.081	0.155	0.175	0.076	0.24	0.25	0.08	0.22	0.24	0.072	0.135	0.15	0.072	0.21	0.22	0.066	0.28	0.29
800	0.053	-	-	-	0.068	0.15	0.165	0.061	0.24	0.25	-	-	-	0.06	0.13	0.145	0.06	0.21	0.22	0.053	0.28	0.29
1000	0.042	-	-	-	0.059	0.15	0.16	0.05	0.24	0.24	-	-	-	0.052	0.13	0.14	0.052	0.2	0.21	0.044	0.28	0.28

Note: *Spacings larger than one cable diameter will result in a large voltage drop.

r = conductor resistance at operating temperature

x = reactance

z = impedance
