600/1000V XLPE Insulated, PVC Sheathed, Armoured Power Cables (Multicore)

FGD400 1RV-R (CU/XLPE/PVC 600/1000V Class 2)
FGD400 1RVMV-R (CU/XLPE/PVC/SWA/PVC 600/1000V Class 2)

Flame Retardant Power & Control Cables

Application

The cables are mainly used in power stations, mass transit underground passenger systems,
airports, petrochemical plants, hotels, hospitals, and high-rise buildings.

Standards

Basic design adapted to IEC 60502-1; BS 5467

Fire Performance

Flame Retardance (Single Vertical
Wire Test)**

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE
0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Reduced Fire Propagation
(Vertically-mounted bundled wires
& cable test)**

EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC
compound and the cable design.

Voltage Rating

600/1000V

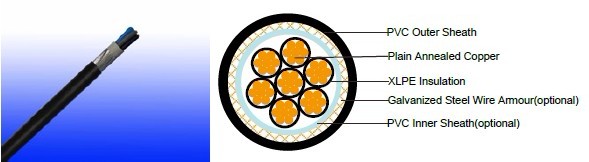

Cable Construction

Conductor: Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2.
Insulation: Extruded cross-linked XLPE compound.
Inner Sheath(optional): PVC Compound
Armouring(optional): Galvanized Steel Wire
Outer Sheath: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance,
anti rodent and anti termite properties can be offered as option. Compliance to fire performance
standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the
PVC compound and the overall cable design. LSPVC can also be provided upon request.

Colour Code

Insulation Colour as per BS7671



With Earth Conductor

Without Earth Conductor

2Cores

-

Brown, Blue

3Cores

Yellow/Green, Brown, Blue

Brown, Gray, Black

4Cores

Yellow/Green, Brown, Gray, Black

Brown, Gray, Black, Blue

5Cores

Yellow/Green, Brown, Gray, Black, Blue

Brown, Gray, Black, Blue, Black

Above 5 Cores

Yellow/Green, Black Numbered

Black Numbered


Sheath Colour: Black (other colors upon request)

Physical And Thermal Properties

Temperature range during operation: Max.90°C for XLPE
250°C in short-circuit for 5secs max.
Minimum bending radius: 8 x Overall Diameter (unarmoured cable)
10 x Overall Diameter (armoured cable)

Construction Parameters

Conductor FGD400 1RV-R FGD400 1RVMV-R

No. of Core
X Cross Section

No./ Nominal Diameter of
Strands

Nominal Insulation Thickness

Unarmoured Armoured

Nominal Overall Diameter

Approx. Weight

Diameter Over Inner Sheath

Armour Wire Diameter

Nominal Overall Diameter

Approx. Weight

mm2 No./mm mm mm mm mm mm mm kg/km
7Cores

7x1.5

7/0.53

0.7

12.4

225

11.2

0.9

16.0

490

7x2.5

7/0.67

0.7

13.8

303

12.4

0.9

17.2

602

7x4

7/0.85

0.7

15.5

422

14.1

1.25

19.8

871

10Cores

10x1.5

7/0.53

0.7

15.6

325

14.3

1.25

20.0

761

10x2.5

7/0.67

0.7

17.5

426

15.9

1.25

21.8

943

10x4

7/0.85

0.7

19.7

597

18.5

1.25

24.4

1213

12Cores

12x1.5

7/0.53

0.7

16.2

370

14.8

1.25

20.5

827

12x2.5

7/0.67

0.7

18.1

489

16.5

1.25

22.4

1020

12x4

7/0.85

0.7

20.3

690

19.1

1.6

25.7

1462

19Cores

19x1.5

7/0.53

0.7

19.0

516

17.4

1.6

24.0

1186

19x2.5

7/0.67

0.7

21.3

725

19.9

1.6

26.7

1498

19x4

7/0.85

0.7

24.0

1037

22.6

1.6

29.4

1931

27Cores

27x1.5

7/0.53

0.7

22.7

712

21.3

1.6

28.1

1537

27x2.5

7/0.67

0.7

25.5

1004

23.9

1.6

30.9

1933

27x4

7/0.85

0.7

28.8

1445

27.2

1.6

34.4

2532

37cores

37x1.5

7/0.53

0.7

25.5

941

23.9

1.6

30.7

1856

37x2.5

7/0.67

0.7

28.7

1334

26.9

1.6

33.9

2372

37x4

7/0.85

0.7

32.5

1932

31.1

2.0

39.3

3448

48 Core

48x1.5

7/0.53

0.7

29.0

1186

27.5

1.6

34.6

2276

48x2.5

7/0.67

0.7

32.9

1706

31.3

2.0

39.6

3252

48x4

7/0.85

0.7

37.3

2479

35.7

2.0

44.2

4273

Electrical Properties

Conductor Operating Temperature : 90°C
Ambient Temperature : 30°C

FGD400 1RV-R
Current-Carrying Capacities (Amp)

Conductor cross- sectional area

Reference
Method 4 (enclosed in conduit
in thermally insulating wall
etc)

Reference Method 3 (enclosed in conduit on
a wall or in trunking etc)

Reference Method
1 (clipped direct)

Reference Method 11 (on a perforated cable tray, horizontal or vertical)

Reference Method 12 (free air)

Horizontal flat spaced

Vertical flat spaced

Trefoil



2 cables, single- phase a.c. or d.c.

3 or 4 cables,
3-phase a.c.

2 cables, single- phase a.c. or d.c

3 or 4 cables,
3-phase a.c.

2 cables, single- phase a.c. or d.c. flat and touching

3 or 4 cables,
3-phase a.c. flat and touching or trefoil

2 cables, single- phase a.c. or d.c. or flat and touching

3 or 4 cables,
3-phase a.c. flat and touching or trefoil

2 cables, single- phase a.c. or d.c.
or 3 c ables three phase

2
cables, single- phase a.c. or d.c.
or 3 cables three
phase

3 cables, trefoil
3-phase a.c.

1

2

3

4

5

6

7

8

9

10

11

12

mm2

A

A

A

A

A

A

A

A

A

A

A

1.5

18

17

22

19

25

23

-

-

-

-

-

2.5

24

23

30

26

34

31

-

-

-

-

-

4

33

30

40

35

46

41

-

-

-

-

-

Voltage Drop (Per Amp Per Meter)

Nominal Cross Section Area

2 cables d.c.

2 cables, single-phase a.c.

3 or 4 cables, 3-phase a.c.

Ref. Methods
3 and 4 (enclosed in conduit etc, in or on a wall)

Ref. Methods 1 and 11 (clipped direct or on trays touching)

Ref. Methods
3 and 4 (enclosed in conduit etc, in or on a wall)

Ref. Methods 1,

Ref. Methods 1 and 11

11 and 12 (in trefoil)

(Flat and touching)

1

2

3

4

5

6

7

mm2

mV/A/m

mV/A/m

mV/A/m

mV/A/m

mV/A/m

mV/A/m

1.5

31

31

27

27

27

27

2.5

19

19

16

16

16

16

4

33

12

10

10

10

10

FGD400 1RVMV-R
Current-Carrying Capacities (Amp)
Conductor
crosssectional
area
Reference
Method 1 (clipped
direct)
Reference Method 11 (on
a perforated horizontal
cable trayor Reference
Method 13 [free air] )
In single-way
ducts
Laid direct in ground
one
2-core
cable
single
phase
a.c. or
d.c.
one
3-core
or
4-core
cable
3-phase
a.c.
one 2-core
cable single
phase a.c.
or d.c.
one 3-core
or 4-core
cable
3-phase
a.c.
one
2-core
cable
single
phase
a.c. or
d.c.
one
3-core or
4-core
cable
3-phase
a.c.
one
2-core
cable
single
phase
a.c. or
d.c.
one
3-core or
4-core
cable
3-phase
a.c.

1

2

3

4

5

6

7

8

9

mm2

A

A

A

A

A

A

A

A

1.5

27

23

29

25

-

23

-

28

2.5

36

31

39

33

-

30

-

36

4

49

42

52

44

-

40

-

48

Voltage Drop (Per Amp Per Meter)

Conductor cross-sectional area

2-core cable d.c.

2 cables, single-phase a.c.

3 or 4 cables, 3-phase a.c.

2 cables, single- phase a.c.

3 or 4 cables,
3-phase a.c.

In ducts or in ground

In ducts or
in ground

1

2

3

4

5

6

mm2

mV/A/m

mV/A/m

mV/A/m

mV/A/m

mV/A/m

1.5

31.0

31.0

27.0

31.0

25.0

2.5

19.0

19.0

16.0

19.0

15.0

4

12.0

12.0

10.0

12.0

9.7
