Flame Retardant RG11 A/U CWB/SWB/SWA Armoured Coaxial Cables

MTA-B-C-D-Y

Application

This cables are used for interconnection of distribution boxes and end devices, where continued
functionality is required during a fire situation. The cables are very suitable for various indoor and
outdoor applications, including routing between buildings within ducts and inside building up to riser
shafts.

Standards

Basic design adapted to Telcordia GR409-CORE / TIA/EIA 568B.3 / ICEA-S-83-596

Fire Performance

Flame Retardance (Single Vertical Wire Test)**	EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)**	EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC compound and the cable design.

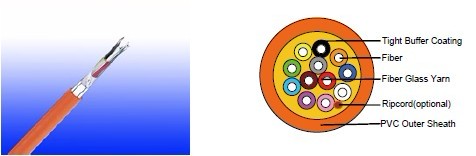

Cable Construction

Optical fibers: Singlemode and multimode tight fibers, with tight buffer coating.
Reinforcement: Either aramid yarn or fiber glass is wound around the tube to provide physical
protection and tensile strength, with added fire protection.
Inner Sheath(optional): Thermoplastic PVC compound type LTS3 as per BS 7655-6.1
Ripcord(optional): An optional ripcord can be located under the outer sheath to facilitate jacket
removal.
Armouring(optional):
STA: Corrugated steel tape armour
SWB: Steel wire braid
Outer Sheath: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance,
anti rodent and anti termite properties can be offered as option. Compliance to fire performance
standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the
PVC compound and the overall cable design. LSPVC can also be provided upon request.

Physical And Thermal Properties

Temperature range during operation (fixed state): -20°C - +60°C
Temperature range during installation (mobile state): 0°C - +50°C
Minimum bending radius: 10 times the outer diameter for unarmoured cables
20 times the outer diameter for armoured cables

Construction Parameters

Cable Code	N° of Fibers	Nominal Overall Diameter	Max. Tensile Strength	Minimum Bending Radius	Approx. Weight
		mm	N	mm	kg/km
MTA-B-2-0-Y	2	7,6	250	76	55
MTA-B-4-0-Y	4	7,8	250	78	67
MTA-B-6-0-Y	6	8,6	400	86	77
MTA-B-8-0-Y	8	8,8	400	88	81
MTA-B-12-0-Y	12	9,3	400	93	90
