Flame Retardant RG6 A/U CWB/SWB/SWA Armoured Coaxial cables

Flame Retardant Coaxial Cables

Application

These 75Ω coaxial cables are suitable for installation on board of ships and other indoor marine environments.

Standards

Basic design adapted to MIL-C-17

Fire Performance

Flame Retardance (Single Vertical
Wire Test)**

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE
0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Reduced Fire Propagation
(Vertically-mounted bundled wires
& cable test)**

EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC compound and the cable design.

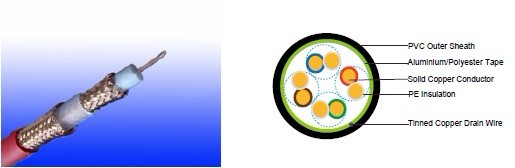

Cable Construction

Conductors: 18AWG solid bare copper.
Insulation: PE compound.
Screen1: Aluminium/polyester or aluminium tape.
Screen2: Tinned copper braid.
Inner Sheath: PVC compound.
Armour:
cwb: copper Wire Braid
swb: Steel Wire Braid
swa: Steel Wire Armour
Outer Sheath: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance,
anti rodent and anti termite properties can be offered as option. Compliance to fire performance
standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the
PVC compound and the overall cable design. LSPVC can also be provided upon request.

Physical And Thermal Properties

Temperature Range: -30°C - +75°C
Minimum Bending Radius: 815 X Overall Diameter

Electrical Properties

AWG



18

Nominal Conductor Diameter

mm

1.0

Impedance

Ω

75+/-5

Nominal Attenuation@100MHz

dB/100m

6.9

Nominal Attenuation@200MHz

dB/100m

9.0

Nominal Attenuation@300MHz

dB/100m

11.8

Nominal Attenuation@400MHz

dB/100m

13.1

Nominal Attenuation@500MHz

dB/100m

15.4

Nominal Attenuation@900MHz

dB/100m

21.5

Nominal Attenuation@1700MHz

dB/100m

29.4

Capacitance

pF/m

53.5

Velocity of Propagation

%

83

Conductor DCR

Ω/km

21.4

Shield DCR

Ω/km

7.5

Inductance

μH/m

0.32

Time Delay

ns/m

4

Construction Parameters

Cable Code

Nominal Inner
Conductor
Diameter

Nominal
Insulation
Thickness

Nominal
Sheath
Thickness

Nominal
Overall
Diameter

Nominal
Weight



mm

mm

mm

mm

kg/km

FGD RG6 A/U CWB

1.0

1.8

1.2

10.8

181

FGD RG6 A/U SWB

1.0

1.8

1.2

10.8

177

FGD RG6 A/U SWA

1.0

1.8

1.2

11.8

267
