TPE Insulated PUR Sheathed Cables
Application
These cables are used as connecting cables for power supply and, at the same time, as motor control cable. They are used for permanent flexible applications in machineries, machine tools, robot technics, for movable automated machinery parts and multi-shift operation. The adhesion-free PUR outer sheath is characterized by its high impact strength, excellent oil and UV resistance and superior chemical resistance and thus ensures a long cable service life.

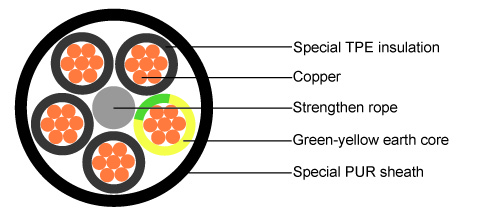

Cable Construction
| Conductor | VDE0295 Class 6 |
| Insulation | Special high-strength TPE mixture |
| Reinforce | Special tensile strengthen rope/core |
| Sheath | Special low viscosity wear resistant PUR mixture |
Technical Properties
- Voltage: 600/1000V
- Test voltage: 3500V/5min(AC)
- Minimum bend radius: Fixed installation: 4xOD.; Moving installation: 7.5xOD
- Temperature range: Fixed installation: -50~90℃; Moving installation: -40~90℃
- Retardant properties: Complied with IEC60332-1
- Maximum mobile speed: Unsupported speed: 8m/s; Gliding speed: 5m/s; Acceleration: 75m/s²
Dimensions and Weight
| No.of Cores | Conductor Cross-Sectional Area | Strands Number and Dia. of Wires | Nominal Dia. of Cable | Max. Dia. of Cable | Approx. Weight |
| mm² | No./mm | mm | mm | kg/km | |
| 1 | 4 | 126/0.20 | 5.2 | 5.7 | 62 |
| 1 | 6 | 189/0.20 | 6.9 | 7.5 | 96 |
| 1 | 10 | 322/0.20 | 8.0 | 8.8 | 145 |
| 1 | 16 | 513/0.20 | 9.5 | 10.4 | 216 |
| 1 | 25 | 798/0.20 | 11.4 | 12.5 | 324 |
| 1 | 35 | 1121/0.20 | 13.1 | 14.4 | 439 |
| 1 | 50 | 703/0.30 | 14.8 | 16.3 | 601 |
| 1 | 70 | 999/0.30 | 17.8 | 19.6 | 840 |
| 1 | 95 | 1332/0.30 | 19.5 | 21.5 | 1090 |
| 1 | 120 | 1702/0.30 | 21.6 | 23.7 | 1368 |
| 1 | 150 | 2109/0.30 | 24.0 | 26.4 | 1690 |
| 1 | 185 | 1443/0.30 | 26.4 | 29.0 | 2049 |
| 4 | 1.5 | 48/0.20 | 9.0 | 9.9 | 129 |
| 4 | 2.5 | 77/0.20 | 10.2 | 11.2 | 178 |
| 4 | 4 | 126/0.20 | 11.6 | 12.8 | 253 |
| 4 | 6 | 189/0.20 | 15.5 | 17.1 | 398 |
| 4 | 10 | 322/0.20 | 18.5 | 20.4 | 604 |
| 4 | 16 | 513/0.20 | 22.1 | 24.3 | 904 |
| 4 | 25 | 798/0.20 | 26.7 | 29.4 | 1353 |
| 4 | 35 | 1121/0.20 | 31.6 | 34.8 | 1878 |
| 4 | 50 | 703/0.30 | 35.7 | 39.2 | 2546 |
