TPEE Insulated PUR Sheathed Cables with Screen, 300/500V
Application
These cables are used as power and control cables or connecting cables. They are suitable for automatic production line, control unit, factory cabling, office equipment, etc.

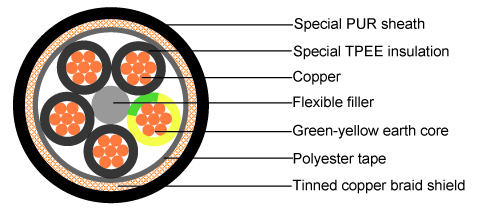

Cable Construction
| Conductor |
VDE0295 Class 6 |
| Insulation |
Special high-strength TPEE mixture |
| Center filler |
Flexible filler |
| Tape |
Polyester tape |
| Screen |
Tinned copper braid shield |
| Sheath |
Special low viscosity wear resistant PUR mixture |
Technical Properties
- Voltage: 300/500V
- Test voltage: 2000V/5min(AC)
-
- Minimum bend radius: Fixed installation: 4xOD
- Temperature range: Fixed installation: -50~90℃
- Retardant properties: Complied with IEC60332-1
Dimensions and Weight
| No.of Cores |
Conductor Cross-Sectional Area |
Strands Number and Dia. of Wires |
Nominal Dia. of Cable |
Max. Dia. of Cable |
Approx. Weight |
| mm² |
No./mm |
mm |
mm |
kg/km |
| 2 |
0.25 |
19/0.13 |
4.5 |
5.3 |
31 |
| 3 |
0.25 |
19/0.13 |
4.6 |
5.4 |
35 |
| 4 |
0.25 |
19/0.13 |
4.9 |
5.7 |
40 |
| 5 |
0.25 |
19/0.13 |
5.2 |
6.0 |
46 |
| 6 |
0.25 |
19/0.13 |
5.5 |
6.3 |
52 |
| 7 |
0.25 |
19/0.13 |
5.5 |
6.3 |
55 |
| 8 |
0.25 |
19/0.13 |
6.0 |
6.8 |
63 |
| 10 |
0.25 |
19/0.13 |
6.7 |
7.5 |
75 |
| 12 |
0.25 |
19/0.13 |
6.9 |
7.7 |
83 |
| 14 |
0.25 |
19/0.13 |
7.2 |
8.0 |
91 |
| 2 |
0.34 |
19/0.15 |
5.1 |
5.9 |
42 |
| 3 |
0.34 |
19/0.15 |
5.3 |
6.1 |
46 |
| 4 |
0.34 |
19/0.15 |
5.8 |
6.6 |
56 |
| 5 |
0.34 |
19/0.15 |
6.2 |
7.0 |
65 |
| 6 |
0.34 |
19/0.15 |
6.6 |
7.4 |
73 |
| 7 |
0.34 |
19/0.15 |
6.6 |
7.4 |
76 |
| 8 |
0.34 |
19/0.15 |
7.0 |
7.8 |
85 |
| 10 |
0.34 |
19/0.15 |
7.9 |
8.8 |
103 |
| 12 |
0.34 |
19/0.15 |
8.1 |
9.0 |
112 |
| 14 |
0.34 |
19/0.15 |
8.6 |
9.5 |
128 |
| 16 |
0.34 |
19/0.15 |
9.0 |
9.9 |
141 |
| 18 |
0.34 |
19/0.15 |
9.4 |
10.3 |
154 |
| 20 |
0.34 |
19/0.15 |
9.7 |
10.7 |
168 |
| 24 |
0.34 |
19/0.15 |
10.6 |
11.7 |
194 |
| 25 |
0.34 |
19/0.15 |
10.8 |
11.9 |
199 |
| 30 |
0.34 |
19/0.15 |
11.4 |
12.5 |
229 |
| 36 |
0.34 |
19/0.15 |
12.1 |
13.3 |
265 |
| 2 |
0.5 |
16/0.20 |
5.5 |
6.3 |
49 |
| 3 |
0.5 |
16/0.20 |
6.0 |
6.8 |
58 |
| 4 |
0.5 |
16/0.20 |
6.4 |
7.2 |
68 |
| 5 |
0.5 |
16/0.20 |
6.8 |
7.6 |
79 |
| 6 |
0.5 |
16/0.20 |
7.3 |
8.1 |
90 |
| 7 |
0.5 |
16/0.20 |
7.3 |
8.1 |
95 |
| 8 |
0.5 |
16/0.20 |
7.7 |
8.6 |
107 |
| 10 |
0.5 |
16/0.20 |
9.0 |
9.9 |
133 |
| 12 |
0.5 |
16/0.20 |
9.2 |
10.1 |
147 |
| 14 |
0.5 |
16/0.20 |
9.6 |
10.6 |
163 |
| 16 |
0.5 |
16/0.20 |
10.0 |
11.0 |
181 |
| 18 |
0.5 |
16/0.20 |
10.5 |
11.6 |
198 |
| 20 |
0.5 |
16/0.20 |
11.2 |
12.3 |
221 |
| 24 |
0.5 |
16/0.20 |
12.2 |
13.4 |
256 |
| 25 |
0.5 |
16/0.20 |
12.5 |
13.7 |
263 |
| 30 |
0.5 |
16/0.20 |
12.8 |
14.1 |
299 |
| 36 |
0.5 |
16/0.20 |
13.9 |
15.3 |
353 |
| 2 |
0.75 |
24/0.20 |
6.2 |
7.0 |
61 |
| 3 |
0.75 |
24/0.20 |
6.4 |
7.2 |
73 |
| 4 |
0.75 |
24/0.20 |
6.9 |
7.7 |
84 |
| 5 |
0.75 |
24/0.20 |
7.4 |
8.2 |
98 |
| 6 |
0.75 |
24/0.20 |
7.9 |
8.7 |
112 |
| 7 |
0.75 |
24/0.20 |
7.9 |
8.7 |
119 |
| 8 |
0.75 |
24/0.20 |
8.6 |
9.5 |
137 |
| 10 |
0.75 |
24/0.20 |
9.8 |
10.8 |
168 |
| 12 |
0.75 |
24/0.20 |
10.1 |
11.1 |
189 |
| 14 |
0.75 |
24/0.20 |
10.5 |
11.6 |
208 |
| 16 |
0.75 |
24/0.20 |
11.2 |
12.4 |
237 |
| 18 |
0.75 |
24/0.20 |
11.8 |
12.9 |
260 |
| 20 |
0.75 |
24/0.20 |
12.3 |
13.5 |
286 |
| 24 |
0.75 |
24/0.20 |
13.5 |
14.8 |
332 |
| 25 |
0.75 |
24/0.20 |
13.9 |
15.3 |
347 |
| 30 |
0.75 |
24/0.20 |
14.4 |
15.8 |
397 |
| 36 |
0.75 |
24/0.20 |
15.4 |
17.0 |
463 |
| 2 |
1 |
32/0.20 |
6.7 |
7.5 |
72 |
| 3 |
1 |
32/0.20 |
7.0 |
7.8 |
87 |
| 4 |
1 |
32/0.20 |
7.5 |
8.4 |
105 |
| 5 |
1 |
32/0.20 |
8.1 |
9.0 |
119 |
| 6 |
1 |
32/0.20 |
8.9 |
9.8 |
141 |
| 7 |
1 |
32/0.20 |
8.9 |
9.8 |
151 |
| 8 |
1 |
32/0.20 |
9.5 |
10.5 |
169 |
| 10 |
1 |
32/0.20 |
10.9 |
12.0 |
207 |
| 12 |
1 |
32/0.20 |
11.4 |
12.5 |
239 |
| 14 |
1 |
32/0.20 |
11.9 |
13.1 |
266 |
| 16 |
1 |
32/0.20 |
12.5 |
13.8 |
296 |
| 18 |
1 |
32/0.20 |
13.1 |
14.4 |
327 |
| 20 |
1 |
32/0.20 |
13.9 |
15.3 |
365 |
| 24 |
1 |
32/0.20 |
15.3 |
16.8 |
425 |
| 25 |
1 |
32/0.20 |
15.6 |
17.2 |
438 |
| 30 |
1 |
32/0.20 |
16.1 |
17.7 |
504 |
| 36 |
1 |
32/0.20 |
17.5 |
19.3 |
596 |
| 2 |
1.5 |
48/0.20 |
7.5 |
8.3 |
91 |
| 3 |
1.5 |
48/0.20 |
7.9 |
8.8 |
112 |
| 4 |
1.5 |
48/0.20 |
8.7 |
9.6 |
140 |
| 5 |
1.5 |
48/0.20 |
9.4 |
10.3 |
161 |
| 6 |
1.5 |
48/0.20 |
10.1 |
11.1 |
188 |
| 7 |
1.5 |
48/0.20 |
10.1 |
11.1 |
201 |
| 8 |
1.5 |
48/0.20 |
10.8 |
11.9 |
226 |
| 10 |
1.5 |
48/0.20 |
12.7 |
14.0 |
285 |
| 12 |
1.5 |
48/0.20 |
13.1 |
14.4 |
324 |
| 14 |
1.5 |
48/0.20 |
13.9 |
15.3 |
368 |
| 16 |
1.5 |
48/0.20 |
14.6 |
16.0 |
411 |
| 18 |
1.5 |
48/0.20 |
15.3 |
16.8 |
456 |
| 20 |
1.5 |
48/0.20 |
16.0 |
17.6 |
498 |
| 24 |
1.5 |
48/0.20 |
17.9 |
19.7 |
592 |
| 25 |
1.5 |
48/0.20 |
18.3 |
20.1 |
610 |
| 30 |
1.5 |
48/0.20 |
19.3 |
21.2 |
735 |
| 36 |
1.5 |
48/0.20 |
20.7 |
22.8 |
861 |
| 2 |
2.5 |
77/0.20 |
8.7 |
9.6 |
122 |
| 3 |
2.5 |
77/0.20 |
9.1 |
10.1 |
153 |
| 4 |
2.5 |
77/0.20 |
9.9 |
10.9 |
190 |
| 5 |
2.5 |
77/0.20 |
10.7 |
11.8 |
20 |
| 6 |
2.5 |
77/0.20 |
11.8 |
13.0 |
262 |
| 7 |
2.5 |
77/0.20 |
11.8 |
13.0 |
285 |
| 8 |
2.5 |
77/0.20 |
12.7 |
13.9 |
321 |
| 10 |
2.5 |
77/0.20 |
14.9 |
16.4 |
403 |
| 12 |
2.5 |
77/0.20 |
15.3 |
16.9 |
458 |
| 14 |
2.5 |
77/0.20 |
16.1 |
17.7 |
525 |
| 16 |
2.5 |
77/0.20 |
17.1 |
18.8 |
590 |
| 18 |
2.5 |
77/0.20 |
18.0 |
19.8 |
656 |
| 20 |
2.5 |
77/0.20 |
19.3 |
21.2 |
748 |
| 24 |
2.5 |
77/0.20 |
21.3 |
23.4 |
879 |
| 25 |
2.5 |
77/0.20 |
21.7 |
23.9 |
907 |
| 30 |
2.5 |
77/0.20 |
22.7 |
25.0 |
1062 |
| 36 |
2.5 |
77/0.20 |
24.4 |
26.8 |
1248 |
