TPE Insulated PUR Sheathed Cables
Application
These cables are used as feeder cables for lifting equipment, especially in high mechanical stress vertical cage occasions.

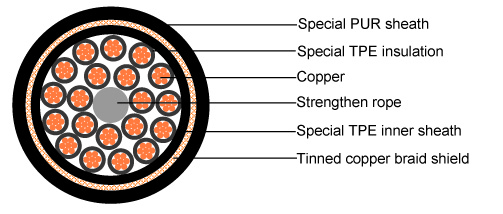

Cable Construction
| Conductor | VDE0295 Class 6 |
| Insulation | pecial high-strength TPE mixture |
| Reinforce | Special tensile strengthen rope/core |
| Inner Sheath | Special high-elastic TPE mixture |
| Screen | Tinned copper braid shield |
| Sheath | Special low viscosity wear resistant PUR mixture |
Technical Properties
- Voltage: 600/1000V
- Test voltage: 3500V/5min(AC)
- Minimum bend radius: Fixed installation: 4xOD.; Moving installation: 10xOD
- Temperature range: Fixed installation: -50~90℃; Moving installation: -40~90℃
- Retardant properties: Complied with IEC60332-1
Dimensions and Weight
Power cables
| No.of Cores | Conductor Cross-Sectional Area | Strands Number and Dia. of Wires | Nominal Dia. of Cable | Max. Dia. of Cable | Approx. Weight | Mechanical Stress |
| mm² | No./mm | mm | mm | kg/km | N | |
| 1 | 10 | 322/0.20 | 9.5 | 10.5 | 162 | 200 |
| 1 | 16 | 513/0.20 | 10.8 | 11.8 | 231 | 250 |
| 1 | 25 | 798/0.20 | 12.8 | 14.1 | 342 | 375 |
| 1 | 35 | 1121/0.20 | 14.5 | 16.0 | 463 | 525 |
| 1 | 50 | 703/0.30 | 16.4 | 18.1 | 624 | 750 |
| 1 | 70 | 999/0.30 | 19.2 | 21.1 | 864 | 1050 |
| 1 | 95 | 1332/0.30 | 20.9 | 23.0 | 1117 | 1425 |
| 1 | 120 | 1702/0.30 | 23.2 | 25.5 | 1407 | 1800 |
| 1 | 150 | 2109/0.30 | 25.6 | 28.1 | 1733 | 2250 |
| 1 | 185 | 1443/0.40 | 28.0 | 30.8 | 2098 | 2775 |
| 4 | 4 | 126/0.20 | 14.7 | 16.1 | 334 | 240 |
| 4 | 6 | 189/0.20 | 17.1 | 18.8 | 469 | 360 |
| 4 | 10 | 322/0.20 | 19.9 | 21.9 | 695 | 600 |
| 4 | 16 | 513/0.20 | 23.3 | 25.6 | 1019 | 960 |
| 4 | 25 | 798/0.20 | 28.3 | 31.2 | 1543 | 1500 |
| 4 | 35 | 1121/0.20 | 32.6 | 35.9 | 2106 | 2100 |
| 5 | 6 | 189/0.20 | 18.5 | 20.4 | 557 | 450 |
| 5 | 10 | 322/0.20 | 21.8 | 24.0 | 841 | 750 |
| 5 | 16 | 513/0.20 | 25.5 | 28.1 | 1238 | 1200 |
| 5 | 25 | 798/0.20 | 31.1 | 34.2 | 1876 | 1875 |
Control cables
| No.of Cores | Conductor Cross-Sectional Area | Strands Number and Dia. of Wires | Nominal Dia. of Cable | Max. Dia. of Cable | Approx. Weight | Mechanical Stress |
| mm² | No./mm | mm | mm | kg/km | N | |
| 4 | 1.5 | 48/0.20 |
12.0 | 13.2 | 190 | 90 |
| 7 | 1.5 | 48/0.20 |
14.9 | 16.4 | 273 | 157 |
| 12 | 1.5 | 48/0.20 |
17.9 | 19.6 | 406 | 270 |
| 18 | 1.5 | 48/0.20 |
20.6 | 22.7 | 567 | 405 |
| 24 | 1.5 | 48/0.20 |
24.5 | 26.9 | 765 | 540 |
| 30 | 1.5 | 48/0.20 |
25.4 | 28.0 | 887 | 675 |
| 36 | 1.5 | 48/0.20 |
27.4 | 30.1 | 1045 | 810 |
| 4 | 2.5 | 77/0.20 | 13.2 | 14.6 | 246 | 150 |
| 7 | 2.5 | 77/0.20 | 17.0 | 18.6 | 372 | 262 |
| 12 | 2.5 | 77/0.20 | 20.1 | 22.2 | 553 | 450 |
| 18 | 2.5 | 77/0.20 | 23.5 | 25.9 | 794 | 650 |
| 24 | 2.5 | 77/0.20 | 28.1 | 31.0 | 1076 | 900 |
| 30 | 2.5 | 77/0.20 | 29.0 | 32.0 | 1246 | 1125 |
| 36 | 2.5 | 77/0.20 | 31.3 | 34.4 | 1472 | 1350 |
