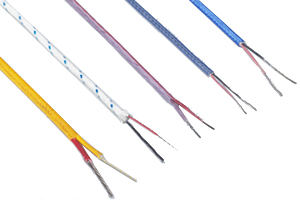

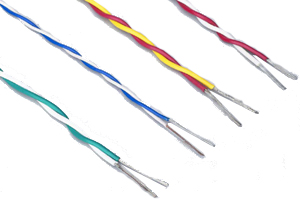

FEP Insulated Thermocouple Wire and Extension Wire

Product application

FEP Insulated Thermocouple Wire may be used for general use extension wire for thermocouples

Construction

• Solid or stranded thermocouple wire
• Flame retardant extruded fluoropolymer FEP insulation
• Parallel conductors
• Flame retardant extruded fluoropolymer FEP jacket

Technical

• Maximum temp up to +200o C, continuous 250°C
• Minimum Bend Radius: insulation 3 x cable O
• Overall 5 x cable O
• Limits of Error: Conforms to ASTM E230, IEC 584, and ANSI MC 96.1
• Color Code: Conforms to ANSI, IEC, JIS

Properties

• Excellent abrasion, chemical and moisture resistance
• Service temperature of 200 o C
• Low friction factor when pulled
• Flame retardant; non-propagating in fire conditions

Product specification

Type K Thermocouple Wire

Chromel/Alumel Thermocouple Wire Type K

AWG	Conductor Cross Section mm^2	Nominal Thickness mm			Gross Weight kg/km
		Insulation	Jacket	O.D.
30	0.05	0.1	0.15	0.76/1.21	3
24	0.2	0.2	0.25	1.42/2.33	9
24	0.2	0.2	0.25	0.15/2.54	10
20	0.5	0.2	0.25	1.73/2.95	18
20	0.5	0.2	0.25	1.88/3.25	19
16	1.5	0.2	0.25	2.21/3.91	36



Type K Thermocouple Wire - Extension Grade

Chromel/Alumel Extension Grade Thermocouple Wire Type K

AWG	Conductor Cross Section mm^2	Nominal Thickness mm			Gross Weight kg/km
		Insulation	Jacket	O.D.
30	0.05	0.1	0.15	0.76/1.21	3
24	0.2	0.2	0.25	1.42/2.33	9
24	0.2	0.2	0.25	0.15/2.54	10
20	0.5	0.2	0.25	1.73/2.95	18
20	0.5	0.2	0.25	1.88/3.25	19
16	1.5	0.2	0.25	2.21/3.91	36



Type J Thermocouple Wire

Iron/Constantan Thermocouple Wire Type J

AWG	Conductor Cross Section mm^2	Nominal Thickness mm			Gross Weight kg/km
		Insulation	Jacket	O.D.
30	0.05	0.1	0.15	0.76/1.21	3
24	0.2	0.2	0.25	1.42/2.33	9
24	0.2	0.2	0.25	0.15/2.54	10
20	0.5	0.2	0.25	1.73/2.95	18
20	0.5	0.2	0.25	1.88/3.25	19
16	1.5	0.2	0.25	2.21/3.91	36



Type J Thermocouple Wire - Extension Grade

Iron/Constantan Extension Grade Thermocouple Wire Type J

AWG	Conductor Cross Section mm^2	Nominal Thickness mm			Gross Weight kg/km
		Insulation	Jacket	O.D.
30	0.05	0.1	0.15	0.76/1.21	3
24	0.2	0.2	0.25	1.42/2.33	9
24	0.2	0.2	0.25	0.15/2.54	10
20	0.5	0.2	0.25	1.73/2.95	18
20	0.5	0.2	0.25	1.88/3.25	19
16	1.5	0.2	0.25	2.21/3.91	36



Type T Thermocouple Wire

Copper/Constantan Thermocouple Wire Type T

AWG	Conductor Cross Section mm^2	Nominal Thickness mm			Gross Weight kg/km
		Insulation	Jacket	O.D.
30	0.05	0.1	0.15	0.76/1.21	3
24	0.2	0.2	0.25	1.42/2.33	9
24	0.2	0.2	0.25	0.15/2.54	10
20	0.5	0.2	0.25	1.73/2.95	18
20	0.5	0.2	0.25	1.88/3.25	19
16	1.5	0.2	0.25	2.21/3.91	36



Type T Thermocouple Wire - Extension Grade

Copper/Constantan Extension Grade Thermocouple Wire Type T

AWG	Conductor Cross Section mm^2	Nominal Thickness mm			Gross Weight kg/km
		Insulation	Jacket	O.D.
30	0.05	0.1	0.15	0.76/1.21	3
24	0.2	0.2	0.25	1.42/2.33	9
24	0.2	0.2	0.25	0.15/2.54	10
20	0.5	0.2	0.25	1.73/2.95	18
20	0.5	0.2	0.25	1.88/3.25	19
16	1.5	0.2	0.25	2.21/3.91	36



Type E Thermocouple Wire

Chromel/Constantan Thermocouple Wire Type E

AWG	Conductor Cross Section mm^2	Nominal Thickness mm			Gross Weight kg/km
		Insulation	Jacket	O.D.
30	0.05	0.1	0.15	0.76/1.21	3
24	0.2	0.2	0.25	1.42/2.33	9
24	0.2	0.2	0.25	0.15/2.54	10
20	0.5	0.2	0.25	1.73/2.95	18
20	0.5	0.2	0.25	1.88/3.25	19
16	1.5	0.2	0.25	2.21/3.91	36



Type E Thermocouple Wire - Extension Grade

Chromel/Constantan Extension Grade Thermocouple Wire Type E

AWG	Conductor Cross Section mm^2	Nominal Thickness mm			Gross Weight kg/km
		Insulation	Jacket	O.D.
30	0.05	0.1	0.15	0.76/1.21	3
24	0.2	0.2	0.25	1.42/2.33	9
24	0.2	0.2	0.25	0.15/2.54	10
20	0.5	0.2	0.25	1.73/2.95	18
20	0.5	0.2	0.25	1.88/3.25	19
16	1.5	0.2	0.25	2.21/3.91	36



Type N Thermocouple Wire

Nicrosil/Nisil Thermocouple Wire Type N

AWG	Conductor Cross Section mm^2	Nominal Thickness mm			Gross Weight kg/km
		Insulation	Jacket	O.D.
30	0.05	0.1	0.15	0.76/1.21	3
24	0.2	0.2	0.25	1.42/2.33	9
24	0.2	0.2	0.25	0.15/2.54	10
20	0.5	0.2	0.25	1.73/2.95	18
20	0.5	0.2	0.25	1.88/3.25	19
16	1.5	0.2	0.25	2.21/3.91	36



Type N Thermocouple Wire - Extension Grade

Nicrosil/Nisil Extension Grade Thermocouple Wire Type N

AWG	Conductor Cross Section mm^2	Nominal Thickness mm			Gross Weight kg/km
		Insulation	Jacket	O.D.
30	0.05	0.1	0.15	0.76/1.21	3
24	0.2	0.2	0.25	1.42/2.33	9
24	0.2	0.2	0.25	0.15/2.54	10
20	0.5	0.2	0.25	1.73/2.95	18
20	0.5	0.2	0.25	1.88/3.25	19
16	1.5	0.2	0.25	2.21/3.91	36
