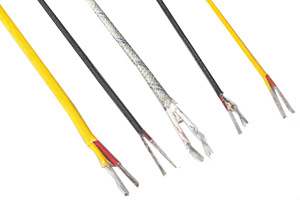

Fiberglass Insulated Thermocouple Wire and Extension Wire

Product application

Fiberglass Thermocouple Wire is ideal for general applications requiring moderate abrasion, moisture resistance, and wide temperature capabilities

Construction

  • Solid or stranded thermocouple wire
  • Braided fiberglass insulation
  • Parallel conductors
  • Tinned Copper
  • Braided fiberglass jacket

Technical

  • Continuous temperature rating: 400°C
  • Minimum Bend Radius: insulation 3 x cable O
  • Limits of Error: Conforms to ASTM E230, IEC 584, and ANSI MC 96.1
  • Color Code: Conforms to ANSI, IEC, JIS

Properties

  • Good thermal durability and tensile strength
  • Service temperature up to 400°C
  • Good dielectric and electrical characteristics
  • Braided fiberglass insulation for abrasion resistance
  • Braided fiberglass jacket for additional flexibility and abrasion resistance

Product specification

Fiberglass Type K Thermocouple Wire

Chromel/Alumel Fiberglass Thermocouple Wire Type K

AWG Nominal Conductor Diameter mm Nominal Thickness mm Gross Weight kg/km
Insulation Jacket O.D.
14 1.63 0.18 0.25 2.5 x 4.6 43
16 1.29 0.18 0.25 2.2 x 3.8 30
16S* 1.47 0.18 0.25 2.4 x 4.3 33
18 1.02 0.18 0.25 1.8 x 3.2 19
20 0.81 0.15 0.15 1.4 x 2.5 11
20S* 0.97 0.15 0.15 1.5 x 2.7 12
22 0.64 0.15 0.15 1.2 x 2.2 8
24 0.51 0.15 0.15 1.0 x 1.7 4.8
24S* 0.61 0.15 0.15 1.2 x 2.1 5.1
26 0.41 0.11 0.15 0.9 x 1.5 3.3
28 0.32 0.11 0.15 0.8 x 1.4 2.5
30 0.25 0.11 0.15 0.8 x 1.2 1.9



Fiberglass Type K Thermocouple Wire Extension Grade

Chromel/Alumel Fiberglass Thermocouple Wire Type K

AWG Nominal Conductor Diameter mm Nominal Thickness mm Gross Weight kg/km
Insulation Jacket O.D.
14 1.63 0.18 0.25 2.5 x 4.6 43
16 1.29 0.18 0.25 2.2 x 3.8 30
16S* 1.47 0.18 0.25 2.4 x 4.3 33
18 1.02 0.18 0.25 1.8 x 3.2 19
20 0.81 0.15 0.15 1.4 x 2.5 11
20S* 0.97 0.15 0.15 1.5 x 2.7 12
22 0.64 0.15 0.15 1.2 x 2.2 8
24 0.51 0.15 0.15 1.0 x 1.7 4.8
24S* 0.61 0.15 0.15 1.2 x 2.1 5.1
26 0.41 0.11 0.15 0.9 x 1.5 3.3
28 0.32 0.11 0.15 0.8 x 1.4 2.5
30 0.25 0.11 0.15 0.8 x 1.2 1.9



Fiberglass Type J Thermocouple Wire

Iron/Constantan Fiberglass Thermocouple Wire Type J

AWG Nominal Conductor Diameter mm Nominal Thickness mm Gross Weight kg/km
Insulation Jacket O.D.
14 1.63 0.18 0.25 2.5 x 4.6 43
16 1.29 0.18 0.25 2.2 x 3.8 30
16S* 1.47 0.18 0.25 2.4 x 4.3 33
18 1.02 0.18 0.25 1.8 x 3.2 19
20 0.81 0.15 0.15 1.4 x 2.5 11
20S* 0.97 0.15 0.15 1.5 x 2.7 12
22 0.64 0.15 0.15 1.2 x 2.2 8
24 0.51 0.15 0.15 1.0 x 1.7 4.8
24S* 0.61 0.15 0.15 1.2 x 2.1 5.1
26 0.41 0.11 0.15 0.9 x 1.5 3.3
28 0.32 0.11 0.15 0.8 x 1.4 2.5
30 0.25 0.11 0.15 0.8 x 1.2 1.9



Fiberglass Type J Thermocouple Wire Extension Grade

Iron/Constantan Fiberglass Thermocouple Wire Type J

AWG Nominal Conductor Diameter mm Nominal Thickness mm Gross Weight kg/km
Insulation Jacket O.D.
14 1.63 0.18 0.25 2.5 x 4.6 43
16 1.29 0.18 0.25 2.2 x 3.8 30
16S* 1.47 0.18 0.25 2.4 x 4.3 33
18 1.02 0.18 0.25 1.8 x 3.2 19
20 0.81 0.15 0.15 1.4 x 2.5 11
20S* 0.97 0.15 0.15 1.5 x 2.7 12
22 0.64 0.15 0.15 1.2 x 2.2 8
24 0.51 0.15 0.15 1.0 x 1.7 4.8
24S* 0.61 0.15 0.15 1.2 x 2.1 5.1
26 0.41 0.11 0.15 0.9 x 1.5 3.3
28 0.32 0.11 0.15 0.8 x 1.4 2.5
30 0.25 0.11 0.15 0.8 x 1.2 1.9



Fiberglass Type T Thermocouple Wire

Copper/Constantan Fiberglass Thermocouple Wire Type T

AWG Nominal Conductor Diameter mm Nominal Thickness mm Gross Weight kg/km
Insulation Jacket O.D.
14 1.63 0.18 0.25 2.5 x 4.6 43
16 1.29 0.18 0.25 2.2 x 3.8 30
16S* 1.47 0.18 0.25 2.4 x 4.3 33
18 1.02 0.18 0.25 1.8 x 3.2 19
20 0.81 0.15 0.15 1.4 x 2.5 11
20S* 0.97 0.15 0.15 1.5 x 2.7 12
22 0.64 0.15 0.15 1.2 x 2.2 8
24 0.51 0.15 0.15 1.0 x 1.7 4.8
24S* 0.61 0.15 0.15 1.2 x 2.1 5.1
26 0.41 0.11 0.15 0.9 x 1.5 3.3
28 0.32 0.11 0.15 0.8 x 1.4 2.5
30 0.25 0.11 0.15 0.8 x 1.2 1.9



Fiberglass Type T Thermocouple Wire Extension Grade

Copper/Constantan Fiberglass Thermocouple Wire Type T

AWG Nominal Conductor Diameter mm Nominal Thickness mm Gross Weight kg/km
Insulation Jacket O.D.
14 1.63 0.18 0.25 2.5 x 4.6 43
16 1.29 0.18 0.25 2.2 x 3.8 30
16S* 1.47 0.18 0.25 2.4 x 4.3 33
18 1.02 0.18 0.25 1.8 x 3.2 19
20 0.81 0.15 0.15 1.4 x 2.5 11
20S* 0.97 0.15 0.15 1.5 x 2.7 12
22 0.64 0.15 0.15 1.2 x 2.2 8
24 0.51 0.15 0.15 1.0 x 1.7 4.8
24S* 0.61 0.15 0.15 1.2 x 2.1 5.1
26 0.41 0.11 0.15 0.9 x 1.5 3.3
28 0.32 0.11 0.15 0.8 x 1.4 2.5
30 0.25 0.11 0.15 0.8 x 1.2 1.9



Fiberglass Type E Thermocouple Wire

Chromel/Constantan Fiberglass Thermocouple Wire Type E

AWG Nominal Conductor Diameter mm Nominal Thickness mm Gross Weight kg/km
Insulation Jacket O.D.
14 1.63 0.18 0.25 2.5 x 4.6 43
16 1.29 0.18 0.25 2.2 x 3.8 30
16S* 1.47 0.18 0.25 2.4 x 4.3 33
18 1.02 0.18 0.25 1.8 x 3.2 19
20 0.81 0.15 0.15 1.4 x 2.5 11
20S* 0.97 0.15 0.15 1.5 x 2.7 12
22 0.64 0.15 0.15 1.2 x 2.2 8
24 0.51 0.15 0.15 1.0 x 1.7 4.8
24S* 0.61 0.15 0.15 1.2 x 2.1 5.1
26 0.41 0.11 0.15 0.9 x 1.5 3.3
28 0.32 0.11 0.15 0.8 x 1.4 2.5
30 0.25 0.11 0.15 0.8 x 1.2 1.9



Fiberglass Type E Thermocouple Wire Extension Grade

Chromel/Constantan Fiberglass Thermocouple Wire Type E

AWG Nominal Conductor Diameter mm Nominal Thickness mm Gross Weight kg/km
Insulation Jacket O.D.
14 1.63 0.18 0.25 2.5 x 4.6 43
16 1.29 0.18 0.25 2.2 x 3.8 30
16S* 1.47 0.18 0.25 2.4 x 4.3 33
18 1.02 0.18 0.25 1.8 x 3.2 19
20 0.81 0.15 0.15 1.4 x 2.5 11
20S* 0.97 0.15 0.15 1.5 x 2.7 12
22 0.64 0.15 0.15 1.2 x 2.2 8
24 0.51 0.15 0.15 1.0 x 1.7 4.8
24S* 0.61 0.15 0.15 1.2 x 2.1 5.1
26 0.41 0.11 0.15 0.9 x 1.5 3.3
28 0.32 0.11 0.15 0.8 x 1.4 2.5
30 0.25 0.11 0.15 0.8 x 1.2 1.9



Fiberglass Type N Thermocouple Wire

Nicrosil/Nisil Fiberglass Thermocouple Wire Type N

AWG Nominal Conductor Diameter mm Nominal Thickness mm Gross Weight kg/km
Insulation Jacket O.D.
14 1.63 0.18 0.25 2.5 x 4.6 43
16 1.29 0.18 0.25 2.2 x 3.8 30
16S* 1.47 0.18 0.25 2.4 x 4.3 33
18 1.02 0.18 0.25 1.8 x 3.2 19
20 0.81 0.15 0.15 1.4 x 2.5 11
20S* 0.97 0.15 0.15 1.5 x 2.7 12
22 0.64 0.15 0.15 1.2 x 2.2 8
24 0.51 0.15 0.15 1.0 x 1.7 4.8
24S* 0.61 0.15 0.15 1.2 x 2.1 5.1
26 0.41 0.11 0.15 0.9 x 1.5 3.3
28 0.32 0.11 0.15 0.8 x 1.4 2.5
30 0.25 0.11 0.15 0.8 x 1.2 1.9



Fiberglass Type N Thermocouple Wire Extension Grade

Nicrosil/Nisil Fiberglass Thermocouple Wire Type N

AWG Nominal Conductor Diameter mm Nominal Thickness mm Gross Weight kg/km
Insulation Jacket O.D.
14 1.63 0.18 0.25 2.5 x 4.6 43
16 1.29 0.18 0.25 2.2 x 3.8 30
16S* 1.47 0.18 0.25 2.4 x 4.3 33
18 1.02 0.18 0.25 1.8 x 3.2 19
20 0.81 0.15 0.15 1.4 x 2.5 11
20S* 0.97 0.15 0.15 1.5 x 2.7 12
22 0.64 0.15 0.15 1.2 x 2.2 8
24 0.51 0.15 0.15 1.0 x 1.7 4.8
24S* 0.61 0.15 0.15 1.2 x 2.1 5.1
26 0.41 0.11 0.15 0.9 x 1.5 3.3
28 0.32 0.11 0.15 0.8 x 1.4 2.5
30 0.25 0.11 0.15 0.8 x 1.2 1.9
