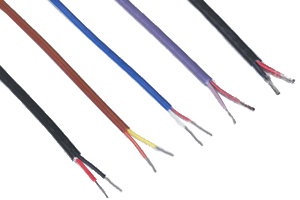

PFA Insulated Thermocouple Wire and Extension Wire

Product application

PFA Thermocouple Wire may be used for general use extension wire.

Construction

Solid or stranded thermocouple wire
Flame retardant extruded fluoropolymer PFA insulation
Parallel conductors
Flame retardant extruded fluoropolymer PFA jacket
Tinned Copper

Technical

Continuous temperature rating:260°C
Minimum Bend Radius: insulation 3 x cable O overall 5 x cable O
Limits of Error: Conforms to ASTM E230, IEC 584, and ANSI MC 96.1
Color Code: Conforms to ANSI, IEC, JIS

Properties

Excellent abrasion, chemical and moisture resistance
Service temperature of 260 o C
Low friction factor when pulled

Product specification

PFA-Insulated Type J Thermocouple Wire

Iron/Constantan PFA Thermocouple Wire 260°C

AWG	Nominal Conductor Diameter mm	Nominal Thickness mm			Gross Weight kg/km
AWG	Nominal Conductor Diameter mm	Insulation	Jacket	O.D.	Gross Weight kg/km
14	1.63	0.2	0.25	2.6 x 4.8	51
16	1.29	0.2	0.25	2.2 x 3.9	33
16S*	1.47	0.2	0.25	2.4 x 4.3	36
18	1.02	0.2	0.25	1.9 x 3.4	22
20	0.81	0.2	0.15	1.7 x 2.9	16
20S*	0.97	0.2	0.15	1.8 x 3.1	18
22	0.64	0.2	0.15	1.5 x 2.6	11
24	0.51	0.2	0.15	1.4 x 2.3	8.5
24S*	0.61	0.2	0.15	1.6 x 2.7	9.2
26	0.41	0.2	0.15	1.3 x 2.1	6.5
28	0.32	0.2	0.15	1.2 x 2.0	5.5
30	0.25	0.2	0.15	1.2 x 1.8	4.5

PFA-Insulated Type J Thermocouple Wire - Extension Grade

Iron/Constantan PFA Thermocouple Wire 260°C - Extension Grade

AWG	Nominal Conductor Diameter mm	Nominal Thickness mm			Gross Weight kg/km
AWG	Nominal Conductor Diameter mm	Insulation	Jacket	O.D.	Gross Weight kg/km
14	1.63	0.2	0.25	2.6 x 4.8	51
16	1.29	0.2	0.25	2.2 x 3.9	33
16S*	1.47	0.2	0.25	2.4 x 4.3	36
18	1.02	0.2	0.25	1.9 x 3.4	22
20	0.81	0.2	0.15	1.7 x 2.9	16
20S*	0.97	0.2	0.15	1.8 x 3.1	18
22	0.64	0.2	0.15	1.5 x 2.6	11
24	0.51	0.2	0.15	1.4 x 2.3	8.5
24S*	0.61	0.2	0.15	1.6 x 2.7	9.2
26	0.41	0.2	0.15	1.3 x 2.1	6.5
28	0.32	0.2	0.15	1.2 x 2.0	5.5
30	0.25	0.2	0.15	1.2 x 1.8	4.5

PFA-Insulated Type K Thermocouple Wire

Chromel/Alumel PFA Thermocouple Wire260°C

AWG	Nominal Conductor Diameter mm	Nominal Thickness mm			Gross Weight kg/km
AWG	Nominal Conductor Diameter mm	Insulation	Jacket	O.D.	Gross Weight kg/km
14	1.63	0.2	0.25	2.6 x 4.8	51
16	1.29	0.2	0.25	2.2 x 3.9	33
16S*	1.47	0.2	0.25	2.4 x 4.3	36
18	1.02	0.2	0.25	1.9 x 3.4	22
20	0.81	0.2	0.15	1.7 x 2.9	16
20S*	0.97	0.2	0.15	1.8 x 3.1	18
22	0.64	0.2	0.15	1.5 x 2.6	11
24	0.51	0.2	0.15	1.4 x 2.3	8.5
24S*	0.61	0.2	0.15	1.6 x 2.7	9.2
26	0.41	0.2	0.15	1.3 x 2.1	6.5
28	0.32	0.2	0.15	1.2 x 2.0	5.5
30	0.25	0.2	0.15	1.2 x 1.8	4.5

PFA-Insulated Type K Thermocouple Wire - Extension Grade

Chromel/Alumel PFA Thermocouple Wire 260°C - Extension Grade

AWG	Nominal Conductor Diameter mm	Nominal Thickness mm			Gross Weight kg/km
AWG	Nominal Conductor Diameter mm	Insulation	Jacket	O.D.	Gross Weight kg/km
14	1.63	0.2	0.25	2.6 x 4.8	51
16	1.29	0.2	0.25	2.2 x 3.9	33
16S*	1.47	0.2	0.25	2.4 x 4.3	36
18	1.02	0.2	0.25	1.9 x 3.4	22
20	0.81	0.2	0.15	1.7 x 2.9	16
20S*	0.97	0.2	0.15	1.8 x 3.1	18
22	0.64	0.2	0.15	1.5 x 2.6	11
24	0.51	0.2	0.15	1.4 x 2.3	8.5
24S*	0.61	0.2	0.15	1.6 x 2.7	9.2
26	0.41	0.2	0.15	1.3 x 2.1	6.5
28	0.32	0.2	0.15	1.2 x 2.0	5.5
30	0.25	0.2	0.15	1.2 x 1.8	4.5

PFA-Insulated Type T Thermocouple Wire

Copper/Constantan PFA Thermocouple Wire 260°C

AWG	Nominal Conductor Diameter mm	Nominal Thickness mm			Gross Weight kg/km
AWG	Nominal Conductor Diameter mm	Insulation	Jacket	O.D.	Gross Weight kg/km
14	1.63	0.2	0.25	2.6 x 4.8	51
16	1.29	0.2	0.25	2.2 x 3.9	33
16S*	1.47	0.2	0.25	2.4 x 4.3	36
18	1.02	0.2	0.25	1.9 x 3.4	22
20	0.81	0.2	0.15	1.7 x 2.9	16
20S*	0.97	0.2	0.15	1.8 x 3.1	18
22	0.64	0.2	0.15	1.5 x 2.6	11
24	0.51	0.2	0.15	1.4 x 2.3	8.5
24S*	0.61	0.2	0.15	1.6 x 2.7	9.2
26	0.41	0.2	0.15	1.3 x 2.1	6.5
28	0.32	0.2	0.15	1.2 x 2.0	5.5
30	0.25	0.2	0.15	1.2 x 1.8	4.5

PFA-Insulated Type T Thermocouple Wire - Extension Grade

Copper/Constantan PFA Thermocouple Wire 260°C - Extension Grade

AWG	Nominal Conductor Diameter mm	Nominal Thickness mm			Gross Weight kg/km
AWG	Nominal Conductor Diameter mm	Insulation	Jacket	O.D.	Gross Weight kg/km
14	1.63	0.2	0.25	2.6 x 4.8	51
16	1.29	0.2	0.25	2.2 x 3.9	33
16S*	1.47	0.2	0.25	2.4 x 4.3	36
18	1.02	0.2	0.25	1.9 x 3.4	22
20	0.81	0.2	0.15	1.7 x 2.9	16
20S*	0.97	0.2	0.15	1.8 x 3.1	18
22	0.64	0.2	0.15	1.5 x 2.6	11
24	0.51	0.2	0.15	1.4 x 2.3	8.5
24S*	0.61	0.2	0.15	1.6 x 2.7	9.2
26	0.41	0.2	0.15	1.3 x 2.1	6.5
28	0.32	0.2	0.15	1.2 x 2.0	5.5
30	0.25	0.2	0.15	1.2 x 1.8	4.5

PFA-Insulated Type E Thermocouple Wire

Chromel/Constantan PFA Thermocouple Wire 260°C

AWG	Nominal Conductor Diameter mm	Nominal Thickness mm			Gross Weight kg/km
AWG	Nominal Conductor Diameter mm	Insulation	Jacket	O.D.	Gross Weight kg/km
14	1.63	0.2	0.25	2.6 x 4.8	51
16	1.29	0.2	0.25	2.2 x 3.9	33
16S*	1.47	0.2	0.25	2.4 x 4.3	36
18	1.02	0.2	0.25	1.9 x 3.4	22
20	0.81	0.2	0.15	1.7 x 2.9	16
20S*	0.97	0.2	0.15	1.8 x 3.1	18
22	0.64	0.2	0.15	1.5 x 2.6	11
24	0.51	0.2	0.15	1.4 x 2.3	8.5
24S*	0.61	0.2	0.15	1.6 x 2.7	9.2
26	0.41	0.2	0.15	1.3 x 2.1	6.5
28	0.32	0.2	0.15	1.2 x 2.0	5.5
30	0.25	0.2	0.15	1.2 x 1.8	4.5

PFA-Insulated Type E Thermocouple Wire - Extension Grade

Chromel/Constantan PFA Thermocouple Wire 260°C - Extension Grade

AWG	Nominal Conductor Diameter mm	Nominal Thickness mm			Gross Weight kg/km
AWG	Nominal Conductor Diameter mm	Insulation	Jacket	O.D.	Gross Weight kg/km
14	1.63	0.2	0.25	2.6 x 4.8	51
16	1.29	0.2	0.25	2.2 x 3.9	33
16S*	1.47	0.2	0.25	2.4 x 4.3	36
18	1.02	0.2	0.25	1.9 x 3.4	22
20	0.81	0.2	0.15	1.7 x 2.9	16
20S*	0.97	0.2	0.15	1.8 x 3.1	18
22	0.64	0.2	0.15	1.5 x 2.6	11
24	0.51	0.2	0.15	1.4 x 2.3	8.5
24S*	0.61	0.2	0.15	1.6 x 2.7	9.2
26	0.41	0.2	0.15	1.3 x 2.1	6.5
28	0.32	0.2	0.15	1.2 x 2.0	5.5
30	0.25	0.2	0.15	1.2 x 1.8	4.5

PFA-Insulated Type N Thermocouple Wire

Nicrosil/Nisil PFA Thermocouple Wire 260°C

AWG	Nominal Conductor Diameter mm	Nominal Thickness mm			Gross Weight kg/km
AWG	Nominal Conductor Diameter mm	Insulation	Jacket	O.D.	Gross Weight kg/km
14	1.63	0.2	0.25	2.6 x 4.8	51
16	1.29	0.2	0.25	2.2 x 3.9	33
16S*	1.47	0.2	0.25	2.4 x 4.3	36
18	1.02	0.2	0.25	1.9 x 3.4	22
20	0.81	0.2	0.15	1.7 x 2.9	16
20S*	0.97	0.2	0.15	1.8 x 3.1	18
22	0.64	0.2	0.15	1.5 x 2.6	11
24	0.51	0.2	0.15	1.4 x 2.3	8.5
24S*	0.61	0.2	0.15	1.6 x 2.7	9.2
26	0.41	0.2	0.15	1.3 x 2.1	6.5
28	0.32	0.2	0.15	1.2 x 2.0	5.5
30	0.25	0.2	0.15	1.2 x 1.8	4.5

PFA-Insulated Type N Thermocouple Wire - Extension Grade

Nicrosil/Nisil PFA Thermocouple Wire 260°C - Extension Grade

AWG	Nominal Conductor Diameter mm	Nominal Thickness mm			Gross Weight kg/km
AWG	Nominal Conductor Diameter mm	Insulation	Jacket	O.D.	Gross Weight kg/km
14	1.63	0.2	0.25	2.6 x 4.8	51
16	1.29	0.2	0.25	2.2 x 3.9	33
16S*	1.47	0.2	0.25	2.4 x 4.3	36
18	1.02	0.2	0.25	1.9 x 3.4	22
20	0.81	0.2	0.15	1.7 x 2.9	16
20S*	0.97	0.2	0.15	1.8 x 3.1	18
22	0.64	0.2	0.15	1.5 x 2.6	11
24	0.51	0.2	0.15	1.4 x 2.3	8.5
24S*	0.61	0.2	0.15	1.6 x 2.7	9.2
26	0.41	0.2	0.15	1.3 x 2.1	6.5
28	0.32	0.2	0.15	1.2 x 2.0	5.5
30	0.25	0.2	0.15	1.2 x 1.8	4.5
