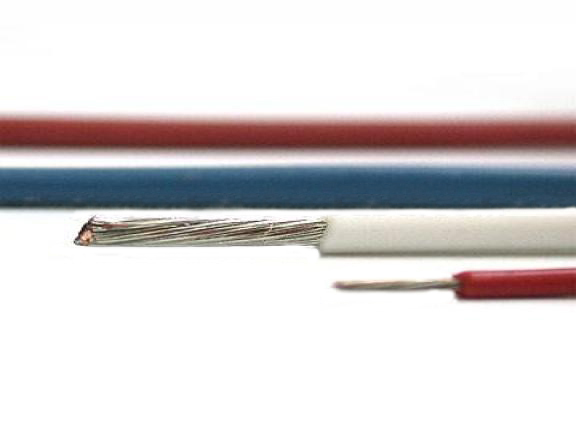

TFE Insulated Thermocouple Wire and Extension Wire
Product application
TFE Thermocouple Wire may be used for aircraft and petroleum processing.
Construction
- Solid or stranded thermocouple wire
- Fused TFE tape insulation
- Parallel conductors
- Flame retardant extruded fluoropolymer TFE jacket
Technical
- Continuous temperature rating:260°C
- Minimum Bend Radius: insulation 3 x cable O
- Limits of Error: Conforms to ASTM E230, IEC 584, and ANSI MC 96.1
- Color Code: Conforms to ANSI, IEC, JIS
Properties
- Excellent abrasion, chemical and moisture resistance
- Service temperature of 260 o C
- Low friction factor when pulled
- Flame retardant; non-propagating in fire conditions
Product specification
TFE Insulated Type J Thermocouple Wire
Iron/Constantan TFE Thermocouple Wire 260°C
| AWG | Nominal Conductor Diameter mm | Nominal Thickness mm | Gross Weight kg/km | ||
| Insulation | Jacket | O.D. | |||
| 26 | 0.406 | 0.152 | 0.203 | 1.12*1.83 | 6 |
| 24 | 0.508 | 0.152 | 0.203 | 1.19*1.95 | 7.5 |
| 24S*(7/32) | 0.61 | 0.152 | 0.203 | 1.24*2.13 | 8.9 |
| 20 | 0.813 | 0.152 | 0.203 | 1.55*2.69 | 16.4 |
| 20S*(7/28) | 0.965 | 0.152 | 0.203 | 1.63*2.84 | 17.9 |
| 18 | 1.02 | 0.152 | 0.203 | 1.73*3.05 | 23.8 |
| 18S*(7/26) | 1.22 | 0.152 | 0.203 | 1.93*3.45 | 26.8 |
| 16 | 1.29 | 0.254 | 0.203 | 2.21*4.01 | 37.3 |
| 16S*(7/24) | 1.52 | 0.254 | 0.203 | 2.44*4.47 | 40.2 |
TFE Insulated Extension Grade Type JX Thermocouple Wire
Iron/Constantan TFE Thermocouple Wire 260°C - Extension Grade
| AWG | Nominal Conductor Diameter mm | Nominal Thickness mm | Gross Weight kg/km | ||
| Insulation | Jacket | O.D. | |||
| 26 | 0.406 | 0.152 | 0.203 | 1.12*1.83 | 6 |
| 24 | 0.508 | 0.152 | 0.203 | 1.19*1.95 | 7.5 |
| 24S*(7/32) | 0.61 | 0.152 | 0.203 | 1.24*2.13 | 8.9 |
| 20 | 0.813 | 0.152 | 0.203 | 1.55*2.69 | 16.4 |
| 20S*(7/28) | 0.965 | 0.152 | 0.203 | 1.63*2.84 | 17.9 |
| 18 | 1.02 | 0.152 | 0.203 | 1.73*3.05 | 23.8 |
| 18S*(7/26) | 1.22 | 0.152 | 0.203 | 1.93*3.45 | 26.8 |
| 16 | 1.29 | 0.254 | 0.203 | 2.21*4.01 | 37.3 |
| 16S*(7/24) | 1.52 | 0.254 | 0.203 | 2.44*4.47 | 40.2 |
TFE Insulated Type K Thermocouple Wire
Chromel/Alumel TFE Thermocouple Wire 260°C
| AWG | Nominal Conductor Diameter mm | Nominal Thickness mm | Gross Weight kg/km | ||
| Insulation | Jacket | O.D. | |||
| 26 | 0.406 | 0.152 | 0.203 | 1.12*1.83 | 6 |
| 24 | 0.508 | 0.152 | 0.203 | 1.19*1.95 | 7.5 |
| 24S*(7/32) | 0.61 | 0.152 | 0.203 | 1.24*2.13 | 8.9 |
| 20 | 0.813 | 0.152 | 0.203 | 1.55*2.69 | 16.4 |
| 20S*(7/28) | 0.965 | 0.152 | 0.203 | 1.63*2.84 | 17.9 |
| 18 | 1.02 | 0.152 | 0.203 | 1.73*3.05 | 23.8 |
| 18S*(7/26) | 1.22 | 0.152 | 0.203 | 1.93*3.45 | 26.8 |
| 16 | 1.29 | 0.254 | 0.203 | 2.21*4.01 | 37.3 |
| 16S*(7/24) | 1.52 | 0.254 | 0.203 | 2.44*4.47 | 40.2 |
TFE Insulated Extension Grade Type KX Thermocouple Wire
Chromel/Alumel TFE Thermocouple Wire 260°C - Extension Grade
| AWG | Nominal Conductor Diameter mm | Nominal Thickness mm | Gross Weight kg/km | ||
| Insulation | Jacket | O.D. | |||
| 26 | 0.406 | 0.152 | 0.203 | 1.12*1.83 | 6 |
| 24 | 0.508 | 0.152 | 0.203 | 1.19*1.95 | 7.5 |
| 24S*(7/32) | 0.61 | 0.152 | 0.203 | 1.24*2.13 | 8.9 |
| 20 | 0.813 | 0.152 | 0.203 | 1.55*2.69 | 16.4 |
| 20S*(7/28) | 0.965 | 0.152 | 0.203 | 1.63*2.84 | 17.9 |
| 18 | 1.02 | 0.152 | 0.203 | 1.73*3.05 | 23.8 |
| 18S*(7/26) | 1.22 | 0.152 | 0.203 | 1.93*3.45 | 26.8 |
| 16 | 1.29 | 0.254 | 0.203 | 2.21*4.01 | 37.3 |
| 16S*(7/24) | 1.52 | 0.254 | 0.203 | 2.44*4.47 | 40.2 |
TFE Insulated Type T Thermocouple Wire
Copper/Constantan TFE Thermocouple Wire 260°C
| AWG | Nominal Conductor Diameter mm | Nominal Thickness mm | Gross Weight kg/km | ||
| Insulation | Jacket | O.D. | |||
| 26 | 0.406 | 0.152 | 0.203 | 1.12*1.83 | 6 |
| 24 | 0.508 | 0.152 | 0.203 | 1.19*1.95 | 7.5 |
| 24S*(7/32) | 0.61 | 0.152 | 0.203 | 1.24*2.13 | 8.9 |
| 20 | 0.813 | 0.152 | 0.203 | 1.55*2.69 | 16.4 |
| 20S*(7/28) | 0.965 | 0.152 | 0.203 | 1.63*2.84 | 17.9 |
| 18 | 1.02 | 0.152 | 0.203 | 1.73*3.05 | 23.8 |
| 18S*(7/26) | 1.22 | 0.152 | 0.203 | 1.93*3.45 | 26.8 |
| 16 | 1.29 | 0.254 | 0.203 | 2.21*4.01 | 37.3 |
| 16S*(7/24) | 1.52 | 0.254 | 0.203 | 2.44*4.47 | 40.2 |
TFE Insulated Extension Grade Type TX Thermocouple Wire
Copper/Constantan TFE Thermocouple Wire 260°C - Extension Grade
| AWG | Nominal Conductor Diameter mm | Nominal Thickness mm | Gross Weight kg/km | ||
| Insulation | Jacket | O.D. | |||
| 26 | 0.406 | 0.152 | 0.203 | 1.12*1.83 | 6 |
| 24 | 0.508 | 0.152 | 0.203 | 1.19*1.95 | 7.5 |
| 24S*(7/32) | 0.61 | 0.152 | 0.203 | 1.24*2.13 | 8.9 |
| 20 | 0.813 | 0.152 | 0.203 | 1.55*2.69 | 16.4 |
| 20S*(7/28) | 0.965 | 0.152 | 0.203 | 1.63*2.84 | 17.9 |
| 18 | 1.02 | 0.152 | 0.203 | 1.73*3.05 | 23.8 |
| 18S*(7/26) | 1.22 | 0.152 | 0.203 | 1.93*3.45 | 26.8 |
| 16 | 1.29 | 0.254 | 0.203 | 2.21*4.01 | 37.3 |
| 16S*(7/24) | 1.52 | 0.254 | 0.203 | 2.44*4.47 | 40.2 |
TFE Insulated Type E Thermocouple Wire
Chromel/Constantan TFE Thermocouple Wire 260°C
| AWG | Nominal Conductor Diameter mm | Nominal Thickness mm | Gross Weight kg/km | ||
| Insulation | Jacket | O.D. | |||
| 26 | 0.406 | 0.152 | 0.203 | 1.12*1.83 | 6 |
| 24 | 0.508 | 0.152 | 0.203 | 1.19*1.95 | 7.5 |
| 24S*(7/32) | 0.61 | 0.152 | 0.203 | 1.24*2.13 | 8.9 |
| 20 | 0.813 | 0.152 | 0.203 | 1.55*2.69 | 16.4 |
| 20S*(7/28) | 0.965 | 0.152 | 0.203 | 1.63*2.84 | 17.9 |
| 18 | 1.02 | 0.152 | 0.203 | 1.73*3.05 | 23.8 |
| 18S*(7/26) | 1.22 | 0.152 | 0.203 | 1.93*3.45 | 26.8 |
| 16 | 1.29 | 0.254 | 0.203 | 2.21*4.01 | 37.3 |
| 16S*(7/24) | 1.52 | 0.254 | 0.203 | 2.44*4.47 | 40.2 |
TFE Insulated Extension Grade Type EX Thermocouple Wire
Chromel/Constantan TFE Thermocouple Wire 260°C - Extension Grade
| AWG | Nominal Conductor Diameter mm | Nominal Thickness mm | Gross Weight kg/km | ||
| Insulation | Jacket | O.D. | |||
| 26 | 0.406 | 0.152 | 0.203 | 1.12*1.83 | 6 |
| 24 | 0.508 | 0.152 | 0.203 | 1.19*1.95 | 7.5 |
| 24S*(7/32) | 0.61 | 0.152 | 0.203 | 1.24*2.13 | 8.9 |
| 20 | 0.813 | 0.152 | 0.203 | 1.55*2.69 | 16.4 |
| 20S*(7/28) | 0.965 | 0.152 | 0.203 | 1.63*2.84 | 17.9 |
| 18 | 1.02 | 0.152 | 0.203 | 1.73*3.05 | 23.8 |
| 18S*(7/26) | 1.22 | 0.152 | 0.203 | 1.93*3.45 | 26.8 |
| 16 | 1.29 | 0.254 | 0.203 | 2.21*4.01 | 37.3 |
| 16S*(7/24) | 1.52 | 0.254 | 0.203 | 2.44*4.47 | 40.2 |
TFE Insulated Type N Thermocouple Wire
Nicrosil/Nisil TFE Thermocouple Wire 260°C
| AWG | Nominal Conductor Diameter mm | Nominal Thickness mm | Gross Weight kg/km | ||
| Insulation | Jacket | O.D. | |||
| 26 | 0.406 | 0.152 | 0.203 | 1.12*1.83 | 6 |
| 24 | 0.508 | 0.152 | 0.203 | 1.19*1.95 | 7.5 |
| 24S*(7/32) | 0.61 | 0.152 | 0.203 | 1.24*2.13 | 8.9 |
| 20 | 0.813 | 0.152 | 0.203 | 1.55*2.69 | 16.4 |
| 20S*(7/28) | 0.965 | 0.152 | 0.203 | 1.63*2.84 | 17.9 |
| 18 | 1.02 | 0.152 | 0.203 | 1.73*3.05 | 23.8 |
| 18S*(7/26) | 1.22 | 0.152 | 0.203 | 1.93*3.45 | 26.8 |
| 16 | 1.29 | 0.254 | 0.203 | 2.21*4.01 | 37.3 |
| 16S*(7/24) | 1.52 | 0.254 | 0.203 | 2.44*4.47 | 40.2 |
TFE Insulated Extension Grade Type NX Thermocouple Wire
Nicrosil/Nisil TFE Thermocouple Wire 260°C - Extension Grade
| AWG | Nominal Conductor Diameter mm | Nominal Thickness mm | Gross Weight kg/km | ||
| Insulation | Jacket | O.D. | |||
| 26 | 0.406 | 0.152 | 0.203 | 1.12*1.83 | 6 |
| 24 | 0.508 | 0.152 | 0.203 | 1.19*1.95 | 7.5 |
| 24S*(7/32) | 0.61 | 0.152 | 0.203 | 1.24*2.13 | 8.9 |
| 20 | 0.813 | 0.152 | 0.203 | 1.55*2.69 | 16.4 |
| 20S*(7/28) | 0.965 | 0.152 | 0.203 | 1.63*2.84 | 17.9 |
| 18 | 1.02 | 0.152 | 0.203 | 1.73*3.05 | 23.8 |
| 18S*(7/26) | 1.22 | 0.152 | 0.203 | 1.93*3.45 | 26.8 |
| 16 | 1.29 | 0.254 | 0.203 | 2.21*4.01 | 37.3 |
| 16S*(7/24) | 1.52 | 0.254 | 0.203 | 2.44*4.47 | 40.2 |
