AL-XHHW-2 Power Cable, CT Rated
Application
Type XHHW-2 conductors are primarily used in conduit or recognized raceways for services, feeders, and branch circuit wiring as specified in the National Electrical Code 1 . XHHW-2 conductors may be used in wet or dry locations at temperatures not to exceed 90°C
Compliances
- UL 44 - Thermoset-Insulated Wires and Cables
- UL - 1581 Flame Exposure Test (VW-1)
- UL 1685 - CT Flame Exposure Test
- IEEE 1202/FT4 (2/0 AWG and larger)
- ICEA S-95-658 (NEMA WC 70) construction requirements

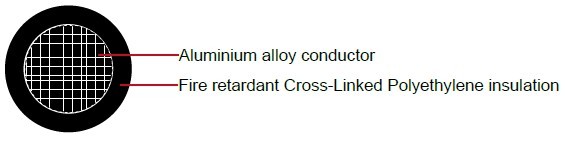

Construction
| Conductor | Single core, stranded aluminum alloy conductor |
| Insulation | Flame-retardant, abrasion, heat, moisture and sunlight resistant Cross-Linked Polyethylene (FRXLPE) |
| Color | upon request, black is preferable |
Parameters
| AWG or kcmil | Strand | Nominal Insulation Thickness | Nominal Overall Diameter | Cable Weight | |||
| Inch/mm | Inch/mm | Lbs/kft | kg/km | ||||
| 1/0 | 10 | 0.055 | 1.40 | 0.449 | 11.40 | 138 | 205 |
| 2/0 | 12 | 0.055 | 1.40 | 0.489 | 12.42 | 171 | 254 |
| 3/0 | 16 | 0.055 | 1.40 | 0.536 | 13.61 | 209 | 311 |
| 4/0 | 19 | 0.055 | 1.40 | 0.588 | 14.94 | 253 | 376 |
| 250 | 22 | 0.065 | 1.65 | 0.653 | 16.59 | 304 | 452 |
| 350 | 35 | 0.065 | 1.65 | 0.749 | 19.02 | 410 | 610 |
| 400 | 35 | 0.065 | 1.65 | 0.792 | 20.12 | 463 | 689 |
| 500 | 35 | 0.065 | 1.65 | 0.869 | 22.07 | 567 | 844 |
| 600 | 58 | 0.080 | 2.03 | 0.976 | 24.79 | 695 | 1034 |
| 750 | 58 | 0.080 | 2.03 | 1.071 | 27.20 | 851 | 1266 |
| 1000 | 58 | 0.080 | 2.03 | 1.223 | 31.06 | 1110 | 1651 |
