Industrial Cables
FROR - 300/500V and 450/750V
Application and Description
These flexible cables insulated with Standard and Approval-quality PVC plus a heavyweight PVC sheath, they are suitable for connections and movable equipment, even in places of public show and entertainment. Can be installed inside, in dry or humid environments (AD2), and for temporary use outside and not permissible under the laying plaster or underground, even if protected.
Standard and Approval
- CEI 20-20/1/2, CEI 20-22 II, CEI 20-34, CEI 20-35,CEI 20-37

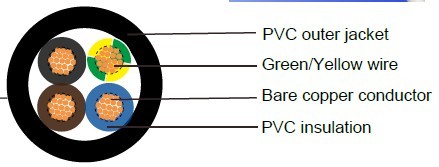

Cable Construction
| Fine bare copper strands |
| Strands to IEC 60228 class 5 |
| PVC core insulation TI2 to CEI 20-11 |
| Color codes to Unel 00722 |
| Green-yellow grounding, 3 conductors and above |
| PVC outer jacket TM 2 - Black (RAL 9005), Gray(RAL7001/7035) |
Technical Characteristics
| WORKING VOLTAGE |
300/500 volts |
| |
450/750 volts |
| TEST VOLTAGE |
2500 volts |
| FLEXING BENDING RADIUS |
10 x Ø |
| STATIC BENDING RADIUS |
4 x Ø
|
| FLEXING TEMPERATURE |
-15º C to +70º C |
| FIXED TEMPERATURE |
0º C to +70º C |
| SHORT-CIRCUIT TEMPERATURE |
160 °C |
| FLAME RETARDANT |
CEI 20-22 II |
| INSULATION RESISTANCE |
20 MΩ x km |
Cable Parameter
| AWG |
NO. OF CORES X NOMINAL CROSS SECTIONAL AREA |
NOMINAL THICKNESS OF INSULATION |
NOMINAL THICKNESS OF SHEATH |
NOMINAL OVERALL DIAMETER |
NOMINAL WEIGHT |
| |
# X MM² |
MM |
MM |
MM |
KG/KM |
| FROR300/500 |
| 18(24/32) |
7 x 1 |
0.6 |
1.0 |
11.1 |
151 |
| 18(24/32) |
10 x 1 |
0.6 |
1.2 |
14.3 |
220 |
| 18(24/32) |
12 x 1 |
0.6 |
1.2 |
14.8 |
250 |
| 18(24/32) |
16 x 1 |
0.6 |
1.3 |
16.5 |
330 |
| 18(24/32) |
19 x 1 |
0.6 |
1.4 |
17.7 |
385 |
| 18(24/32) |
24 x 1 |
0.6 |
1.5 |
20.7 |
485 |
| 18(24/32) |
27 x 1 |
0.6 |
1.6 |
21.4 |
600 |
| 16(30/30) |
7 x 1.5 |
0.7 |
1.2 |
13.1 |
215 |
| 16(30/30) |
10 x 1.5 |
0.7 |
1.3 |
16.7 |
305 |
| 16(30/30) |
12 x 1.5 |
0.7 |
1.4 |
17.5 |
345 |
| 16(30/30) |
16 x 1.5 |
0.7 |
1.5 |
19.4 |
455 |
| 16(30/30) |
19 x 1.5 |
0.7 |
1.6 |
20.5 |
520 |
| 16(30/30) |
24 x 1.5 |
0.7 |
1.7 |
24.3 |
675 |
| 16(30/30) |
27 x 1.5 |
0.7 |
1.8 |
25 |
720 |
| FROR450/750 |
| 18(24/32) |
2 x 1 |
0,7 |
1.0 |
8,7 |
74 |
| 18(24/32) |
3 x 1 |
0,7 |
1,0 |
9,1 |
88 |
| 18(24/32) |
4 x 1 |
0,7 |
1.0 |
9,9 |
105 |
| 18(24/32) |
5 x 1 |
0,7 |
1,1 |
11,1 |
135 |
| 16(30/30) |
2 x 1,5 |
0,7 |
1,0 |
9,2 |
89 |
| 16(30/30) |
3 x 1,5 |
0,7 |
1,0 |
9,8 |
108 |
| 16(30/30) |
4 x 1,5 |
0,7 |
1,1 |
10,9 |
133 |
| 16(30/30) |
5 x 1,5 |
0,7 |
1,2 |
12 |
167 |
| 14(50/30) |
2 x 2,5 |
0,8 |
1,2 |
11,2 |
134 |
| 14(50/30) |
3 x 2,5 |
0,8 |
1,2 |
11,9 |
163 |
| 14(50/30) |
4 x 2,5 |
0,8 |
1,2 |
12,9 |
200 |
| 14(50/30) |
5 x 2,5 |
0,8 |
1,3 |
14,3 |
252 |
| 12(56/28) |
2 x 4 |
0,8 |
1,2 |
12,5 |
178 |
| 12(56/28) |
3 x 4 |
0,8 |
1,3 |
13,5 |
227 |
| 12(56/28) |
4 x 4 |
0,8 |
1,3 |
14,7 |
278 |
| 12(56/28) |
5 x 4 |
0,8 |
1,5 |
16,5 |
351 |
| 10(84/28) |
2 x 6 |
0,8 |
1,3 |
13,9 |
242 |
| 10(84/28) |
3 x 6 |
0,8 |
1,4 |
14,9 |
305 |
| 10(84/28) |
4 x 6 |
0,8 |
1,4 |
16,3 |
375 |
| 10(84/28) |
5 x 6 |
0,8 |
1,5 |
18 |
476 |
