Industrial Cables
H05BB-F /H07BB-F
Application and Description
These rubbers insulated and sheathed electric cables, with a parallel EPDM tube, joined with a textile braid, are used especially for electric steam generator irons (named usually “vaporellas”).
The cables are suitable for the stripping force on automatic machines and for low temperature environments.
Standard and Approval
- HD 22.12, CEI 20-19/12, NF C 32-102-4

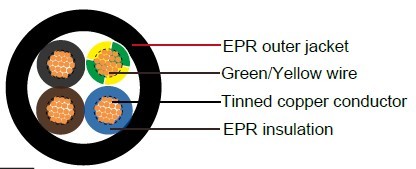

Cable Construction
| Bare/Tinned copper strand conductor |
| acc. to DIN VDE 0295 class 5. IEC 60228 class 5 |
| Insulation |
EPR rubber type EI7 |
| Color coded to VDE 0293-308(3 conductors and above with yellow/green wire) |
| Sheath |
EPR rubber type EM6 |
| Sheath color |
normally black |
Technical Characteristics
| Working voltage |
H05BB-F |
300/500V |
| |
H07BB-F |
450/750V |
| Test voltage |
H05BB-F |
2000V |
| |
H07BB-F |
2500V |
| Flexing bending radius |
4 × Ø |
| Static bending radius |
3 × Ø |
| Operating temperature |
H05BB-F |
- 40℃- + 60℃ |
| |
H07BB-F |
- 25℃- + 90℃ |
| Short circuit temperature |
250℃ |
|
| Flame retardant |
VDE 0482-332-1-2/IEC 60332-1 |
Cable Parameter
| AWG |
No. of Cores x Nominal Cross Sectional Area |
Nominal Thickness of Insulation |
Nominal Thickness of Sheath |
Nominal Overall Diameter |
Nominal Weight |
| |
# x mm² |
mm |
mm |
mm |
kg/km |
| H05BB-F |
| 18(24/32) |
2x0.75 |
0.6 |
0.8 |
6.3 |
53 |
| 17(32/32) |
2x1 |
0.6 |
0.9 |
6.8 |
64 |
| 16(30/30) |
2x1.5 |
0.8 |
1.0 |
8.3 |
95 |
| 14(50/30) |
2x2.5 |
0.9 |
1.1 |
9.8 |
140 |
| 18(24/32) |
3x0.75 |
0.6 |
0.9 |
6.8 |
65 |
| 17(32/32) |
3x1 |
0.6 |
0.9 |
7.2 |
77 |
| 16(30/30) |
3x1.5 |
0.8 |
1 |
8.8 |
115 |
| 14(50/30) |
3x2.5 |
0.9 |
1.1 |
10.4 |
170 |
| 12(56/28) |
3 x 4 |
1 |
1.2 |
12.2 |
240 |
| 10(84/28) |
3 x 6 |
1 |
1.4 |
13.6 |
320 |
| 18(24/32) |
4x0.75 |
0.6 |
0.9 |
7.4 |
80 |
| 17(32/32) |
4x1 |
0.6 |
0.9 |
7.8 |
95 |
| 16(30/30) |
4x1.5 |
0.8 |
1.1 |
9.8 |
145 |
| 14(50/30) |
4x2.5 |
0.9 |
1.2 |
11.5 |
210 |
| 12(56/28) |
4 x 4 |
1 |
1.3 |
13.5 |
300 |
| 10(84/28) |
4 x 6 |
1 |
1.5 |
15.4 |
405 |
| 18(24/32) |
5x0.75 |
0.6 |
1 |
8.3 |
100 |
| 17(32/32) |
5x1 |
0.6 |
1 |
8.7 |
115 |
| 16(30/30) |
5x1.5 |
0.8 |
1.1 |
10.7 |
170 |
| 14(50/30) |
5x2.5 |
0.9 |
1.3 |
12.8 |
255 |
| H07BB-F |
| 17(32/32) |
2×1 |
0.8 |
1.3 |
8.20 |
89 |
| 16(30/30) |
2×1.5 |
0.8 |
1.5 |
9.10 |
113 |
| 14(50/30) |
2×2.5 |
0.9 |
1.7 |
10.85 |
165 |
| 17(32/32) |
3×1 |
0.8 |
1.4 |
8.90 |
108 |
| 16(30/30) |
3×1.5 |
0.8 |
1.6 |
9.80 |
138 |
| 14(50/30) |
3×2.5 |
0.9 |
1.8 |
11.65 |
202 |
| 17(32/32) |
4×1 |
0.8 |
1.5 |
9.80 |
134 |
| 16(30/30) |
4×1.5 |
0.8 |
1.7 |
10.85 |
171 |
| 14(50/30) |
4×2.5 |
0.9 |
1.9 |
12.80 |
248 |
| 17(32/32) |
5×1 |
0.8 |
1.6 |
10.80 |
172 |
| 16(30/30) |
5×1.5 |
0.8 |
1.8 |
11.90 |
218 |
