H05V-K
Application and Description
These insulated wires are determined for installation to the inside of apparatus as well as for the protective laying to the lightings, in dry rooms, in production facilities, switch and distributors boards, in tubes, under and surface mounting of plasters.
Standard and Approval
- CEI 20-20/3, CEI 20-35 (EN60332-1), CEI 20-52, HD 21.3 S3
- CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant

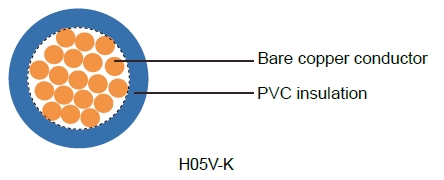

Cable Construction
| Fine bare copper strands |
| Strands to VDE-0295 Class-5, IEC 60228 Class-5 |
| Special PVC TI1 core insulation |
| Cores to VDE-0293 colors on chart |
Technical Characteristics
| Working voltage |
300/500v |
| Test voltage |
2000 volts |
| Flexing bending radius |
12.5 x Ø |
| Static bending radius |
12.5 x Ø |
| Flexing temperature |
-5ºC to +70ºC |
| Static temperature |
-30ºC to +80ºC |
| Flame retardant |
IEC 60332.1 |
| Insulation resistance |
10 MΩ x km |
Cable Parameter
| AWG |
No. of Cores x Nominal Cross Sectional Area |
Nominal Thickness of Insulation |
Nominal Overall Diameter |
Nominal Copper Weight |
Nominal Weight |
| |
# x mm² |
mm |
mm |
kg/km |
kg/km |
| 20(16/32) |
1 x 0.5 |
0.6 |
2.1 |
4.9 |
10 |
| 18(24/32) |
1 x 0.75 |
0.6 |
2.4 |
7.2 |
13 |
| 17(32/32) |
1 x 1 |
0.6 |
2.6 |
9.6 |
15 |
