H05V-U/H07V-U

Application and Description

H05 V-U/(H)05 V-U

These insulated wires are determined for the installation to the inside of apparatus as well as for the protective laying to the lightings, in dry rooms, in production facilities, switch and distributor boards, in tubes, under and surface mounting of plasters.

H07 V-U/(H)07 V-U

These insulated wires are suitable for laying tubes, under and surface mounting of plasters and also in closed installation conduits. These are not allowed to install for direct laying in cable trays, channels or tanks.

These types are permitted for the inner wiring of equipment, distributor and switchboards and also for protective laying to the lightings with a nominal voltage up to 1000 V alternating current or up to 750 V direct current against ground.

Standard and Approval

• CEI 20-20/3, CEI 20-35, CEI 20-52, HD 21.3 S3, IEC60332
• CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant

Cable Construction

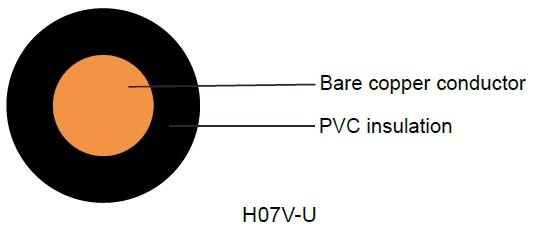

Solid bare copper single wire

Solid to DIN VDE 0295 cl-1 and IEC 60228 cl-1

Special PVC TI1 core insulation

Cores to VDE-0293 colors on chart

H05V-U (20, 18 & 17 AWG)

H07V-U (16 AWG and Larger)

Technical Characteristics

Working voltage	300/500v (H05V-U)
Working voltage	450/750v (H07V-U)
Test voltage	2000V(H05V-U)/2500V (H07V-U)
Flexing bending radius	15 x Ø
Static bending radius	15 x Ø
Flexing temperature	-5ºC to +70ºC
Static temperature	-30ºC to +90ºC
Short circuit temperature	+160ºC
Flame retardant	IEC 60332.1
Insulation resistance	10 MΩ x km

Cable Parameter

AWG	No. of Cores x Nominal Cross Sectional Area	Nominal Thickness of Insulation	Nominal Overall Diameter	Nominal Copper Weight	Nominal Weight
	# x mm²	mm	mm	kg/km	kg/km
20	1 x 0.5	0.6	2.1	4.8	9
18	1 x 0.75	0.6	2.2	7.2	11
17	1 x 1	0.6	2.4	9.6	14
16	1 x 1.5	0.7	2.9	14.4	21
14	1 x 2.5	0.8	3.5	24.0	33
12	1 x 4	0.8	3.9	38.0	49
10	1 x 6	0.8	4.5	58.0	69
8	1 x 10	1.0	5.7	96.0	115
