H05V2-U/H07V2-U
Application and Description
These cables are for fixed protected installation inside appliances and in, or on, lighting fittings. Suitable for installation in surface mounted or embedded conduits, only for signalling and control circuits. Maximum conductor temperature in normal use 90°C. Not to be used in contact with object higher then 85°C. Not suitable for fixed distribution system.
Standard and Approval
- CEI20-20/7, HD 21.7 S2, CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant

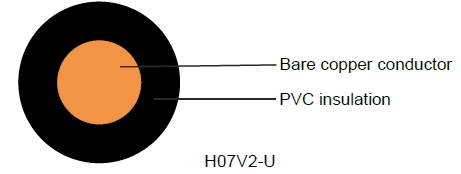

Cable Construction
| Solid bare copper single wire |
| Solid to DIN VDE 0281-3,NF C 32-201-3 and IEC 60227-3 |
| Special PVC TI3 ore insulation |
| Cores to VDE-0293 colors on chart |
| H05V-U (20, 18 & 17 AWG) |
| H07V-U (16 AWG and Larger) |
Technical Characteristics
| Working voltage |
300/500v (H05V-U) |
| Working voltage |
450/750v (H07V-U) |
| Test voltage |
2000V(H05V-U)/2500V (H07V-U) |
| Flexing bending radius |
15 x Ø |
| Static bending radius |
15 x Ø |
| Flexing temperature |
-5ºC to +70ºC |
| Static temperature |
-30ºC to +80ºC |
| Short circuit temperature |
+160ºC |
| Flame retardant |
IEC 60332.1 |
| Insulation resistance |
10 MΩ x km |
Cable Parameter
| AWG |
No. of Cores x Nominal Cross Sectional Area |
Nominal Thickness of Insulation |
Nominal Overall Diameter |
Nominal Copper Weight |
Nominal Weight |
| |
# x mm² |
mm |
mm |
kg/km |
kg/km |
| 20 |
1 x 0.5 |
0.6 |
2.1 |
4.8 |
9 |
| 18 |
1 x 0.75 |
0.6 |
2.2 |
7.2 |
11 |
| 17 |
1 x 1 |
0.6 |
2.4 |
9.6 |
14 |
| 16 |
1 x 1.5 |
0.7 |
2.9 |
14.4 |
21 |
| 14 |
1 x 2.5 |
0.8 |
3.5 |
24.0 |
33 |
| 12 |
1 x 4 |
0.8 |
3.9 |
38.0 |
49 |
| 10 |
1 x 6 |
0.8 |
4.5 |
58.0 |
69 |
| 8 |
1 x 10 |
1.0 |
5.7 |
96.0 |
|
