CCV
Application and Description:
For supervisory electrical equipment, station control circuits, outdoor, suitable installation in dry or wet cable trenches.
Reference Standard:
IEC 60502-1

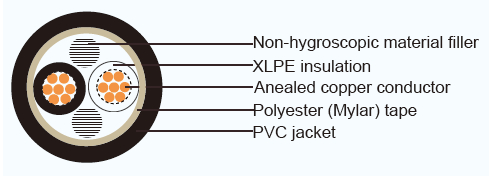

Cable Construction:
Conductor: Stranded annealed copper wires, Sizes: 1.5 mm2 up to 10 mm2 Insulation: Cross-linked polyethylene(XLPE)
Color : 2-4 cores-Black, White, Red and Green ,More than 4 cores: Black core with marking numbers Filler: Non-hygroscopic material(optional)
Binding tape: Polyester (Mylar) tape (optional)
Sheath: Polyvinyl chloride (PVC), Black color (A special flame retardant sheath can be supplied)
Technical Characteristics:
Maximum conductor temperature 90oC
Circuit voltage not exceeding 600 volts
Test voltage 3500 volts
Cable Parameter:
| NO. OF CORES | CONDUCTOR | THICKNESS OF INSULATION | THICKNESS OF SHEATH |
OVERALL DIAMETER | MAXIMUM CONDUCTOR RESISTANCE (AT 20°C) | CABLE WEIGHT | ||
| NOMINAL CROSS- SECTIONAL AREA |
NO.& DIA. OF WIRES |
DIAMETER | ||||||
| MM2 | MM | MM | MM | MM | MM | OHM/KM | KG/KM | |
| 2 | 1.5 | 7/0.53 | 1.59 | 0.7 | 1.8 | 10.5 | 12.1 | 130 |
| 2.5 | 7/0.67 | 2.01 | 0.7 | 1.8 | 11.5 | 7.41 | 160 | |
| 4 | 7/0.85 | 2.55 | 0.7 | 1.8 | 12.5 | 4.61 | 200 | |
| 6 | 7/1.04 | 3.12 | 0.7 | 1.8 | 13.5 | 3.08 | 260 | |
| 10 | 7/1.35 | 4.05 | 0.7 | 1.8 | 15.5 | 1.83 | 350 | |
| 3 | 1.5 | 7/0.53 | 1.59 | 0.7 | 1.8 | 11.0 | 12.1 | 160 |
| 2.5 | 7/0.67 | 2.01 | 0.7 | 1.8 | 12.0 | 7.41 | 200 | |
| 4 | 7/0.85 | 2.55 | 0.7 | 1.8 | 13.0 | 4.61 | 260 | |
| 6 | 7/1.04 | 3.12 | 0.7 | 1.8 | 14.5 | 3.08 | 330 | |
| 10 | 7/1.35 | 4.05 | 0.7 | 1.8 | 16.5 | 1.83 | 470 | |
| 4 | 1.5 | 7/0.53 | 1.59 | 0.7 | 1.8 | 12.0 | 12.1 | 190 |
| 2.5 | 7/0.67 | 2.01 | 0.7 | 1.8 | 13.0 | 7.41 | 250 | |
| 4 | 7/0.85 | 2.55 | 0.7 | 1.8 | 14.5 | 4.61 | 320 | |
| 6 | 7/1.04 | 3.12 | 0.7 | 1.8 | 15.5 | 3.08 | 420 | |
| 10 | 7/1.35 | 4.05 | 0.7 | 1.8 | 18.0 | 1.83 | 600 | |
| 5 | 1.5 | 7/0.53 | 1.59 | 0.7 | 1.8 | 13.0 | 12.1 | 230 |
| 2.5 | 7/0.67 | 2.01 | 0.7 | 1.8 | 14.0 | 7.41 | 290 | |
| 4 | 7/0.85 | 2.55 | 0.7 | 1.8 | 15.5 | 4.61 | 380 | |
| 6 | 7/1.04 | 3.12 | 0.7 | 1.8 | 17.0 | 3.08 | 500 | |
| 10 | 7/1.35 | 4.05 | 0.7 | 1.8 | 19.5 | 1.83 | 730 | |
| 6 | 1.5 | 7/0.53 | 1.59 | 0.7 | 1.8 | 13.5 | 12.1 | 260 |
| 2.5 | 7/0.67 | 2.01 | 0.7 | 1.8 | 15.0 | 7.41 | 340 | |
| 4 | 7/0.85 | 2.55 | 0.7 | 1.8 | 16.5 | 4.61 | 450 | |
| 6 | 7/1.04 | 3.12 | 0.7 | 1.8 | 18.5 | 3.08 | 590 | |
| 10 | 7/1.35 | 4.05 | 0.7 | 1.8 | 21.0 | 1.83 | 850 | |
| 7 | 1.5 | 7/0.53 | 1.59 | 0.7 | 1.8 | 13.5 | 12.1 | 270 |
| 2.5 | 7/0.67 | 2.01 | 0.7 | 1.8 | 15.0 | 7.41 | 360 | |
| 4 | 7/0.85 | 2.55 | 0.7 | 1.8 | 16.5 | 4.61 | 480 | |
| 6 | 7/1.04 | 3.12 | 0.7 | 1.8 | 18.5 | 3.08 | 640 | |
| 10 | 7/1.35 | 4.05 | 0.7 | 1.8 | 21.0 | 1.83 | 940 | |
| 8 | 1.5 | 7/0.53 | 1.59 | 0.7 | 1.8 | 15.0 | 12.1 | 320 |
| 2.5 | 7/0.67 | 2.01 | 0.7 | 1.8 | 16.5 | 7.41 | 410 | |
| 4 | 7/0.85 | 2.55 | 0.7 | 1.8 | 18.5 | 4.61 | 550 | |
| 6 | 7/1.04 | 3.12 | 0.7 | 1.8 | 20.5 | 3.08 | 740 | |
| 10 | 7/1.35 | 4.05 | 0.7 | 1.8 | 23.5 | 1.83 | 1,090 | |
| 10 | 1.5 | 7/0.53 | 1.59 | 0.7 | 1.8 | 17.0 | 12.1 | 380 |
| 2.5 | 7/0.67 | 2.01 | 0.7 | 1.8 | 18.5 | 7.41 | 500 | |
| 4 | 7/0.85 | 2.55 | 0.7 | 1.8 | 20.5 | 4.61 | 670 | |
| 6 | 7/1.04 | 3.12 | 0.7 | 1.8 | 23.0 | 3.08 | 900 | |
| 10 | 7/1.35 | 4.05 | 0.7 | 1.8 | 26.5 | 1.83 | 1,330 | |
| 12 | 1.5 | 7/0.53 | 1.59 | 0.7 | 1.8 | 17.5 | 12.1 | 430 |
| 2.5 | 7/0.67 | 2.01 | 0.7 | 1.8 | 19.0 | 7.41 | 570 | |
| 4 | 7/0.85 | 2.55 | 0.7 | 1.8 | 21.5 | 4.61 | 780 | |
| 6 | 7/1.04 | 3.12 | 0.7 | 1.8 | 23.5 | 3.08 | 1,050 | |
| 10 | 7/1.35 | 4.05 | 0.7 | 1.8 | 27.5 | 1.83 | 1,560 | |
| 15 | 1.5 | 7/0.53 | 1.59 | 0.7 | 1.8 | 19.0 | 12.1 | 510 |
| 2.5 | 7/0.67 | 2.01 | 0.7 | 1.8 | 21.0 | 7.41 | 690 | |
| 4 | 7/0.85 | 2.55 | 0.7 | 1.8 | 23.5 | 4.61 | 950 | |
| 6 | 7/1.04 | 3.12 | 0.7 | 1.8 | 26.0 | 3.08 | 1,280 | |
| 20 | 1.5 | 7/0.53 | 1.59 | 0.7 | 1.8 | 21.0 | 12.1 | 650 |
| 2.5 | 7/0.67 | 2.01 | 0.7 | 1.8 | 23.0 | 7.41 | 880 | |
| 4 | 7/0.85 | 2.55 | 0.7 | 1.8 | 26.0 | 4.61 | 1,220 | |
| 6 | 7/1.04 | 3.12 | 0.7 | 1.8 | 29.0 | 3.08 | 1,660 | |
|
30 |
1.5 | 7/0.53 | 1.59 | 0.7 | 1.8 | 24.0 | 12.1 | 920 |
| 2.5 | 7/0.67 | 2.01 | 0.7 | 1.8(1.9) | 27.0 | 7.41 | 1,250 | |
| 4 | 7/0.85 | 2.55 | 0.7 | 1.8(1.9) | 30.5 | 4.61 | 1,750 | |
