CEE/F(EM-CEE)

Application and Description:

For supervisory electrical equipment, station control circuits, outdoor, suitable installation in dry or wet cable trenches.

Name Code:

C: For control

E: Polythylene

E: Polythylene

/F: Flame retardant

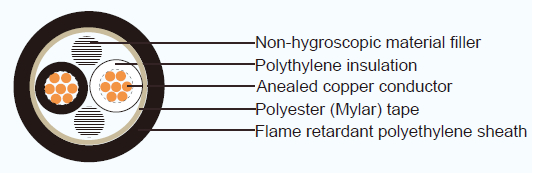

Cable Construction:

Conductor: Circular or compacted circuar stranded annealed copper wires
Seperator: A proper separator may be applied to a conductor
Insulation: Polyethylene
Color :
2 cores- Black and white
3 cores- Black, white and red
4 cores- Black, white, red and green
More than 4 cores: Black core with marking numbers
Filler: Non-hygroscopic material(optional)
Binding tape: Polyester (Mylar) tape (optional)
Sheath: Flame retardant polyethylene, Black color

Technical Characteristics:

Maximum conductor temperature 90oC
Circuit voltage not exceeding 600 volts
Test voltage 2000 volts

Cable Parameter:

NO. OF CORES	NOMINAL SECTIONAL AREA	NO. OF WIRE	DIAMETER OF CONDUCTOR (APPROX.)	THICKNESS OF INSULATION	THICKNESS OF SHEATH	OVERALL DIAMETER (APPROX.)	MAXIMUM DC. RESISTANCE OF CDR. AT 20°C	CABLE WEIGHT (APPROX.)
	MM^2		MM	MM	MM	MM	OHM / KM	KG / KM
2	1.25	7/0.45	1.35	0.8	1.5	9.4	16.8	90
	2	7/0.6	1.8	0.8	1.5	10.5	9.42	115
	3.5	7/0.8	2.4	0.8	1.5	11.5	5.3	160
	5.5	7/1.0	3	1	1.5	13.5	3.4	225
	8	7/1.2	3.6	1	1.5	15	2.36	290
	8	compacted	3.4	1	1.5	14.5	2.34	280
	14	7/1.6	4.8	1	1.5	17.5	1.33	440
	14	compacted	4.4	1	1.5	16.5	1.34	425
	22	7/2.0	6	1.2	1.5	2]	0.84	650
	22	compacted	5.5		1.5	19.5	0.849	620
3	1.25	7/0.45	1.35	0.8	1.5	9.9	16.8	105
	2	7/0.6	1.8	0.8	1.5	11	9.42	140
	3.5	7/0.8	2.4	0.8	1.5	12.5	5.3	200
	5.5	7/1.0	3	1	1.5	t4.5	3.4	290
	8	7/1.2	3.6	1	1.5	16	2.36	380
	8	compacted	3.4	1	1.5	15.5	2.34	370
	14	7/1.6	4.8	1	1.5	18.5	1.33	585
	14	compacted	4.4	1	1.5	17.5	1.34	570
	22	7/2.0	6	1.2	1.5	22	0.84	875
	22	compacted	5.5	1.2	1.5	21	0.849	845
4	1.25	7/0.45	1.35	0.8	1.5	11	16.8	125
	2	7/0.6	1.8	0.8	1.5	12	9.42	175
	3.5	7/0.8	2.4	0.8	1.5	13.5	5.3	250
	5.5	7/1.0	3	1	1.5	16	3.4	360
	8	41832	3.6	1	1.5	17	2.36	475
	8	compacted	3.4	1	1.5	16.5	2.34	465
	14	7/1.6	4.8	1	1.5	20	1.33	750
	14	compacted	4.4	1	1.5	19	1.34	730
	22	7/2.0	6	1.2	1.6	24	0.84	1140
	22	compacted	5.5	1.2	1.6	23	0.849	1110
5	1.25	7/0.45	1.35	0.8	1.5	11.5	16.8	150
	2	7/0.6	1.8	0.8	1.5	13	9.42	205
	3.5	7/0.8	2.4	0.8	1.5	14.5	5.3	300
	5.5	7/1.0	3	1	1.5	17	3.4	440
	8	7/ 1.2	3.6	1	1.5	19	2.36	580
		compacted	3.4	1	1.5	18.5	2.34	570
	14	7/1.6	4.8	1	1.6	23	1.33	930
		compacted	4.4	1	1.5	21	1.34	900
6	1.25	7/0.45	1.35	0.8	1.5	12.5	16.8	175
	2	7/0.6	1.8	0.8	1.5	14	9.42	240
	3.5	7/0.8	2.4	0.8	1.5	15.5	5.3	355
	5.5	7/1.0	3	1	1.5	18.5	3.4	520
	8	7/1.2	3.6	1	1.5	21	2.36	690
	8	compacted	3.4	1	1.5	20	2.34	675
	14	711.6	4.8	1	1.6	25	1.33	1110
	14	compacted	4.4	1	1.6	23	1.34	1080
7	1.25	7/0.45	1.35	0.8	1.5	12.5	16.8	185
	2	7/0.6	1.8	0.8	1.5	14	9.42	260
	3.5	7/0.8	2.4	0.8	1.5	15.5	5.3	385
	5.5	7/ 1.0	3	1	1.5	18.5	3.4	570
	8	7/1.2	3.6	1	1.5	21	2.36	765
	8	compacted	3.4	1	1.5	20	2.34	750
8	1.25	7/0.45	1.35	0.8	1.5	13.5	16.8	210
	2	7/0.6	1.8	0.8	1.5	15	9.42	295
	3.5	7/0.8	2.4	0.8	1.5	17	5.3	440
	5.5	7/1.0	3	1	1.5	20	3.4	655
	8	7/ 1.2	3.6	1	1.6	23	2.36	885
	8	compacted	3.4	1	1.5	22	2.34	855
10	1.25	7/0.45	1.35	0.8	1.5	15.5	16.8	265
	2	7/0.6	1.8	0.8	1.5	17.5	9.42	375
	3.5	7/0.8	2.4	0.8	1.5	19.5	5.3	560
	5.5	7/1.0	3	1	1.6	24	3.4	845
	8	7/ 1.2	3.6	1	1.7	27	2.36	1150
	8	compacted	3.4	1	1.7	26	2.34	1120
12	1.25	7/0.45	1.35	0.8	1.5	16	16.8	300
	2	7/0.6	1.8	0.8	1.5	18	9.42	425
	3.5	7/0.8	2.4	0.8	1.5	21	5.3	640
	5.5	7/1.0	3	1	1.7	25	3.4	980
	8	7/ 1.2	3.6	1	1.8	28	2.36	1330
	8	compacted	3.4	1	1.7	27	2.34	1290
15	1.25	7/ 0.45	1.35	0.8	1.5	17	16.8	355
	2	7/0.6	1.8	0.8	1.5	19..0	9.42	510
	3.5	7/0.8	2.4	0.8	1.5	22	5.3	775
	5.5	7/1.0	3	l.0	1.7	27	3.4	I190
20	1.25	7/0.45	1.35	0.8	1.5	19	16.8	445
	2	7/0.6	1.8	0.8	1.5	22	9.42	655
	3.5	7/0.8	2.4	0.8	1.6	25	5.3	1010
	5.5	7/ 1.0	3	1	1.9	3J	3.4	1560
30	1.25	7/0.45	1.35	0.8	1.6	23	.16.8	650
	2	7/0.6	1.8	0.8	1.7	26	9.42	970
	3.5	7/0.8	2.4	0.8	1.8	30	5.3	1510
