CEV
Application and Description:
For supervisory electrical equipment, station control circuits, outdoor, suitable installation in dry or wet cable trenches.
Name Code:
C: For control
E: Polythylene
V: Vinyl

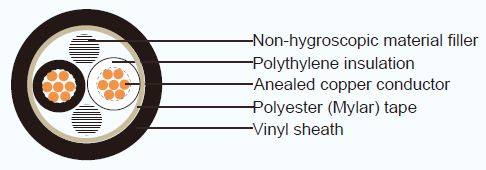

Cable Construction:
Conductor: Circular or compacted circuar stranded annealed copper wires
Seperator: A proper separator may be applied to a conductor
Insulation: Polyethylene
Color :
2 cores- Black and white
3 cores- Black, white and red
4 cores- Black, white, red and green
More than 4 cores: Black core with marking numbers
Filler: Non-hygroscopic material(optional)
Binding tape: Polyester (Mylar) tape (optional)
Sheath: Polyvinyl chloride (PVC), Black color
Technical Characteristics:
Maximum conductor temperature 90oC
Circuit voltage not exceeding 600 volts
Test voltage 2000 volts
Cable Parameter:
| NO. OF CORES | NOMINAL SECTIONAL AREA | NO. OF WIRE | DIAMETER OF CONDUCTOR (APPROX.) | THICKNESS OF INSULATION | THICKNESS OF SHEATH |
OVERALL DIAMETER (APPROX.) | MAXIMUM DC. RESISTANCE OF CDR. AT 20°C |
CABLE WEIGHT (APPROX.) |
| MM^2 | MM | MM | MM | MM | OHM / KM | KG / KM | ||
| 2 | 1.25 | 7/0.45 | 1.35 | 0.8 | 1.5 | 9.4 | 16.8 | 95 |
| 2 | 7/0.6 | 1.8 | 0.8 | 1.5 | 10.5 | 9.42 | 125 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 | 1.5 | 11.5 | 5.3 | 165 | |
| 5.5 | 7/1.0 | 3 | 1 | 1.5 | 13.5 | 3.4 | 235 | |
| 8 | 7/1.2 | 3.6 | 1 | 1.5 | 15 | 2.36 | 300 | |
| 8 | compacted | 3.4 | 1 | 1.5 | 14.5 | 2.34 | 290 | |
| 14 | 7/1.6 | 4.8 | 1 | 1.5 | 17.5 | 1.33 | 450 | |
| 14 | compacted | 4.4 | 1 | 1.5 | 16.5 | 1.34 | 435 | |
| 22 | 7/2.0 | 6 | 1.2 | 1.5 | 2] | 0.84 | 660 | |
| 22 | compacted | 5.5 | 1.5 | 19.5 | 0.849 | 635 | ||
| 3 | 1.25 | 7/0.45 | 1.35 | 0.8 | 1.5 | 9.9 | 16.8 | 115 |
| 2 | 7/0.6 | 1.8 | 0.8 | 1.5 | 11 | 9.42 | 150 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 | 1.5 | 12.5 | 5.3 | 210 | |
| 5.5 | 7/1.0 | 3 | 1 | 1.5 | t4.5 | 3.4 | 300 | |
| 8 | 7/1.2 | 3.6 | 1 | 1.5 | 16 | 2.36 | 390 | |
| 8 | compacted | 3.4 | 1 | 1.5 | 15.5 | 2.34 | 380 | |
| 14 | 7/1.6 | 4.8 | 1 | 1.5 | 18.5 | 1.33 | 600 | |
| 14 | compacted | 4.4 | 1 | 1.5 | 17.5 | 1.34 | 585 | |
| 22 | 7/2.0 | 6 | 1.2 | 1.5 | 22 | 0.84 | 890 | |
| 22 | compacted | 5.5 | 1.2 | 1.5 | 21 | 0.849 | 8ω | |
| 4 | 1.25 | 7/0.45 | 1.35 | 0.8 | 1.5 | 11 | 16.8 | 135 |
| 2 | 7/0.6 | 1.8 | 0.8 | 1.5 | 12 | 9.42 | 180 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 | 1.5 | 13.5 | 5.3 | 260 | |
| 5.5 | 7/1.0 | 3 | 1 | 1.5 | 16 | 3.4 | 375 | |
| 8 | 41832 | 3.6 | 1 | 1.5 | 17 | 2.36 | 490 | |
| 8 | compacted | 3.4 | 1 | 1.5 | 16.5 | 2.34 | 475 | |
| 14 | 7/1.6 | 4.8 | 1 | 1.5 | 20 | 1.33 | 765 | |
| 14 | compacted | 4.4 | 1 | 1.5 | 19 | 1.34 | 745 | |
| 22 | 7/2.0 | 6 | 1.2 | 1.6 | 24 | 0.84 | 1160 | |
| 22 | compacted | 5.5 | 1.2 | 1.6 | 23 | 0.849 | 1120 | |
| 5 | 1.25 | 7/0.45 | 1.35 | 0.8 | 1.5 | 11.5 | 16.8 | 160 |
| 2 | 7/0.6 | 1.8 | 0.8 | 1.5 | 13 | 9.42 | 215 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 | 1.5 | 14.5 | 5.3 | 310 | |
| 5.5 | 7/1.0 | 3 | 1 | 1.5 | 17 | 3.4 | 450 | |
| 8 | 7/ 1.2 | 3.6 | 1 | 1.5 | 19 | 2.36 | 595 | |
| compacted | 3.4 | 1 | 1.5 | 18.5 | 2.34 | 580 | ||
| 14 | 7/1.6 | 4.8 | 1 | 1.6 | 23 | 1.33 | 945 | |
| compacted | 4.4 | 1 | 1.5 | 21 | 1.34 | 915 | ||
| 6 | 1.25 | 7/0.45 | 1.35 | 0.8 | 1.5 | 12.5 | 16.8 | 185 |
| 2 | 7/0.6 | 1.8 | 0.8 | 1.5 | 14 | 9.42 | 250 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 | 1.5 | 15.5 | 5.3 | 365 | |
| 5.5 | 7/1.0 | 3 | 1 | 1.5 | 18.5 | 3.4 | 530 | |
| 8 | 7/1.2 | 3.6 | 1 | 1.5 | 21 | 2.36 | 705 | |
| 8 | compacted | 3.4 | 1 | 1.5 | 20 | 2.34 | 690 | |
| 14 | 711.6 | 4.8 | 1 | 1.6 | 25 | 1.33 | 1130 | |
| 14 | compacted | 4.4 | 1 | 1.6 | 23 | 1.34 | 1100 | |
| 7 | 1.25 | 7/0.45 | 1.35 | 0.8 | 1.5 | 12.5 | 16.8 | 195 |
| 2 | 7/0.6 | 1.8 | 0.8 | 1.5 | 14 | 9.42 | 270 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 | 1.5 | 15.5 | 5.3 | 395 | |
| 5.5 | 7/ 1.0 | 3 | 1 | 1.5 | 18.5 | 3.4 | 585 | |
| 8 | 7/1.2 | 3.6 | 1 | 1.5 | 21 | 2.36 | 780 | |
| 8 | compacted | 3.4 | 1 | 1.5 | 20 | 2.34 | 760 | |
| 8 | 1.25 | 7/0.45 | 1.35 | 0.8 | 1.5 | 13.5 | 16.8 | 220 |
| 2 | 7/0.6 | 1.8 | 0.8 | 1.5 | 15 | 9.42 | 305 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 | 1.5 | 17 | 5.3 | 450 | |
| 5.5 | 7/1.0 | 3 | 1 | 1.5 | 20 | 3.4 | 665 | |
| 8 | 7/ 1.2 | 3.6 | 1 | 1.6 | 23 | 2.36 | 900 | |
| 8 | compacted | 3.4 | 1 | 1.5 | 22 | 2.34 | 870 | |
| 10 | 1.25 | 7/0.45 | 1.35 | 0.8 | 1.5 | 15.5 | 16.8 | 275 |
| 2 | 7/0.6 | 1.8 | 0.8 | 1.5 | 17.5 | 9.42 | 390 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 | 1.5 | 19.5 | 5.3 | 575 | |
| 5.5 | 7/1.0 | 3 | 1 | 1.6 | 24 | 3.4 | 865 | |
| 8 | 7/ 1.2 | 3.6 | 1 | 1.7 | 27 | 2.36 | 1170 | |
| 8 | compacted | 3.4 | 1 | 1.7 | 26 | 2.34 | 1140 | |
| 12 | 1.25 | 7/0.45 | 1.35 | 0.8 | 1.5 | 16 | 16.8 | 310 |
| 2 | 7/0.6 | 1.8 | 0.8 | 1.5 | 18 | 9.42 | 440 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 | 1.5 | 21 | 5.3 | 655 | |
| 5.5 | 7/1.0 | 3 | 1 | 1.7 | 25 | 3.4 | 1000 | |
| 8 | 7/ 1.2 | 3.6 | 1 | 1.8 | 28 | 2.36 | 1350 | |
| 8 | compacted | 3.4 | 1 | 1.7 | 27 | 2.34 | 1310 | |
| 15 | 1.25 | 7/ 0.45 | 1.35 | 0.8 | 1.5 | 17 | 16.8 | 365 |
| 2 | 7/0.6 | 1.8 | 0.8 | 1.5 | 19..0 | 9.42 | 525 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 | 1.5 | 22 | 5.3 | 790 | |
| 5.5 | 7/1.0 | 3 | l.0 | 1.7 | 27 | 3.4 | 1210 | |
| 20 | 1.25 | 7/0.45 | 1.35 | 0.8 | 1.5 | 19 | 16.8 | 460 |
| 2 | 7/0.6 | 1.8 | 0.8 | 1.5 | 22 | 9.42 | 670 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 | 1.6 | 25 | 5.3 | 1030 | |
| 5.5 | 7/ 1.0 | 3 | 1 | 1.9 | 3J | 3.4 | 1 590 | |
| 30 | 1.25 | 7/0.45 | 1.35 | 0.8 | 1.6 | 23 | .16.8 | 665 |
| 2 | 7/0.6 | 1.8 | 0.8 | 1.7 | 26 | 9.42 | 990 | |
| 3.5 | 7/0.8 | 2.4 | 0.8 | 1.8 | 30 | 5.3 | 1530 |
