CVV-SWA
Application and Description:
For use in duct, tray and for direct burying in ground. The cable is subject to immerse in water all the line.
Reference Standard:
IEC 60502-1

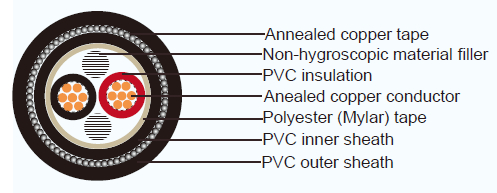

Cable Construction:
Conductor: Stranded annealed copper wires, Sizes: 0.5 mm2 up to 6 mm2 Insulation: Polyvinyl chloride (PVC)
Color : 2-4 cores-Black, White, Red and Green ,More than 4 cores: Black core with marking numbers Filler: Non-hygroscopic material(optional)
Binding tape: Polyester (Mylar) tape (optional) Inner sheath: Polyvinyl chloride (PVC), Black color Armour: Galvanized steel wire
Separator Tape : Polyester (Mylar) tape
Outer sheath: Polyvinyl chloride (PVC), Black color(A special flame retardant can be supplied)
Technical Characteristics:
Maximum conductor temperature 70oC
Circuit voltage not exceeding 600 volts
Test voltage 3500 volts
Cable Parameter:
| NO. OF CORES | CONDUCTOR | THICK- NESS OF INSULATION |
THICK- NESS OF INNER SHEATH |
DIAMETER OF STEEL WIRE ARMOUR |
THICK- NESS OF OUTER SHEATH |
OVERALL DIAMETER | MAXIMUM CONDUCTOR RESISTANCE (AT 20°C) | MINIMUM INSULATION RESISTANCE (AT 70°C) | CABLE WEIGHT | ||
| NOMINAL CROSS- SECTIONAL AREA |
NO.& DIA. OF WIRES |
DIAMETER | |||||||||
| MM2 | MM | MM | MM | MM | MM | MM | OHM/KM | OHM/KM | KG/KM | MM | |
| 2 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 0.8 | 1.8 | 14.5 | 36 | 0.0162 | 300 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 0.8 | 1.8 | 15 | 24.5 | 0.0142 | 320 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 0.8 | 1.8 | 15.5 | 18.1 | 0.0128 | 340 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 0.8 | 1.8 | 16 | 12.1 | 0.0112 | 370 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 0.8 | 1.8 | 17 | 7.41 | 0.0093 | 430 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.25 | 1.8 | 20 | 4.61 | 0.0092 | 670 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 1.25 | 1.8 | 21 | 3.08 | 0.0078 | 760 | |
| 3 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 0.8 | 1.8 | 15 | 36 | 0.0162 | 320 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 0.8 | 1.8 | 15.5 | 24.5 | 0.0142 | 350 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 0.8 | 1.8 | 16 | 18.1 | 0.0128 | 370 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 0.8 | 1.8 | 16.5 | 12.1 | 0.0112 | 410 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 0.8 | 1.8 | 17.5 | 7.41 | 0.0093 | 480 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.25 | 1.8 | 20.5 | 4.61 | 0.0092 | 750 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 1.25 | 1.8 | 22 | 3.08 | 0.0078 | 870 | |
| 4 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 0.8 | 1.8 | 16 | 36 | 0.0162 | 360 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 0.8 | 1.8 | 16.5 | 24.5 | 0.0142 | 390 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 0.8 | 1.8 | 17 | 18.1 | 0.0128 | 420 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 0.8 | 1.8 | 17.5 | 12.1 | 0.0112 | 460 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.25 | 1.8 | 19.5 | 7.41 | 0.0093 | 660 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.25 | 1.8 | 22 | 4.61 | 0.0092 | 860 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 1.25 | 1.8 | 23.5 | 3.08 | 0.0078 | 1010 | |
| 5 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 0.8 | 1.8 | 16.5 | 36 | 0.0162 | 400 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 0.8 | 1.8 | 17.5 | 24.5 | 0.0142 | 430 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 0.8 | 1.8 | 18 | 18.1 | 0.0128 | 470 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.25 | 1.8 | 19.5 | 12.1 | 0.0112 | 640 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.25 | 1.8 | 20.5 | 7.41 | 0.0093 | 760 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.25 | 1.8 | 23.5 | 4.61 | 0.0092 | 990 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 1.25 | 1.8 | 25 | 3.08 | 0.0078 | 1170 | |
| 6 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 0.8 | 1.8 | 17.5 | 36 | 0.0162 | 420 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 0.8 | 1.8 | 18 | 24.5 | 0.0142 | 470 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.25 | 1.8 | 19.5 | 18.1 | 0.0128 | 620 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.25 | 1.8 | 20.5 | 12.1 | 0.0112 | 690 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.25 | 1.8 | 22 | 7.41 | 0.0093 | 820 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.25 | 1.8 | 25 | 4.61 | 0.0092 | 1070 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 1.6 | 1.8 | 27 | 3.08 | 0.0078 | 1420 | |
| 7 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 0.8 | 1.8 | 17.5 | 36 | 0.0162 | 430 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 0.8 | 1.8 | 18 | 24.5 | 0.0142 | 480 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.25 | 1.8 | 19.5 | 18.1 | 0.0128 | 630 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.25 | 1.8 | 20.5 | 12.1 | 0.0112 | 700 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.25 | 1.8 | 22 | 7.41 | 0.0093 | 840 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.25 | 1.8 | 25 | 4.61 | 0.0092 | 1100 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 1.6 | 1.8 | 27 | 3.08 | 0.0078 | 1470 | |
| 8 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.25 | 1.8 | 19.5 | 36 | 0.0162 | 580 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.25 | 1.8 | 20 | 24.5 | 0.0142 | 640 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.25 | 1.8 | 20.5 | 18.1 | 0.0128 | 690 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.25 | 1.8 | 21.5 | 12.1 | 0.0112 | 770 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.25 | 1.8 | 23 | 7.41 | 0.0093 | 930 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.6 | 1.8 | 27 | 4.61 | 0.0092 | 1370 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 1.6 | 1.8 | 29 | 3.08 | 0.0078 | 1640 | |
| 9 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.25 | 1.8 | 20 | 36 | 0.0162 | 640 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.25 | 1.8 | 21 | 24.5 | 0.0142 | 700 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.25 | 1.8 | 21.5 | 18.1 | 0.0128 | 750 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.25 | 1.8 | 22.5 | 12.1 | 0.0112 | 840 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.25 | 1.8 | 24 | 7.41 | 0.0093 | 1010 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.6 | 1.8 | 28.5 | 4.61 | 0.0092 | 1500 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 1.6 | 1.8 | 30.5 | 3.08 | 0.0078 | 1800 | |
|
10 |
0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.25 | 1.8 | 21 | 36 | 0.0162 | 680 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.25 | 1.8 | 22 | 24.5 | 0.0142 | 740 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.25 | 1.8 | 23 | 18.1 | 0.0128 | 810 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.25 | 1.8 | 24 | 12.1 | 0.0112 | 910 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.6 | 1.8 | 26.5 | 7.41 | 0.0093 | 1240 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.6 | 1.8 | 30.5 | 4.61 | 0.0092 | 1620 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 1.6 | 1.9 | 33 | 3.08 | 0.0078 | 1980 | |
|
11 |
0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.25 | 1.8 | 21.5 | 36 | 0.0162 | 710 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.25 | 1.8 | 22.5 | 24.5 | 0.0142 | 790 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.25 | 1.8 | 23.5 | 18.1 | 0.0128 | 850 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.25 | 1.8 | 24.5 | 12.1 | 0.0112 | 960 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.6 | 1.8 | 27 | 7.41 | 0.0093 | 1310 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.6 | 1.8 | 31 | 4.61 | 0.0092 | 1750 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 1.6 | 1.9 | 33.5 | 3.08 | 0.0078 | 2130 | |
|
12 |
0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.25 | 1.8 | 21.5 | 36 | 0.0162 | 720 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.25 | 1.8 | 22.5 | 24.5 | 0.0142 | 800 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.25 | 1.8 | 23.5 | 18.1 | 0.0128 | 860 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.25 | 1.8 | 24.5 | 12.1 | 0.0112 | 980 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.6 | 1.8 | 27 | 7.41 | 0.0093 | 1330 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.6 | 1.8 | 31 | 4.61 | 0.0092 | 1780 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 1.6 | 1.9 | 33.5 | 3.08 | 0.0078 | 2190 | |
|
13 |
0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.25 | 1.8 | 22.5 | 36 | 0.0162 | 760 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.25 | 1.8 | 23.5 | 24.5 | 0.0142 | 840 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.25 | 1.8 | 24 | 18.1 | 0.0128 | 920 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.6 | 1.8 | 26 | 12.1 | 0.0112 | 1190 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.6 | 1.8 | 28 | 7.41 | 0.0093 | 1430 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.6 | 1.8 | 32.5 | 4.61 | 0.0092 | 1910 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 1.6 | 1.9 | 35 | 3.08 | 0.0078 | 2350 | |
|
14 |
0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.25 | 1.8 | 22.5 | 36 | 0.0162 | 770 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.25 | 1.8 | 23.5 | 24.5 | 0.0142 | 850 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.25 | 1.8 | 24 | 18.1 | 0.0128 | 930 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.6 | 1.8 | 26 | 12.1 | 0.0112 | 1200 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.6 | 1.8 | 28 | 7.41 | 0.0093 | 1450 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.6 | 1.8 | 32.5 | 4.61 | 0.0092 | 1950 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 1.6 | 1.9 | 35 | 3.08 | 0.0078 | 2400 | |
|
15 |
0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.25 | 1.8 | 23 | 36 | 0.0162 | 820 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.25 | 1.8 | 24 | 24.5 | 0.0142 | 920 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.25 | 1.8 | 25 | 18.1 | 0.0128 | 1000 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.6 | 1.8 | 27 | 12.1 | 0.0112 | 1280 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.6 | 1.8 | 29 | 7.41 | 0.0093 | 1560 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.6 | 1.9 | 34 | 4.61 | 0.0092 | 2120 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 1.6 | 2 | 37 | 3.08 | 0.0078 | 2600 | |
|
16 |
0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.25 | 1.8 | 23 | 36 | 0.0162 | 830 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.25 | 1.8 | 24 | 24.5 | 0.0142 | 930 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.25 | 1.8 | 25 | 18.1 | 0.0128 | 1010 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.6 | 1.8 | 27 | 12.1 | 0.0112 | 1300 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.6 | 1.8 | 29 | 7.41 | 0.0093 | 1580 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.6 | 1.9 | 34 | 4.61 | 0.0092 | 2160 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 1.6 | 2 | 37 | 3.08 | 0.0078 | 2660 | |
|
17 |
0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.25 | 1.8 | 24 | 36 | 0.0162 | 880 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.25 | 1.8 | 25 | 24.5 | 0.0142 | 980 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.6 | 1.8 | 26.5 | 18.1 | 0.0128 | 1220 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.6 | 1.8 | 28 | 12.1 | 0.0112 | 1390 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.6 | 1.8 | 30 | 7.41 | 0.0093 | 1690 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.6 | 1.9 | 35.5 | 4.61 | 0.0092 | 2320 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 2 | 2 | 39.5 | 3.08 | 0.0078 | 3120 | |
|
18 |
0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.25 | 1.8 | 24 | 36 | 0.0162 | 890 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.25 | 1.8 | 25 | 24.5 | 0.0142 | 990 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.6 | 1.8 | 26.5 | 18.1 | 0.0128 | 1230 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.6 | 1.8 | 28 | 12.1 | 0.0112 | 1400 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.6 | 1.8 | 30 | 7.41 | 0.0093 | 1700 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.6 | 1.9 | 35.5 | 4.61 | 0.0092 | 2350 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 2 | 2 | 39.5 | 3.08 | 0.0078 | 3170 | |
|
19 |
0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.25 | 1.8 | 24 | 36 | 0.0162 | 900 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.25 | 1.8 | 25 | 24.5 | 0.0142 | 1000 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.6 | 1.8 | 26.5 | 18.1 | 0.0128 | 1240 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.6 | 1.8 | 28 | 12.1 | 0.0112 | 1410 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.6 | 1.8 | 30 | 7.41 | 0.0093 | 1730 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.6 | 1.9 | 35.5 | 4.61 | 0.0092 | 2390 | |
| 6 | 7/1.04 | 3.12 | 1 | 1 | 2 | 2 | 39.5 | 3.08 | 0.0078 | 3220 | |
|
20 |
0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.25 | 1.8 | 25 | 36 | 0.0162 | 940 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.6 | 1.8 | 26.5 | 24.5 | 0.0142 | 1200 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.6 | 1.8 | 27.5 | 18.1 | 0.0128 | 1310 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.6 | 1.8 | 29 | 12.1 | 0.0112 | 1500 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.6 | 1.8 | 31.5 | 7.41 | 0.0093 | 1860 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.6 | 2 | 37 | 4.61 | 0.0092 | 2570 | |
| 6 | 7/1.04 | 3.12 | 1 | 1.2 | 2 | 2.1 | 41.5 | 3.08 | 0.0078 | 3500 | |
|
21 |
0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.25 | 1.8 | 25 | 36 | 0.0162 | 950 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.6 | 1.8 | 26.5 | 24.5 | 0.0142 | 1210 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.6 | 1.8 | 27.5 | 18.1 | 0.0128 | 1320 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.6 | 1.8 | 29 | 12.1 | 0.0112 | 1510 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.6 | 1.8 | 31.5 | 7.41 | 0.0093 | 1870 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 1.6 | 2 | 37 | 4.61 | 0.0092 | 2590 | |
| 6 | 7/1.04 | 3.12 | 1 | 1.2 | 2 | 2.1 | 41.5 | 3.08 | 0.0078 | 3540 | |
|
22 |
0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.6 | 1.8 | 26.5 | 36 | 0.0162 | 1150 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.6 | 1.8 | 27.5 | 24.5 | 0.0142 | 1280 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.6 | 1.8 | 28.5 | 18.1 | 0.0128 | 1400 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.6 | 1.8 | 30 | 12.1 | 0.0112 | 1600 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.6 | 1.9 | 33 | 7.41 | 0.0093 | 2000 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 2 | 2.1 | 39.5 | 4.61 | 0.0092 | 3040 | |
| 6 | 7/1.04 | 3.12 | 1 | 1.2 | 2 | 2.2 | 43.5 | 3.08 | 0.0078 | 3810 | |
|
23 |
0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.6 | 1.8 | 26.5 | 36 | 0.0162 | 1160 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.6 | 1.8 | 27.5 | 24.5 | 0.0142 | 1290 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.6 | 1.8 | 28.5 | 18.1 | 0.0128 | 1420 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.6 | 1.8 | 30 | 12.1 | 0.0112 | 1620 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.6 | 1.9 | 33 | 7.41 | 0.0093 | 2030 | |
| 4 | 7/0.85 | 2.55 | 1 | 1 | 2 | 2.1 | 39.5 | 4.61 | 0.0092 | 3080 | |
| 6 | 7/1.04 | 3.12 | 1 | 1.2 | 2 | 2.2 | 43.5 | 3.08 | 0.0078 | 3870 | |
|
24 |
0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.6 | 1.8 | 27.5 | 36 | 0.0162 | 1210 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.6 | 1.8 | 28.5 | 24.5 | 0.0142 | 1340 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.6 | 1.8 | 29.5 | 18.1 | 0.0128 | 1470 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.6 | 1.8 | 31.5 | 12.1 | 0.0112 | 1680 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.6 | 1.9 | 34.5 | 7.41 | 0.0093 | 2110 | |
| 4 | 7/0.85 | 2.55 | 1 | 1.2 | 2 | 2.1 | 42 | 4.61 | 0.0092 | 3260 | |
| 6 | 7/1.04 | 3.12 | 1 | 1.2 | 2 | 2.2 | 45.5 | 3.08 | 0.0078 | 4010 | |
|
25 |
0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.6 | 1.8 | 28 | 36 | 0.0162 | 1250 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.6 | 1.8 | 29 | 24.5 | 0.0142 | 1390 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.6 | 1.8 | 30 | 18.1 | 0.0128 | 1530 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.6 | 1.8 | 32 | 12.1 | 0.0112 | 1760 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.6 | 1.9 | 35 | 7.41 | 0.0093 | 2200 | |
| 4 | 7/0.85 | 2.55 | 1 | 1.2 | 2 | 2.1 | 43 | 4.61 | 0.0092 | 3400 | |
| 6 | 7/1.04 | 3.12 | 1 | 1.2 | 2 | 2.2 | 46.5 | 3.08 | 0.0078 | 4220 | |
|
26 |
0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.6 | 1.8 | 28 | 36 | 0.0162 | 1260 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.6 | 1.8 | 29 | 24.5 | 0.0142 | 1400 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.6 | 1.8 | 30 | 18.1 | 0.0128 | 1540 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.6 | 1.8 | 32 | 12.1 | 0.0112 | 1780 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.6 | 1.9 | 35 | 7.41 | 0.0093 | 2220 | |
| 4 | 7/0.85 | 2.55 | 1 | 1.2 | 2 | 2.1 | 43 | 4.61 | 0.0092 | 3440 | |
| 6 | 7/1.04 | 3.12 | 1 | 1.2 | 2 | 2.2 | 46.5 | 3.08 | 0.0078 | 4270 | |
|
27 |
0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.6 | 1.8 | 28 | 36 | 0.0162 | 1270 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.6 | 1.8 | 29 | 24.5 | 0.0142 | 1410 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.6 | 1.8 | 30 | 18.1 | 0.0128 | 1550 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.6 | 1.8 | 32 | 12.1 | 0.0112 | 1790 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.6 | 1.9 | 35 | 7.41 | 0.0093 | 2240 | |
| 4 | 7/0.85 | 2.55 | 1 | 1.2 | 2 | 2.1 | 43 | 4.61 | 0.0092 | 3470 | |
| 6 | 7/1.04 | 3.12 | 1 | 1.2 | 2 | 2.2 | 46.5 | 3.08 | 0.0078 | 4320 | |
|
28 |
0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.6 | 1.8 | 28.5 | 36 | 0.0162 | 1310 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.6 | 1.8 | 30 | 24.5 | 0.0142 | 1480 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.6 | 1.8 | 31 | 18.1 | 0.0128 | 1630 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.6 | 1.8 | 33 | 12.1 | 0.0112 | 1880 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.6 | 1.9 | 36 | 7.41 | 0.0093 | 2350 | |
| 4 | 7/0.85 | 2.55 | 1 | 1.2 | 2 | 2.2 | 44.5 | 4.61 | 0.0092 | 3670 | |
| 6 | 7/1.04 | 3.12 | 1 | 1.2 | 2 | 2.3 | 48 | 3.08 | 0.0078 | 4550 | |
|
29 |
0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.6 | 1.8 | 28.5 | 36 | 0.0162 | 1320 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.6 | 1.8 | 30 | 24.5 | 0.0142 | 1490 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.6 | 1.8 | 31 | 18.1 | 0.0128 | 1640 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.6 | 1.9 | 33 | 12.1 | 0.0112 | 1900 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.6 | 1.9 | 36 | 7.41 | 0.0093 | 2370 | |
| 4 | 7/0.85 | 2.55 | 1 | 1.2 | 2 | 2.2 | 44.5 | 4.61 | 0.0092 | 3700 | |
| 6 | 7/1.04 | 3.12 | 1 | 1.2 | 2 | 2.3 | 48 | 3.08 | 0.0078 | 4600 | |
|
30 |
0.5 | 7/0.30 | 0.9 | 0.8 | 1 | 1.6 | 1.8 | 28.5 | 36 | 0.0162 | 1330 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1 | 1.6 | 1.8 | 30 | 24.5 | 0.0142 | 1500 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1 | 1.6 | 1.8 | 31 | 18.1 | 0.0128 | 1650 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1 | 1.6 | 1.9 | 33 | 12.1 | 0.0112 | 1910 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1 | 1.6 | 1.9 | 36 | 7.41 | 0.0093 | 2400 | |
| 4 | 7/0.85 | 2.55 | 1 | 1.2 | 2 | 2.2 | 44.5 | 4.61 | 0.0092 | 3740 | |
| 6 | 7/1.04 | 3.12 | 1 | 1.2 | 2 | 2.3 | 48 | 3.08 | 0.0078 | 4660 | |
