CVVS
Application and Description:
For used in control circuits required electrostatic shielding in underground duct, conduit and open air.
Reference Standard:
IEC 60502-1

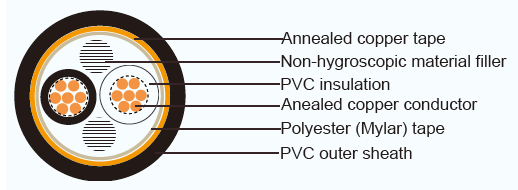

Cable Construction:
Conductor: Stranded annealed copper wires, Sizes: 1.5 mm2 up to 10 mm2 Insulation: Polyvinyl chloride (PVC)
Color : 2-4 cores-Black, White, Red and Green ,More than 4 cores: Black core with marking numbers Filler: Non-hygroscopic material(optional)
Binding tape: Polyester (Mylar) tape (optional) Shield: Annealed copper tape, 0.1mm
Outer sheath: Polyvinyl chloride (PVC), Black color (A special flame retardant can be supplied)
Technical Characteristics:
Maximum conductor temperature 70oC
Circuit voltage not exceeding 600 volts
Test voltage 3500 volts
Cable Parameter:
| NO. OF CORES | CONDUCTOR | THICKNESS OF INSULATION | THICKNESS OF OUTER SHEATH |
OVERALL DIAMETER | MAXIMUM CONDUCTOR RESISTANCE (AT 20°C) | CABLE WEIGHT | ||
| NOMINAL CROSS- SECTIONAL AREA |
NO.& DIA. OF WIRES |
DIAMETER | ||||||
| MM2 | MM | MM | MM | MM | MM | OHM/KM | KG/KM | |
| 2 | 1.5 | 7 / 0.53 | 1.59 | 0.8 | 1.8 | 11.4 | 12.1 | 178 |
| 2.5 | 7 / 0.67 | 2.01 | 0.8 | 1.8 | 12.3 | 7.41 | 213 | |
| 4 | 7 / 0.85 | 2.55 | 1.0 | 1.8 | 14.2 | 4.61 | 287 | |
| 6 | 7 / 1.04 | 3.12 | 1.0 | 1.8 | 15.4 | 3.08 | 350 | |
| 10 | 7 / 1.35 | 4.05 | 1.0 | 1.8 | 16.9 | 1.83 | 413 | |
| 3 | 1.5 | 7 / 0.53 | 1.59 | 0.8 | 1.8 | 11.9 | 12.1 | 209 |
| 2.5 | 7 / 0.67 | 2.01 | 0.8 | 1.8 | 12.9 | 7.41 | 254 | |
| 4 | 7 / 0.85 | 2.55 | 1.0 | 1.8 | 15.0 | 4.61 | 351 | |
| 6 | 7 / 1.04 | 3.12 | 1.0 | 1.8 | 16.2 | 3.08 | 435 | |
| 10 | 7 / 1.35 | 4.05 | 1.0 | 1.8 | 17.9 | 1.83 | 537 | |
| 4 | 1.5 | 7 / 0.53 | 1.59 | 0.8 | 1.8 | 12.8 | 12.1 | 247 |
| 2.5 | 7 / 0.67 | 2.01 | 0.8 | 1.8 | 13.9 | 7.41 | 305 | |
| 4 | 7 / 0.85 | 2.55 | 1.0 | 1.8 | 16.2 | 4.61 | 425 | |
| 6 | 7 / 1.04 | 3.12 | 1.0 | 1.8 | 17.6 | 3.08 | 533 | |
| 10 | 7 / 1.35 | 4.05 | 1.0 | 1.8 | 19.5 | 1.83 | 675 | |
| 5 | 1.5 | 7 / 0.53 | 1.59 | 0.8 | 1.8 | 13.8 | 12.1 | 287 |
| 2.5 | 7 / 0.67 | 2.01 | 0.8 | 1.8 | 15.0 | 7.41 | 357 | |
| 4 | 7 / 0.85 | 2.55 | 1.0 | 1.8 | 17.3 | 4.61 | 500 | |
| 6 | 7 / 1.04 | 3.12 | 1.0 | 1.8 | 19.2 | 3.08 | 636 | |
| 10 | 7 / 1.35 | 4.05 | 1.0 | 1.8 | 21.4 | 1.83 | 820 | |
| 6 | 1.5 | 7 / 0.53 | 1.59 | 0.8 | 1.8 | 14.8 | 12.1 | 328 |
| 2.5 | 7 / 0.67 | 2.01 | 0.8 | 1.8 | 16.1 | 7.41 | 412 | |
| 4 | 7 / 0.85 | 2.55 | 1.0 | 1.8 | 19.0 | 4.61 | 586 | |
| 6 | 7 / 1.04 | 3.12 | 1.0 | 1.8 | 20.8 | 3.08 | 744 | |
| 10 | 7 / 1.35 | 4.05 | 1.0 | 1.8 | 23.2 | 1.83 | 968 | |
| 7 | 1.5 | 7 / 0.53 | 1.59 | 0.8 | 1.8 | 14.8 | 12.1 | 349 |
| 2.5 | 7 / 0.67 | 2.01 | 0.8 | 1.8 | 16.1 | 7.41 | 442 | |
| 4 | 7 / 0.85 | 2.55 | 1.0 | 1.8 | 19.0 | 4.61 | 633 | |
| 6 | 7 / 1.04 | 3.12 | 1.0 | 1.8 | 20.8 | 3.08 | 810 | |
| 10 | 7 / 1.35 | 4.05 | 1.0 | 1.8 | 23.2 | 1.83 | 1,072 | |
| 8 | 1.5 | 7 / 0.53 | 1.59 | 0.8 | 1.8 | 15.8 | 12.1 | 392 |
| 2.5 | 7 / 0.67 | 2.01 | 0.8 | 1.8 | 17.3 | 7.41 | 498 | |
| 4 | 7 / 0.85 | 2.55 | 1.0 | 1.8 | 20.5 | 4.61 | 718 | |
| 6 | 7 / 1.04 | 3.12 | 1.0 | 1.8 | 21.7 | 3.08 | 919 | |
| 10 | 7 / 1.35 | 4.05 | 1.0 | 1.8 | 24.5 | 1.83 | 1,224 | |
| 10 | 1.5 | 7 / 0.53 | 1.59 | 0.8 | 1.8 | 18.2 | 12.1 | 488 |
| 2.5 | 7 / 0.67 | 2.01 | 0.8 | 1.8 | 19.9 | 7.41 | 622 | |
| 4 | 7 / 0.85 | 2.55 | 1.0 | 1.8 | 23.8 | 4.61 | 902 | |
| 6 | 7 / 1.04 | 3.12 | 1.0 | 1.8 | 22.4 | 3.08 | 1,159 | |
| 10 | 7 / 1.35 | 4.05 | 1.0 | 1.8 | 29.6 | 1.83 | 1,552 | |
| 12 | 1.5 | 7 / 0.53 | 1.59 | 0.8 | 1.8 | 18.7 | 12.1 | 542 |
| 2.5 | 7 / 0.67 | 2.01 | 0.8 | 1.8 | 20.5 | 7.41 | 697 | |
| 4 | 7 / 0.85 | 2.55 | 1.0 | 1.8 | 24.6 | 4.61 | 1,018 | |
| 6 | 7 / 1.04 | 3.12 | 1.0 | 1.8 | 27.0 | 3.08 | 1,316 | |
| 10 | 7 / 1.35 | 4.05 | 1.0 | 1.8 | 30.5 | 1.83 | 1,789 | |
| 15 | 1.5 | 7 / 0.53 | 1.59 | 0.8 | 1.8 | 20.0 | 12.1 | 637 |
| 2.5 | 7 / 0.67 | 2.01 | 0.8 | 1.8 | 22.1 | 7.41 | 827 | |
| 4 | 7 / 0.85 | 2.55 | 1.0 | 1.8 | 26.4 | 4.61 | 1,216 | |
| 6 | 7 / 1.04 | 3.12 | 1.0 | 1.8 | 29.1 | 3.08 | 1,582 | |
| 20 | 1.5 | 7 / 0.53 | 1.59 | 0.8 | 1.8 | 22.1 | 12.1 | 796 |
| 2.5 | 7 / 0.67 | 2.01 | 0.8 | 1.8 | 24.5 | 7.41 | 1,041 | |
| 4 | 7 / 0.85 | 2.55 | 1.0 | 1.8 | 29.5 | 4.61 | 1,547 | |
| 6 | 7 / 1.04 | 3.12 | 1.0 | 1.8 | 32.5 | 3.08 | 2,026 | |
|
30 |
1.5 | 7 / 0.53 | 1.59 | 0.8 | 1.8 | 26.3 | 12.1 | 1,122 |
| 2.5 | 7 / 0.67 | 2.01 | 0.8 | 1.8 | 28.2 | 7.41 | 1,482 | |
| 4 | 7 / 0.85 | 2.55 | 1.0 | 1.9 | 35.6 | 4.61 | 2,244 | |
