EV/CV
Application and Description:
For general purpose power distribution in wet or dry locations, installed in air, in conduit or duct, or directly buried.
Name Code:
E: Polyethylene
C: Cross-linked polyethylene
V: Vinyl

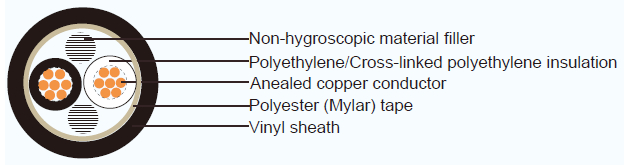

Cable Construction:
Conductor: Circular, circuar or segmental compacted stranded annealed copper wires
Seperator: A proper separator may be applied to a conductor
Insulation: Polyethylene/Cross-linked polyethylene
Color : 2 cores- Black and white
3 cores- Black, white and red
4 cores- Black, white, red and green
Filler: Non-hygroscopic material(optional)
Binding tape: Polyester (Mylar) tape (optional)
Sheath: Vinyl, Black color
Technical Characteristics:
Maximum conductor temperature 90oC
Circuit voltage not exceeding 600 volts
Cable Parameter:
| NO. OF CORES | NOMINAL SECTIONAL AREA | NO. OF WIRE | DIAMETER OF CONDUCTOR (APPROX.) | THICKNESS OF INSULATION | THICKNESS OF SHEATH |
OVERALL DIAMETER (APPROX.) | MAXIMUM DC. RESISTANCE OF CDR. AT 20°C |
TEST VOLTAGE | CABLE WEIGHT (APPROX.) |
| MM^2 | MM | MM | MM | MM | OHM / KM | V | KG / KM | ||
| 1 | 2 | 7/0.6 | 1.8 | 0.8 | 1.5 | 6.4 | 9.24 | 1500 | 60 |
| 3.5 | 7/0.8 | 2.4 | 0.8 | 1.5 | 7 | 5.2 | 1500 | 80 | |
| 5.5 | 7/1.0 | 3 | 1 | 1.5 | 8 | 3.33 | 1500 | 115 | |
| 8 | 7/1.2 | 3.6 | 1 | 1.5 | 8.6 | 2.31 | 1500 | 135 | |
| 8 | compacted | 3.4 | 1 | 1.5 | 8.4 | 2.29 | 1500 | 135 | |
| 14 | 7/1.6 | 4.8 | 1 | 1.5 | 9.8 | 1.31 | 2000 | 205 | |
| 14 | compactcd | 4.4 | 1 | 1.5 | 9.4 | 1.3 | 2000 | 200 | |
| 22 | 7/2.0 | 6 | 1.2 | 1.5 | 11.5 | 0.824 | 2000 | 300 | |
| 22 | compacted | 5.5 | 1.2 | 1.5 | 11 | 0.832 | 2000 | 290 | |
| 38 | 7/2.6 | 7.8 | 1.2 | 1.5 | 13.5 | 0.487 | 2500 | 460 | |
| 38 | compacted | 7.3 | 1.2 | 1.5 | 13 | 0.481 | 2500 | 455 | |
| 60 | 19/2.0 | 10 | 1.5 | 1.5 | 16 | 0.303 | 2500 | 700 | |
| 60 | compacted | 9.3 | 1.5 | 1.5 | 15.5 | 0.305 | 2500 | 685 | |
| 100 | 19/2.6 | 13 | 2 | 1.5 | 20 | 0.18 | 2500 | 1150 | |
| 100 | compacted | 12 | 2 | 1.5 | 19 | 0.183 | 2500 | 1120 | |
| 150 | 37/2.3 | 16.1 | 2 | 1.5 | 24.5 | 0.118 | 3000 | 1680 | |
| 150 | compacted | 14.7 | 2 | 1.5 | 22.5 | 0.122 | 3000 | 1600 | |
| 200 | 37/2.6 | 18.2 | 2.5 | 1.7 | 27.5 | 0.0922 | 3000 | 2150 | |
| 200 | compacted | 17 | 2.5 | 1.7 | 26.5 | 0.0915 | 3000 | 2150 | |
| 250 | 61/2.3 | 20.7 | 2.5 | 1.8 | 30 | 0.0722 | 3000 | 2740 | |
| 250 | compacted | 19 | 2.5 | 1.8 | 28.5 | 0.0739 | 3000 | 2670 | |
| 325 | 61/2.6 | 23.4 | 2.5 | 1.9 | 33.5 | 0.0565 | 3000 | 3450 | |
| 325 | compacted | 21.7 | 2.5 | 1.9 | 31.5 | 0.0568 | 3000 | 3410 | |
| 400 | 61/2.9 | 26.1 | 2.5 | 2 | 34.5 | 0.0373 | 3000 | 4230 | |
| 400 | compacted | 24.1 | 2.5 | 2 | 34.5 | 0.0369 | 3000 | 4160 | |
| 500 | 61/3.2 | 28.8 | 3 | 2.1 | 40 | 0.0304 | 3500 | 5190 | |
| 1 | 500 | compacted | 26.9 | 3 | 2.1 | 43 | 0.0308 | 3500 | 5090 |
| 600 | 91/2.9 | 31.9 | 3 | 2.3 | 41 | 0.0369 | 3500 | 6280 | |
| 600 | compacted | 29.5 | 3 | 2.2 | 38.5 | 0.0369 | 3500 | 6170 | |
| 800 | 127/2.8 | 36.4 | 3.5 | 2.5 | 49 | 0.0234 | 3500 | 8160 | |
| 800 | compacted | 34 | 3.5 | 2.5 | 47.5 | 0.0231 | 3500 | 8220 | |
| 800 | segmental | 34 | 3.5 | 2.5 | 47.5 | 0.0231 | 3500 | 8220 | |
| 1000 | 127/3.2 | 41.6 | 3.5 | 2.6 | 54 | 0.0179 | 3500 | 10600 | |
| 1000 | compacted | 38 | 3.5 | 2.6 | 51.5 | 0.0185 | 3500 | 10200 | |
| 1000 | segmental | 38 | 3.5 | 2.6 | 51.5 | 0.0187 | 3500 | 10300 | |
| 2 | 2 | 7/0.6 | 1.8 | 0.8 | 1.5 | 10.5 | 9.42 | 1500 | 120 |
| 3.5 | 7/0.8 | 2.4 | 0.8 | 1.5 | 11.5 | 5.3 | 1500 | 165 | |
| 5.5 | 7/1.0 | 3 | 1 | 1.5 | 13.5 | 3.4 | 1500 | 235 | |
| 8 | 7/1.2 | 3.6 | 1 | 1.5 | 15 | 2.36 | 1500 | 300 | |
| 8 | compacted | 3.4 | 1 | 1.5 | 14.5 | 2.34 | 1500 | 290 | |
| 14 | 7/1.6 | 4.8 | 1 | 1.5 | 17.5 | 1.33 | 2000 | 450 | |
| 14 | compactcd | 4.4 | 1 | 1.5 | 16.5 | 1.34 | 2000 | 435 | |
| 22 | 7/2.0 | 6 | 1.2 | 1.5 | 21 | 0.84 | 2000 | 660 | |
| 22 | compacted | 5.5 | 1.2 | 1.5 | 19.5 | 0.849 | 2000 | 635 | |
| 38 | 7/2.6 | 7.8 | 1.2 | 1.5 | 24 | 0.497 | 2500 | 1030 | |
| 38 | compacted | 7.3 | 1.2 | 1.5 | 24 | 0.491 | 2500 | 1020 | |
| 60 | 19/2.0 | 10 | 1.5 | 1.5 | 31 | 0.309 | 2500 | 1620 | |
| 60 | compacted | 9.3 | 1.5 | 1.5 | 29 | 0.311 | 2500 | 1570 | |
| 100 | 19/2.6 | 13 | 2 | 1.5 | 39 | 0.184 | 2500 | 2690 | |
| 100 | compacted | 12 | 2 | 1.5 | 37 | 0.187 | 2500 | 2580 | |
| 150 | 37/2.3 | 16.1 | 2 | 1.5 | 46 | 0.124 | 3000 | 3920 | |
| 150 | compacted | 14.7 | 2 | 1.5 | 43 | 0.12 | 3000 | 3710 | |
| 200 | 37/2.6 | 18.2 | 2.5 | 1.7 | 53 | 0.094 | 3000 | 5060 | |
| 200 | compacted | 17 | 2.5 | 1.7 | 50 | 0.0933 | 3000 | 4980 | |
| 250 | 61/2.3 | 20.7 | 2.5 | 1.8 | 58 | 0.0736 | 3000 | 6420 | |
| 250 | compacted | 19 | 2.5 | 1.8 | 54 | 0.0754 | 3000 | 6140 | |
| 325 | 61/2.6 | 23.4 | 2.5 | 1.9 | 64 | 0.0576 | 3000 | 8040 | |
| 325 | compacted | 21.7 | 2.5 | 1.9 | 60 | 0.0579 | 3000 | 7820 | |
| 3 | 2 | 7/0.6 | 1.8 | 0.8 | 1.5 | 11 | 9.42 | 1500 | 150 |
| 3.5 | 7/0.8 | 2.4 | 0.8 | 1.5 | 12.5 | 5.3 | 1500 | 210 | |
| 5.5 | 7/1.0 | 3 | 1 | 1.5 | 14.5 | 3.4 | 1500 | 300 | |
| 8 | 7/1.2 | 3.6 | 1 | 1.5 | 16 | 2.36 | 1500 | 385 | |
| 8 | compacted | 3.4 | 1 | 1.5 | 15.5 | 2.34 | 1500 | 380 | |
| 14 | 7/1.6 | 4.8 | 1 | 1.5 | 18.5 | 1.33 | 2000 | 600 | |
| 14 | compactcd | 4.4 | 1 | 1.5 | 17.5 | 1.34 | 2000 | 585 | |
| 22 | 7/2.0 | 6 | 1.2 | 1.5 | 22 | 0.84 | 2000 | 890 | |
| 22 | compacted | 5.5 | 1.2 | 1.5 | 21 | 0.849 | 2000 | 860 | |
| 38 | 7/2.6 | 7.8 | 1.2 | 1.5 | 26 | 0.497 | 2500 | 1410 | |
| 38 | compacted | 7.3 | 1.2 | 1.5 | 25 | 0.491 | 2500 | 1410 | |
| 60 | 19/2.0 | 10 | 1.5 | 1.5 | 33 | 0.309 | 2500 | 2220 | |
| 60 | compacted | 9.3 | 1.5 | 1.5 | 31 | 0.311 | 2500 | 2170 | |
| 100 | 19/2.6 | 13 | 2 | 1.5 | 42 | 0.184 | 2500 | 3710 | |
| 100 | compacted | 12 | 2 | 1.5 | 40 | 0.187 | 2500 | 3580 | |
| 150 | 37/2.3 | 16.1 | 2 | 1.5 | 49 | 0.124 | 3000 | 5440 | |
| 150 | compacted | 14.7 | 2 | 1.5 | 46 | 0.12 | 3000 | 5180 | |
| 200 | 37/2.6 | 18.2 | 2.5 | 1.7 | 57 | 0.094 | 3000 | 7071 | |
| 200 | compacted | 17 | 2.5 | 1.7 | 54 | 0.0933 | 3000 | 6940 | |
| 250 | 61/2.3 | 20.7 | 2.5 | 1.8 | 62 | 0.0736 | 3000 | 8940 | |
| 250 | compacted | 19 | 2.5 | 1.8 | 58 | 0.0754 | 3000 | 8600 | |
| 325 | 61/2.6 | 23.4 | 2.5 | 1.9 | 94 | 0.0576 | 3000 | 11300 | |
| 325 | compacted | 21.7 | 2.5 | 1.9 | 65 | 0.0579 | 3000 | 11000 | |
| 4 | 2.5 | 7/0.6 | 1.8 | 0.8 | 1.5 | 12 | 9.42 | 1500 | 180 |
| 3.5 | 7/0.8 | 2.4 | 0.8 | 1.5 | 13.5 | 5.3 | 1500 | 260 | |
| 5.5 | 7/1.0 | 3 | 1 | 1.5 | 16 | 3.4 | 1500 | 370 | |
| 8 | 7/1.2 | 3.6 | 1 | 1.5 | 17 | 2.36 | 1500 | 485 | |
| 8 | compacted | 3.4 | 1 | 1.5 | 16.5 | 2.34 | 1500 | 480 | |
| 14 | 7/1.6 | 4.8 | 1 | 1.5 | 20 | 1.33 | 2000 | 765 | |
| 14 | compactcd | 4.4 | 1 | 1.5 | 19 | 1.34 | 2000 | 745 | |
| 22 | 7/2.0 | 6 | 1.2 | 1.5 | 24 | 0.84 | 2000 | 1160 | |
| 22 | compacted | 5.5 | 1.2 | 1.5 | 23 | 0.849 | 2000 | 1120 | |
| 38 | 7/2.6 | 7.8 | 1.2 | 1.5 | 29 | 0.497 | 2500 | I840 | |
4 |
38 | compacted | 7.3 | 1.2 | 1.5 | 28 | 0.491 | 2500 | I830 |
| 60 | 19/2.0 | 10 | 1.5 | 1.5 | 37 | 0.309 | 2500 | 2890 | |
| 60 | compacted | 9.3 | 1.5 | 1.5 | 35 | 0.311 | 2500 | 2830 | |
| 100 | 19/2.6 | 13 | 2 | 1.5 | 47 | 0.184 | 2500 | 4840 | |
| 100 | compacted | 12 | 2 | 1.5 | 44 | 0.187 | 2500 | 4680 | |
| 150 | 37/2.3 | 16.1 | 2 | 1.5 | 55 | 0.124 | 3000 | 7120 | |
| 150 | compacted | 14.7 | 2 | 1.5 | SI | 0.12 | 3000 | 6790 | |
| 200 | 37/2.6 | 18.2 | 2.5 | 1.7 | 63 | 0.094 | 3000 | 9170 | |
| 200 | compacted | 17 | 2.5 | 1.7 | 60 | 0.0933 | 3000 | 9100 | |
| 250 | 61/2.3 | 20.7 | 2.5 | 1.8 | 70 | 0.0736 | 3000 | 11700 | |
| 250 | compacted | 19 | 2.5 | 1.8 | 65 | 0.0754 | 3000 | 11300 | |
| 325 | 61/2.6 | 23.4 | 2.5 | 1.9 | 77 | 0.0576 | 3000 | 14800 | |
| 325 | compacted | 21.7 | 2.5 | 1.9 | 72 | 0.0579 | 3000 | 14500 |
