VVF

Application and Description:

For exposed fix installation in dry location, surface wiring, concealed wiring in wooden partition or above ceiling, embedded in plaster.

Name Code:

V: Polyvinyl chloride (PVC)
V: Polyvinyl chloride (PVC)
F : Flat type

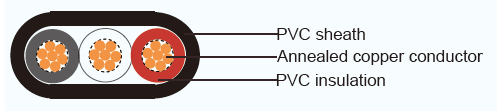

Cable Construction:

Conductor: Solid, circular stranded, circuar or segmental compacted stranded annealed copper wires
Insulation: Polyvinyl chloride (PVC)
Color :
2 cores- Black and white
3 cores- Black, white and red
Filler: Non-hygroscopic material(optional)
Binding tape: Polyester (Mylar) tape (optional)
Sheath: Polyvinyl chloride (PVC), Black color, other colors are upon request.

Technical Characteristics:

Maximum conductor temperature 70oC
Circuit voltage not exceeding 600 volts

Cable Parameter:

NO. OF CORES	CONDUCTOR		INSULATION THICKNESS	SHEATH THICKNESS	OVERALL DIAMETER		MAXIMUM CONTINUOUS CURRENT RATING IN FREE AIR	MIN. INSULATION RESISTANCE (AT20°C)	CABLE WEIGHT
	SIZE	NO. & DIA. OF WIRES
					LOWER LIMIT	UPPER LIMIT
	MM2	NO./MM	MM	MM	MM	MM	A	MOHM/KM	KG/KM
2	1	1/1.13	0.8	1.4	5.2 x 8.0	6.4 x 9.4	13	0.0141	75
2	1	7/0.40	0.8	1.4	5.4 x 8.0	6.6 x 9.8	13	0.0135	75
2	1.5	1/1.38	0.8	1.4	5.6 x 8.4	6.6 x 10.0	17	0.0123	90
2	1.5	7/0.50	0.8	1.4	5.6 x 8.6	7.0 x 10.5	17	0.0116	90
2	2.5	1/1.78	0.8	1.4	5.8 x 9.2	7.2 x 11.0	22	0.0102	110
2	2.5	7/0.67	0.8	1.4	6.2 x 9.6	7.4 x 11.5	22	0.0093	110
2	4	1/2.25	0.9	1.4	6.6 x 10.5	7.8 x 12.5	30	0.0094	160
2	4	7/0.85	0.9	1.4	6.8 x 11.0	8.2 x 13.0	30	0.0085	160
2	6	7/1.04	0.9	1.4	7.4 x 12.0	8.8 x 14.5	37	0.0073	220
2	10	7/1.35	1.1	1.5	8.8 x 15.0	10.5 x 17.0	52	0.0069	340
2	16	7/1.70	1.1	1.5	9.8 x 17.0	11.5 x 19.5	69	0.0057	480
2	25	7/2.14	1.3	1.6	11.5 x 20.5	13.5 x 23.5	91	0.0054	720
2	35	19/1.53	1.3	1.7	13.0 x 23.0	15.0 x 26.5	112	0.0047	940
