VV/VVR
Application and Description:
For exposed fix installation in dry location, surface wiring, concealed wiring in wooden partition or above ceiling, embedded in plaster.
Name Code:
V: Polyvinyl chloride (PVC)
V: Polyvinyl chloride (PVC)
R : Round type

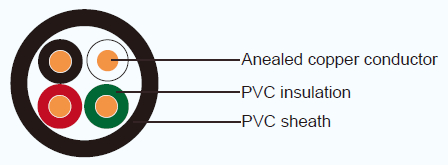

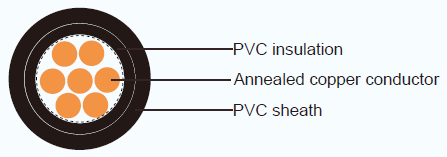

Cable Construction:
Conductor: Solid, circular stranded, circuar or segmental compacted stranded annealed copper wires
Insulation: Polyvinyl chloride (PVC)
Color :
1 core- Black
2 cores- Black and white
3 cores- Black, white and red
4 cores- Black, white, red and green
Filler: Non-hygroscopic material(optional)
Binding tape: Polyester (Mylar) tape (optional)
Sheath: Polyvinyl chloride (PVC), Black colorr, other colors are upon request.
Technical Characteristics:
Maximum conductor temperature 70oC
Circuit voltage not exceeding 600 volts
Cable Parameter:
| DIAMETER /NOMINAL SECTIONAL AREA |
NO. OF WIRE | DIAMETER OF CONDUCTOR (APPROX.) | THICKNESS OF INSULATION | THICKNESS OF SHEATH |
OVERALL DIAMETER (APPROX.) | MAXIMUM DC. RESISTANCE OF CDR. AT 20°C |
TEST VLTAGE | INSULATION RESISTANCE |
CABLE WEIGHT (APPROX.) |
| MM/MM^2 | MM | MM | MM | MM | OHM / KM | V | KOHM / KM | KG / KM | |
| 1 core | |||||||||
| 1 | solid | 1.0 | 0.8 | 1.5 | 5.6 | 22.8 | 1500 | 50 | 41 |
| 1.2 | solid | 1.2 | 0.8 | 1.5 | 5.8 | 15.8 | 1500 | 50 | 46 |
| 1.6 | solid | 1.6 | 0.8 | 1.5 | 6.2 | 8.92 | 1500 | 50 | 60 |
| 2.0 | solid | 2.0 | 0.8 | 1.5 | 6.6 | 5.65 | 1500 | 50 | 75 |
| 2.6 | solid | 2.6 | 1 | 1.5 | 7.6 | 3.35 | 1500 | 50 | 105 |
| 3.2 | solid | 3.2 | 1.2 | 1.5 | 8.6 | 2.21 | 1500 | 50 | 145 |
| 2 | 7/0.6 | 1.8 | 0.8 | 1.5 | 6.4 | 9.24 | 1500 | 50 | 65 |
| 3.5 | 7/O.8 | 2.4 | 0.8 | 1.5 | 7.0 | 5.20 | 1500 | 50 | 85 |
| 5.5 | 7/1.0 | 3.0 | 0.8 | 1.5 | 8.0 | 3.33 | 1500 | 50 | 115 |
| 8 | 7/1.2 | 3.6 | 1.2 | 1.5 | 9.0 | 2.31 | 1500 | 50 | 155 |
| 8 | compacted | 3.4 | 1.2 | 1.5 | 8.8 | 2.29 | 1500 | 50 | 150 |
| 14 | 7/1.6 | 4.8 | 1.4 | 1.5 | 11.0 | 1.3 | 2000 | 40 | 235 |
| 14 | compacted | 4.4 | 1.4 | 1.5 | 10.5 | 1.31 | 2000 | 40 | 225 |
| 22 | 7/2.0 | 6.0 | 1.6 | 1.5 | 12.5 | 0.824 | 2000 | 40 | 335 |
| 22 | compacted | 5.5 | 1.6 | 1.5 | 12.0 | 0.832 | 2000 | 40 | 320 |
| 38 | 7/2.6 | 7.8 | 1.8 | 1.5 | 14.5 | 0.847 | 2500 | 40 | 515 |
| 38 | 19/1.6 | 8.0 | 1.8 | 1.5 | 15.0 | 0.479 | 2500 | 40 | 520 |
| 38 | compacted | 7.3 | 1.8 | 1.5 | 14.0 | 0.481 | 2500 | 40 | 510 |
| 60 | 19/2.0 | 10.0 | 1.8 | 1.5 | 17.0 | 0.303 | 2500 | 30 | 750 |
| 60 | compacted | 9.3 | 1.8 | 1.5 | 16.0 | 0.305 | 2500 | 30 | 735 |
| 100 | 19/2.6 | 13.0 | 2.0 | 1.5 | 20 | 0.180 | 2500 | 30 | 1200 |
| 100 | compacted | 12 | 2.0 | 1.5 | 19.0 | 0.183 | 2500 | 30 | 1 160 |
| 150 | 37/2.3 | 16.1 | 2.2 | 1.6 | 24 | 0.118 | 3000 | 20 | 1760 |
| 150 | compacted | 14.7 | 2.2 | 1.6 | 23 | 0.122 | 3000 | 30 | 1690 |
| 200 | 37/2.6 | 18.2 | 2.4 | 1.7 | 21 | 0.0922 | 3000 | 20 | 2220 |
| 200 | compacted | 17 | 2.4 | 1.7 | 26 | 0、091 5 | 3000 | 20 | 2220 |
| 250 | 61/2.3 | 20.7 | 2.4 | 1.8 | 30 | 0.0722 | 3000 | 20 | 2830 |
| 250 | compacted | 19.0 | 2.4 | 1.8 | 28 | 0.0739 | 3000 | 20 | 2740 |
| 325 | 61/2.6 | 23.4 | 2.6 | 1.9 | 33 | 0.0565 | 3000 | 20 | 3580 |
| 325 | compacted | 22 | 2.6 | 1.9 | 31 | 0.0568 | 3000 | 20 | 3520 |
| 400 | 61/2.9 | 26.1 | 2.6 | 2.1 | 36 | 0.0454 | 3000 | 20 | 4390 |
| 400 | compacted | 24.1 | 2.6 | 2 | 34 | 0.0462 | 3000 | 20 | 4280 |
| 500 | 61/3.2 | 28.8 | 2.8 | 2.2 | 39 | 0.0373 | 3500 | 20 | 5320 |
| 500 | compacted | 26.9 | 2.8 | 2.1 | 37 | 0.0369 | 3500 | 20 | 5310 |
| 600 | 91/2.9 | 31.9 | 3.0 | 2.3 | 43 | 0.0304 | 3500 | 20 | 6 470 |
| 600 | compacted | 29.5 | 3.0 | 2.2 | 40 | 0.0308 | 3500 | 20 | 6340 |
| 800 | 127/2.8 | 36.4 | 3.2 | 2.5 | 48 | 0.0234 | 3500 | 20 | 8340 |
| 800 | compacted | 34.0 | 3.2 | 2.4 | 46 | 0.0231 | 3500 | 20 | 8360 |
| 800 | segmental | 34 | 3.2 | 2.4 | 46 | 0.0231 | 3500 | 20 | 8350 |
| 1000 | 127/3.2 | 41.6 | 3.2 | 2.7 | 54 | 0.0179 | 3500 | 20 | 10800 |
| 1000 | compacted | 38.0 | 3.2 | 2.6 | 50 | 0.0185 | 3500 | 20 | 10500 |
| 1000 | segmental | 38.0 | 3.2 | 2.6 | 51 | 0 0181 | 3500 | 20 | 10400 |
| 2 cores | |||||||||
| 1 | solid | 1.0 | 0.8 | 1.5 | 8.7 | 23.3 | 1500 | 50 | 85 |
| 1.2 | solid | 1.2 | 0.8 | 1.5 | 9.1 | 16.1 | 1500 | 50 | 95 |
| 1.6 | solid | 1.6 | 0.8 | 1.5 | 9.9 | 9.10 | 1500 | 50 | 120 |
| 2.0 | solid | 2.0 | 0.8 | 1.5 | 11 | 5.76 | 1500 | 50 | 155 |
| 2.6 | solid | 2.6 | 1 | 1.5 | 13.0 | 3.42 | 1500 | 50 | 225 |
| 3.2 | solid | 3.2 | 1.2 | 1.5 | 15.0 | 2.25 | 1500 | 50 | 315 |
| 2 | 7/0.6 | 1.8 | 0.8 | 1.5 | 10.5 | 9.42 | 1500 | 50 | 130 |
| 3.5 | 7/O.8 | 2.4 | 0.8 | 1.5 | 11.5 | 5.30 | 1500 | 50 | 175 |
| 5.5 | 7/1.0 | 3.0 | 1 | 1.5 | 13.5 | 3.40 | 1500 | 50 | 245 |
| 8 | 7/1.2 | 3.6 | 1.2 | 1.5 | 15.5 | 2.36 | 1500 | 50 | 335 |
| 8 | compacted | 3.4 | 1.3 | 1.5 | 15.5 | 2.34 | 2000 | 50 | 325 |
| 14 | 7/1.6 | 4.8 | 1.4 | 1.5 | 19.0 | 1.33 | 2000 | 40 | 520 |
| 14 | compacted | 4.4 | 1.5 | 1.5 | 18.0 | 1.34 | 2000 | 40 | 500 |
| 22 | 7/2.0 | 6.0 | 1.6 | 1.6 | 23 | 0.840 | 2000 | 40 | 760 |
| 22 | compacted | 5.5 | 1.7 | 1.5 | 21 | 0.849 | 2000 | 40 | 715 |
| 38 | 7/2.6 | 7.8 | 1.8 | 1.7 | 27 | 0.497 | 2500 | 40 | 1 190 |
| 38 | 19/1.6 | 8.0 | 1.8 | 1.8 | 28 | 0.489 | 2500 | 40 | 1200 |
| 38 | compacted | 7.3 | 1.8 | 1.9 | 26 | 0.491 | 2500 | 40 | 1 160 |
| 60 | 19/2.0 | 10.0 | 1.8 | 1.9 | 32 | 0.309 | 2500 | 30 | 1740 |
| 60 | compacted | 9.3 | 1.8 | 1.9 | 31 | 0.311 | 2500 | 30 | 1680 |
| 100 | 19/2.6 | 13.0 | 2.0 | 2.2 | 39 | 0.184 | 2500 | 30 | 2800 |
| 100 | compacted | 12.0 | 2.0 | 2.1 | 37 | 0.187 | 2500 | 30 | 2670 |
| 150 | 37/2.3 | 16.1 | 2.2 | 2.5 | 47 | 0.129 | 3000 | 20 | 4 120 |
| 150 | compacted | 14.7 | 2.2 | 2.3 | 44 | 0.124 | 3000 | 30 | 3870 |
| 200 | 37/2.6 | 18.2 | 2.4 | 2.7 | 52 | 0.0940 | 3000 | 20 | 5 1、 |
| 200 | compacted | 17.0 | 2.4 | 2.6 | 50 | 0.0933 | 3000 | 20 | 5090 |
| 250 | 61/2.3 | 20.7 | 2.4 | 2 9 | 58 | 0.0736 | 3000 | 20 | 6570 |
| 250 | compacted | 19、0 | 2.4 | 2.7 | 54 | 0.0736 | 3000 | 20 | 6250 |
| 325 | 61/2.6 | 23.4 | 2.6 | 3.1 | 64 | 0.0576 | 3000 | 20 | 8300 |
| 325 | compacted | 21.7 | 2.6 | 3.0 | 61 | 0、0579 | 3000 | 20 | 8040 |
| 3 cores | |||||||||
| 1 | solid | 1.0 | 0.8 | 1.5 | 9.1 | 23.3 | 1500 | 50 | 100 |
| 1.2 | solid | 1.2 | 0.8 | 1.5 | 9.5 | 16.1 | 1500 | 50 | 115 |
| 1.6 | solid | 1.6 | 0.8 | 1.5 | 10.5 | 9.10 | 1500 | 50 | 150 |
| 2.0 | solid | 2.0 | 0.8 | 1.5 | 11.5 | 5.76 | 1500 | 50 | 195 |
| 2.6 | solid | 2.6 | 1 | 1.5 | 13.5 | 3.42 | 1500 | 50 | 290 |
| 3.2 | solid | 3.2 | 1.2 | 1.5 | 16.0 | 2.25 | 1500 | 50 | 410 |
| 2 | 7/0.6 | 1.8 | 0.8 | 1.5 | 1l.0 | 9.42 | 1500 | 50 | 160 |
| 3.5 | 7/O.8 | 2.4 | 0.8 | 1.5 | 12.5 | 5.30 | 1500 | 50 | 220 |
| 5.5 | 7/1.0 | 3.0 | 1 | 1.5 | 14.5 | 3.40 | 1500 | 50 | 320 |
| 8 | 7/1.2 | 3.6 | 1.2 | 1.5 | 16.5 | 2.36 | 1500 | 50 | 440 |
| 8 | compacted | 3.4 | 1.3 | 1.5 | 16.0 | 2.34 | 2000 | 50 | 425 |
| 14 | 7/1.6 | 4.8 | 1.4 | 1.5 | 20 | 1.33 | 2000 | 40 | 690 |
| 14 | compacted | 4.4 | 1.5 | 1.5 | 19.0 | 1.34 | 2000 | 40 | 665 |
| 22 | 7/2.0 | 6.0 | 1.6 | 1.6 | 24 | 0.840 | 2000 | 40 | 1020 |
| 22 | compacted | 5.5 | 1.7 | 1.6 | 23 | 0.849 | 2000 | 40 | 975 |
| 38 | 7/2.6 | 7.8 | 1.8 | 1.8 | 29 | 0.497 | 2500 | 40 | 1620 |
| 38 | 19/1.6 | 8.0 | 1.8 | 1.8 | 30 | 0.489 | 2500 | 40 | 1640 |
| 38 | compacted | 7.3 | 1.8 | 1.8 | 28 | 0.491 | 2500 | 40 | 1590 |
| 60 | 19/2.0 | 10.0 | 1.8 | 2.0 | 34 | 0.309 | 2500 | 30 | 2400 |
| 60 | compacted | 9.3 | 1.8 | 1.9 | 33 | 0.311 | 2500 | 30 | 2320 |
| 100 | 19/2.6 | 13.0 | 2.0 | 2.3 | 42 | 0.184 | 2500 | 30 | 3870 |
| 100 | compacted | 12.0 | 2.0 | 2.2 | 40 | 0.187 | 2500 | 30 | 3720 |
| 150 | 37/2.3 | 16.1 | 2.2 | 2.6 | 50 | 0.120 | 3000 | 20 | 5720 |
| 150 | compacted | 14.7 | 2.2 | 2.5 | 47 | 0.124 | 3000 | 30 | 5430 |
| 200 | 37/2.6 | 18.2 | 2.4 | 2.8 | 56 | 0.124 | 3000 | 20 | 7220 |
| 200 | compacted | 17.0 | 2.4 | 2.7 | 53 | O.0933 | 3000 | 20 | 7130 |
| 250 | 61/2.3 | 20.7 | 2.4 | 3.0 | 62 | 0.0736 | 3000 | 20 | 9160 |
| 250 | compacted | 19、0 | 2.4 | 2.9 | 58 | 0.0754 | 3000 | 20 | 8800 |
| 325 | 61/2.6 | 23.4 | 2.6 | 3.3 | 69 | 0.0576 | 3000 | 20 | 11700 |
| 325 | compacted | 21.7 | 2.6 | 3.1 | 65 | 0.0579 | 3000 | 20 | 11300 |
| 4cores | |||||||||
| 1 | solid | 1.0 | 0.8 | 1.5 | 9.8 | 23.3 | 1500 | 50 | 120 |
| 1.2 | solid | 1.2 | 0.8 | 1.5 | 10.5 | 16.1 | 1500 | 50 | 140 |
| 1.6 | solid | 1.6 | 0.8 | 1.5 | 11.5 | 9.10 | 1500 | 50 | 185 |
| 2.0 | solid | 2.0 | 0.8 | 1.5 | 12.5 | 5.76 | 1500 | 50 | 240 |
| 2.6 | solid | 2.6 | 1 | 1.5 | 15.0 | 3.42 | 1500 | 50 | 365 |
| 3.2 | solid | 3.2 | 1.2 | 1.5 | 17.0 | 2.25 | 1500 | 50 | 515 |
| 2 | 7/0.6 | 1.8 | 0.8 | 1.5 | 12.0 | 9.42 | 1500 | 50 | 195 |
| 3.5 | 7/O.8 | 2.4 | 0.8 | 1.5 | 13.5 | 5:30 | 1500 | 50 | 275 |
| 5.5 | 7/1.0 | 3.0 | 1 | 1.5 | 16.0 | 3.40 | 1500 | 50 | 400 |
| 8 | 7/1.2 | 3.6 | 1.2 | 1.5 | 18.0 | 2.36 | 1500 | 50 | 555 |
| 8 | compacted | 3.4 | 1.3 | 1.5 | 17.5 | 2.34 | 2000 | 50 | 535 |
| 14 | 7/1.6 | 4.8 | 1.4 | 1.6 | 22 | 1.33 | 2000 | 40 | 890 |
| 14 | compacted | 4.4 | 1.5 | 1.5 | 21 | 1.34 | 2000 | 40 | 855 |
| 22 | 7/2.0 | 6.0 | 1.6 | 1.7 | 27 | 0.840 | 2000 | 40 | 1320 |
| 22 | compacted | 5.5 | 1.7 | 1.7 | 25 | 0.849 | 2000 | 40 | 1260 |
| 38 | 7/2.6 | 7.8 | 1.8 | 1.9 | 32 | 0.497 | 2500 | 40 | 2100 |
| 38 | 19/1.6 | 8.0 | 1.8 | 1.9 | 33 | 0.489 | 2500 | 40 | 2120 |
| 38 | compacted | 7.3 | 1.8 | 1.9 | 31 | 0.491 | 2500 | 40 | 2060 |
| 60 | 19/2.0 | 10.0 | 1.8 | 2.1 | 38 | 0.309 | 2500 | 30 | 3120 |
| 60 | compacted | 9.3 | 1.8 | 2.1 | 36 | 0.311 | 2500 | 30 | 3030 |
| 100 | 19/2.6 | 13.0 | 2.0 | 2.5 | 47 | 0.184 | 2500 | 30 | 5060 |
| 100 | compacted | 12.0 | 2.0 | 2.4 | 44 | 0.187 | 2500 | 30 | 4870 |
| 150 | 37/2.3 | 16.1 | 2.2 | 2.8 | 56 | 0.120 | 3000 | 20 | 7480 |
| 150 | compacted | 14.7 | 2.2 | 2.7 | 52 | 0.124 | 3000 | 30 | 7110 |
| 200 | 37/2.6 | 18.2 | 2.4 | 3.0 | 62 | 0.0940 | 3000 | 20 | 9440 |
| 200 | compacted | 17.0 | 2.4 | 2.9 | 59 | 0.0933 | 3000 | 20 | 9330 |
| 250 | 61/2.3 | 20.7 | 2.4 | 3.3 | 69 | 0.0736 | 3000 | 20 | 12100 |
| 250 | compacted | 19、0 | 2.4 | 3.1 | 65 | 0.0754 | 3000 | 20 | 11600 |
| 325 | 61/2.6 | 23.4 | 2.6 | 3.6 | 17 | 0.0576 | 3000 | 20 | 15300 |
| 325 | compacted | 21.7 | 2.6 | 3.4 | 73 | 0.0579 | 3000 | 20 | 14900 |
