Industrial Cables
LiYCY
Application and Description
LiYCY screened cables are suitable for flexible use with free movement, but without tensile stress or forced movements in dry wet and moist areas but are not suitable for open air application. LiYCY cables are ideal whenever construction requirements call for minimal outer diameter such as areas of tool making, machine industry, eletrotechnics, computers, measuring and controlling technics. The extremely small outer diameter makes the cable also suitable for miniature plugs.
Standard and Approval
VDE 0245, VDE 0812, CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant

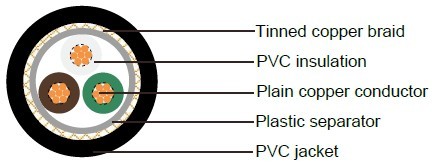

Cable Construction
- - Plain copper conductor
- - Stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5 IEC 60228 cl.5
- - PVC core insulation to DIN VDE 0281 part 1
- - Color coded to DIN 47100, but without color repetition
- - Cores twisted into layers
- - Plastic foil separator
- - 85% tinned copper braid
- - PVC outer jacket to DIN VDE 0281 part 1
Technical Characteristics
- - Working voltage: 250 volts
- - Test voltage: 1200/1500 volts
- - Minimum bending radius: 10 x Ø
- - Flexing temperature: -5º C to +70º C
- - Static temperature: -40º C to +80º C
- - Flame retardant: IEC 60332.1
- - Insulation resistance: 20 MΩ x km
Cable Parameter
| AWG | NO. OF CORES X NOMINAL CROSS SECTIONAL AREA # X MM² |
NOMINAL OVERALL DIAMETER MM |
COPPER WEIGHT KG / KM | CABLE WEIGHT KG / KM |
| 26(18/38) | 2X0.14 | 3.9 | 12 | 20 |
| 26(18/38) | 3X0.14 | 4.1 | 13 | 28 |
| 26(18/38) | 4X0.14 | 4.3 | 14.3 | 33 |
| 26(18/38) | 5X0.14 | 4.6 | 15.5 | 38 |
| 26(18/38) | 6X0.14 | 4.8 | 22 | 38 |
| 26(18/38) | 7X0.14 | 4.9 | 19 | 49 |
| 26(18/38) | 8X0.14 | 5.3 | 21.2 | 56 |
| 26(18/38) | 10X0.14 | 5.9 | 28.5 | 66 |
| 26(18/38) | 12X0.14 | 6.3 | 30.4 | 78 |
| 26(18/38) | 14X0.14 | 6.5 | 32 | 80 |
| 26(18/38) | 15X0.14 | 6.7 | 37.8 | 86 |
| 26(18/38) | 16X0.14 | 6.8 | 43 | 90 |
| 26(18/38) | 18X0.14 | 7.1 | 48.8 | 104 |
| 26(18/38) | 20X0.14 | 7.6 | 53.9 | 116 |
| 26(18/38) | 21X0.14 | 7.7 | 55.5 | 121 |
| 26(18/38) | 25X0.14 | 8.5 | 63 | 149 |
| 26(18/38) | 28X0,14 | 8.5 | 66.1 | 153 |
| 26(18/38) | 30X0.14 | 8.7 | 69 | 158 |
| 26(18/38) | 32X0.14 | 9 | 73.6 | 164 |
| 26(18/38) | 36X0.14 | 9.3 | 83 | 183 |
| 26(18/38) | 40X0.14 | 9.7 | 87.5 | 210 |
| 26(18/38) | 44X0.14 | 10.3 | 110.5 | 225 |
| 26(18/38) | 50X0.14 | 11.1 | 122.5 | 253 |
| 24(14/34) | 2X0.25 | 4.5 | 16 | 32 |
| 24(14/34) | 3X0.25 | 4.7 | 21 | 37 |
| 24(14/34) | 4X0.25 | 5.1 | 24 | 41.3 |
| 24(14/34) | 5X0.25 | 5.4 | 29 | 51.2 |
| 24(14/34) | 6X0.25 | 5.8 | 30 | 58 |
| 24(14/34) | 7X0.25 | 5.8 | 37 | 65 |
| 24(14/34) | 8X0.25 | 6.5 | 42 | 73 |
| 24(14/34) | 10X0.25 | 7.5 | 46 | 82 |
| 24(14/34) | 12X0.25 | 7.7 | 59 | 145 |
| 24(14/34) | 14X0.25 | 8.1 | 59 | 99 |
| 24(14/34) | 15X0.25 | 8.4 | 61 | 111 |
| 24(14/34) | 16X0.25 | 8.4 | 64 | 124 |
| 24(14/34) | 18X0.25 | 8.8 | 83 | 143 |
| 24(14/34) | 20X0.25 | 9.1 | 88 | 152.3 |
| 24(14/34) | 21X0.25 | 9.3 | 93 | 161 |
| 24(14/34) | 25X0.25 | 10.3 | 114 | 172 |
| 24(14/34) | 28X0.25 | 10.8 | 126 | 181.1 |
| 24(14/34) | 30X0.25 | 11.1 | 132 | 189 |
| 24(14/34) | 32X0.25 | 11.4 | 138 | 203 |
| 24(14/34) | 36X0.25 | 11.8 | 148 | 220 |
| 24(14/34) | 40X0.25 | 12.3 | 157 | 248 |
| 24(14/34) | 44X0.25 | 13.3 | 165 | 292.1 |
| 24(14/34) | 50X0.25 | 13.9 | 178 | 318 |
| 24(14/34) | 61X0.25 | 14.6 | 205 | 365.2 |
| 22(7/30) | 2X0.34 | 4.9 | 21 | 37 |
| 22(7/30) | 3X0.34 | 5.1 | 27 | 49 |
| 22(7/30) | 4X0.34 | 5.5 | 33 | 59 |
| 22(7/30) | 5X0.34 | 6.2 | 36 | 66 |
| 22(7/30) | 6X0.34 | 6.8 | 36 | 64 |
| 22(7/30) | 7X0.34 | 6.8 | 46 | 83 |
| 22(7/30) | 8X0.34 | 7.3 | 52 | 94 |
| 22(7/30) | 10X0.34 | 8.3 | 74 | 129.2 |
| 22(7/30) | 12X0.34 | 8.5 | 80 | 142 |
| 22(7/30) | 14XO.34 | 8.9 | 86 | 154 |
| 22(7/30) | 15XO.34 | 9.2 | 90 | 155 |
| 22(7/30) | 16X0.34 | 9.4 | 94 | 160 |
| 22(7/30) | 18X0.34 | 9.8 | 103 | 173 |
| 22(7/30) | 20X0.34 | 10.2 | 112 | 192 |
| 22(7/30) | 21X0.34 | 10.3 | 116 | 199.2 |
| 22(7/30) | 25X0.34 | 11.9 | 135 | 259 |
| 22(7/30) | 28X0.34 | 12 | 153 | 280 |
| 22(7/30) | 30X0.34 | 12.3 | 159 | 291.1 |
| 22(7/30) | 32X0.34 | 13 | 165 | 305 |
| 22(7/30) | 36X0.34 | 13.4 | 179 | 331 |
| 22(7/30) | 40X0.34 | 13.9 | 200 | 365 |
| 22(7/30) | 44X0.34 | 14.9 | 215 | 314.2 |
| 22(7/30) | 50X0.34 | 15.9 | 235 | 431 |
| 20(16/32) | 2X0.5 | 5.5 | 29 | 54 |
| 20(16/32) | 3X0.5 | 5.8 | 38 | 67 |
| 20(16/32) | 4X0.5 | 6.5 | 43 | 77 |
| 20(16/32) | 5X0.5 | 7 | 51 | 90 |
| 20(16/32) | 6X0.5 | 7.8 | 59 | 104 |
| 20(16/32) | 7X0.5 | 7.8 | 65 | 112 |
| 20(16/32) | 8X0.5 | 8.3 | 70 | 135 |
| 20(16/32) | 10X0.5 | 9.5 | 88 | 160 |
| 20(16/32) | 12X0.5 | 9.8 | 99 | 177 |
| 20(16/32) | 18X0.5 | 11.8 | 134 | 239 |
| 20(16/32) | 20X0.5 | 12.2 | 149 | 276 |
| 20(16/32) | 25X0.5 | 14 | 211 | 352 |
| 20(16/32) | 30X0.5 | 14.5 | 230 | 397 |
| 18(24/32) | 2X0.75 | 5.9 | 38 | 64 |
| 18(24/32) | 3X0.75 | 6.4 | 49 | 76 |
| 18(24/32) | 4X0.75 | 7 | 58 | 92 |
| 18(24/32) | 5X0.75 | 7.8 | 67 | 109 |
| 18(24/32) | 7X0.75 | 8.4 | 100 | 156 |
| 18(24/32) | 10X0.75 | 10.3 | 130 | 187 |
| 18(24/32) | 12X0.75 | 11 | 154 | 218 |
| 18(24/32) | 18X0.75 | 13 | 195 | 327 |
| 18(24/32) | 25X0.75 | 15.6 | 280 | 454 |
| 18(24/32) | 30X0.75 | 16.2 | 312 | 486 |
| 17(32/32) | 2X1.0 | 6.5 | 43 | 72 |
| 17(32/32) | 3X1.0 | 6.9 | 56 | 90 |
| 17(32/32) | 4X1.0 | 7.6 | 68 | 109 |
| 17(32/32) | 5X1.0 | 8.3 | 79 | 126 |
| 17(32/32) | 7X1.0 | 9 | 118 | 171 |
| 17(32/32) | 10X1.0 | 11.5 | 140 | 228 |
| 17(32/32) | 12X1.0 | 11.9 | 168 | 259 |
| 17(32/32) | 18X1.0 | 14 | 252 | 389 |
| 17(32/32) | 25X1.0 | 16.7 | 335 | 517 |
| 16(30/30) | 2X1.5 | 7.6 | 58 | 90 |
| 16(30/30) | 3X1.5 | 8 | 74 | 115 |
| 16(30/30) | 4X1.5 | 8.7 | 108 | 153 |
| 16(30/30) | 5X1.5 | 9.5 | 129 | 176 |
| 16(30/30) | 7X1.5 | 10.3 | 164 | 220 |
| 16(30/30) | 12X1.5 | 13.9 | 254 | 376 |
| 16(30/30) | 18X1.5 | 16.6 | 350 | 519 |
| 16(30/30) | 25X1.5 | 20 | 550 | 901 |
