RHH/RHW, copper, 2000V
Application
Type RHH, RHW-2 copper wire is suitable for wiring in raceways, conduit, etc. Applications include general purpose wiring for power distribution, services, feeders, and branch circuit wiring in residential, industrial, and commercial buildings.
Compliances
- UL 44 - Thermoset-Insulated Wires and Cables
- UL 854 - Service Entrance Cables
- ICEA S-95-658 (NEMA WC 70)

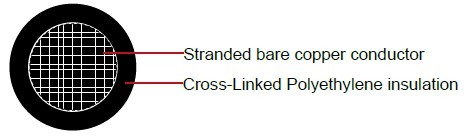

Construction
| Conductor |
Stranded bare annealed copper |
| Insulation |
Flame-retardant, abrasion, moisture and heat resistant Cross-Linked Polyethylene (FRXLPE) |
| Color |
Upon request, black is preferable |
Parameters
| AWG or kcmil |
Strand |
Nominal insulation Thickness |
Nominal Overall Diameter |
Cable Weight |
| Inch/mm |
Inch/mm |
Lbs/kft |
kg/km |
| 14 |
7 |
0.060 |
1.52 |
0.193 |
4.90 |
25 |
37 |
| 12 |
7 |
0.060 |
1.52 |
0.212 |
5.38 |
34 |
51 |
| 10 |
7 |
0.060 |
1.52 |
0.236 |
5.99 |
48 |
71 |
| 8 |
7 |
0.070 |
1.78 |
0.286 |
7.26 |
73 |
109 |
| 6 |
7 |
0.070 |
1.78 |
0.324 |
8.23 |
106 |
158 |
| 4 |
7 |
0.070 |
1.78 |
0.372 |
9.45 |
158 |
235 |
| 3 |
7 |
0.070 |
1.78 |
0.4 |
10.16 |
195 |
290 |
| 2 |
7 |
0.070 |
1.78 |
0.432 |
10.97 |
240 |
357 |
| 1 |
19 |
0.090 |
2.29 |
0.501 |
12.73 |
310 |
461 |
| 1/0 |
19 |
0.090 |
2.29 |
0.54 |
13.72 |
382 |
568 |
| 2/0 |
19 |
0.090 |
2.29 |
0.584 |
14.83 |
472 |
702 |
| 3/0 |
19 |
0.090 |
2.29 |
0.634 |
16.10 |
586 |
872 |
| 4/0 |
19 |
0.090 |
2.29 |
0.69 |
17.53 |
728 |
1083 |
| 250 |
37 |
0.105 |
2.67 |
0.785 |
19.94 |
871 |
1296 |
| 300 |
37 |
0.105 |
2.67 |
0.839 |
21.31 |
1,033 |
1537 |
| 350 |
37 |
0.105 |
2.67 |
0.891 |
22.63 |
1,195 |
1778 |
| 400 |
37 |
0.105 |
2.67 |
0.938 |
23.83 |
1,357 |
2019 |
| 500 |
37 |
0.105 |
2.67 |
1.023 |
25.98 |
1,677 |
2495 |
| 600 |
61 |
0.120 |
3.05 |
1.131 |
28.73 |
2,021 |
3007 |
| 750 |
61 |
0.120 |
3.05 |
1.238 |
31.45 |
2,501 |
3721 |
