Industrial Cables-Australian Standard (LV)
VSD/EMC Cables (Copper Tape Screened), 0.6/1kV
Application
These cables are used to supply motors from variable speed controls unenclosed, enclosed in conduit, mounted on tray, or in underground ducts for industrial plants, where not subject to mechanical damage. They are designed to significantly reduce radiated interference from electrical noise by using
symmetrical, balanced and screened construction.
Standard
- AS/NZS 5000.1
- AS/NZS 3808
- AS/NZS 1125

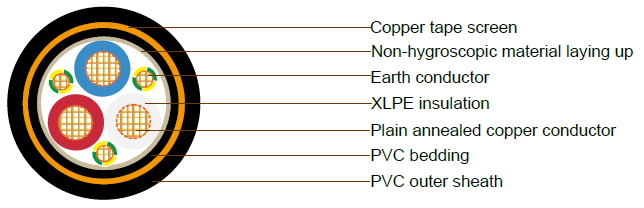

Cable Construction
| CONDUCTOR | Plain annealed copper, class 2 strands |
| INSULATION | XLPE, X-90 |
| INSULATION COLOUR: | Red, White, Blue & Green/Yellow |
| LAYING UP: | Non-hygroscopic material(optional) |
| BEDDING: | Flame retardant polyvinyl chloride PVC V90 |
| SCREEN: | Plain annealed copper tape with 100% coverage |
| SHEATH: | Flame retardant polyvinyl chloride PVC V90 |
| SHEATH COLOUR: | Black |
Technical Characteristics
| CONDUCTOR | CURRENT RATINGS | ELECTRICAL CHARACTERISTICS | |||||
| NOMINAL AREA MM2 | UNENCLOSED TOUCHING A |
UNENCLOSED IN AIR A |
BURIED IN DUCTS A |
MAXIMUM DC RESISTANCE @20°C OHM/KM |
MAXIMUM AC RESISTANCE @90°C OHM/KM |
REACTANCE OHM/KM | THREE PHASE VOLTAGE DROP MV/AM |
| 2.5 | 29 | 24 | 32 | 7.41 | 9.45 | 0.0988 | 16.4 |
| 4 | 39 | 32 | 41 | 4.61 | 5.88 | 0.0930 | 10.2 |
| 6 | 50 | 42 | 51 | 3.08 | 3.93 | 0.0887 | 6.80 |
| 10 | 68 | 58 | 68 | 1.83 | 2.33 | 0.0840 | 4.05 |
| 16 | 91 | 77 | 89 | 1.21 | 1.54 | 0.0805 | 2.68 |
| 25 | 121 | 108 | 118 | 0.780 | 0.932 | 0.0808 | 1.62 |
| 35 | 149 | 127 | 144 | 0.554 | 0.684 | 0.0786 | 1.19 |
| 50 | 187 | 154 | 171 | 0.386 | 0.513 | 0.0751 | 0.902 |
| 70 | 237 | 193 | 214 | 0.272 | 0.340 | 0.0741 | 0.608 |
| 95 | 292 | 231 | 257 | 0.206 | 0.266 | 0.0725 | 0.485 |
| 120 | 336 | 275 | 294 | 0.161 | 0.206 | 0.0713 | 0.387 |
| 150 | 385 | 308 | 332 | 0.129 | 0.162 | 0.0718 | 0.317 |
| 185 | 446 | 358 | 380 | 0.106 | 0.134 | 0.0720 | 0.275 |
| 240 | 528 | 424 | 449 | 0.0801 | 0.105 | 0.0709 | 0.233 |
| 300 | 605 | - | 508 | 0.0641 | 0.0836 | 0.0704 | 0.205 |
Cable Parameter
| NO. OF CORE | NOM. CONDUCTOR AREA MM² |
CORE DIAMETER MM | EARTH CONDUCTOR AREA MM² |
EARTH CORE DIAMETER MM | OVER BEDDING DIAMETER MM |
CABLE DIAMETER MM | APPROX. MASS KG/KM |
| 3C+E | 2.5 | 3.7 | 2.5 | 3.5 | 10.9 | 15.0 | 330 |
| 3C+E | 4 | 4.7 | 4 | 4.7 | 13 | 15.3 | 375 |
| 3C+3E | 6 | 5.3 | 1.5 | 3.0 | 13.8 | 16.9 | 415 |
| 3C+3E | 10 | 6.2 | 1.5 | 3.0 | 14.8 | 17.8 | 550 |
| 3C+3E | 16 | 7.4 | 2.5 | 3.5 | 17 | 21.0 | 760 |
| 3C+3E | 25 | 9.1 | 4 | 4.7 | 19.2 | 24.4 | 1130 |
| 3C+3E | 35 | 10.3 | 6 | 5.3 | 21.9 | 27.2 | 1480 |
| 3C+3E | 50 | 12.3 | 10 | 6.2 | 25.1 | 30.8 | 2110 |
| 3C+3E | 70 | 14.0 | 10 | 6.2 | 28.1 | 35.7 | 2740 |
| 3C+3E | 95 | 15.3 | 16 | 7.4 | 33.9 | 39.9 | 3590 |
| 3C+3E | 120 | 17.1 | 16 | 7.4 | 38.9 | 43.8 | 4400 |
| 3C+3E | 150 | 19.2 | 25 | 9.1 | 42.6 | 48.4 | 5450 |
| 3C+3E | 185 | 21.5 | 25 | 9.1 | 47.5 | 54.1 | 6760 |
| 3C+3E | 240 | 24.2 | 35 | 10.3 | 53.6 | 60.2 | 8600 |
| 3C+3E | 300 | 26.8 | 50 | 12.3 | 59.6 | 66.3 | 10640 |
