XHH / XHHW-2
Application
The XHH conductor is suitable for most current wiring solutions for residential, commercial and industrial applications. Because of its excellent response under overload and short-circuit situations, it is used in service entrance even underground installations. The XHH conductor is able to work properly up to 90ºC in dry environmental conditions. Its insulation is flame retardant, besides, it provides mechanical resistance against to humidity, chemical agents and oils. Its black pigmentation resist very well the ultraviolet sun light, therefore it could be used with no issue in outside applications. Conductors certified with suffix ´´-2 ´´, as XHH-2, these can meet a continuous operation temperature of 90ºC(194ºF) in dry or wet conditions.
Compliances
- ASTM B3, B8
- UL 1581 - Flame Exposure Test
- UL 44 - Thermoset-Insulated Wires and Cables
- National Electrical Code (NEC)

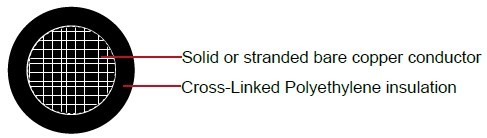

Construction
| Conductor |
Solid or stranded bare annealed copper |
| Insulation |
Cross-linked polyethylene(XLPE) |
| Color |
upon request, black is preferable |
Parameters
| AWG/kcmil |
Strand |
Nominal Insulation Thickness |
Nominal Overall Diameter |
Cable Weight |
| |
|
Inch/mm |
Inch/mm |
Lbs/kft |
kg/km |
| 14 |
1 |
0.030 |
0.76 |
0.124 |
3.15 |
16 |
24 |
| 12 |
1 |
0.030 |
0.76 |
0.141 |
3.58 |
24 |
36 |
| 10 |
1 |
0.030 |
0.76 |
0.162 |
4.11 |
37 |
55 |
| 8 |
1 |
0.045 |
1.14 |
0.218 |
5.55 |
61 |
91 |
| 6 |
1 |
0.045 |
1.14 |
0.252 |
6.40 |
93 |
138 |
| 14 |
7 |
0.030 |
0.76 |
0.133 |
3.37 |
17 |
26 |
| 12 |
7 |
0.030 |
0.76 |
0.152 |
3.85 |
26 |
39 |
| 10 |
7 |
0.030 |
0.76 |
0.176 |
4.46 |
39 |
58 |
| 8 |
7 |
0.045 |
1.14 |
0.236 |
5.99 |
65 |
96 |
| 6 |
7 |
0.045 |
1.14 |
0.274 |
6.95 |
98 |
146 |
| 4 |
19 |
0.045 |
1.14 |
0.316 |
8.04 |
148 |
220 |
| 3 |
19 |
0.045 |
1.14 |
0.344 |
8.75 |
184 |
274 |
| 2 |
19 |
0.045 |
1.14 |
0.376 |
9.54 |
229 |
341 |
| 1 |
19 |
0.045 |
1.14 |
0.431 |
10.94 |
292 |
434 |
| 1/0 |
19 |
0.055 |
1.40 |
0.470 |
11.94 |
364 |
541 |
| 2/0 |
19 |
0.055 |
1.40 |
0.514 |
13.07 |
453 |
674 |
| 3/0 |
19 |
0.055 |
1.40 |
0.564 |
14.33 |
566 |
842 |
| 4/0 |
19 |
0.055 |
1.40 |
0.620 |
15.75 |
708 |
1053 |
| 250 |
37 |
0.065 |
1.65 |
0.706 |
17.93 |
838 |
1247 |
| 300 |
37 |
0.065 |
1.65 |
0.761 |
19.33 |
999 |
1486 |
| 350 |
37 |
0.065 |
1.65 |
0.812 |
20.62 |
1159 |
1725 |
| 400 |
37 |
0.065 |
1.65 |
0.859 |
21.82 |
1319 |
1963 |
| 500 |
37 |
0.065 |
1.65 |
0.945 |
24.00 |
1639 |
2439 |
| 600 |
61 |
0.080 |
2.03 |
1.053 |
26.75 |
1980 |
2946 |
| 750 |
61 |
0.080 |
2.03 |
1.159 |
29.44 |
2459 |
3660 |
| 1000 |
61 |
0.080 |
2.03 |
1.313 |
33.35 |
3256 |
4845 |
