318TRS to BS 6500
Application and Description
These cables are suitable for use with electronics and electrical equipment such as appliances, small hand tools and office equipment, where the cables may be subject to light and medium stresses in both dry and damp environments. They can be used in flat irons, soldering irons, kitchen aids, toasters, stoves in connections with light commercial electric tools. They are also suitable for fixed installation in furniture, decorative coverings, wall partitions and pre-fabricated building parts. 318TRS is equivalent to harmonized code H05RR-F.
Cable Construction

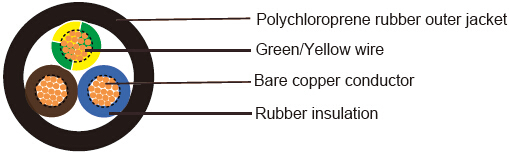

- - Fine bare copper strands
- - Stranding to BS 6360 CL-5 or IEC 60228 CL-5
- - Rubber core insulation EI4
- - Green/Yellow grounding, 3 conductors and above
- - Polychloroprene rubber (neoprene) jacket EM3
Core Identification
- 2 Cores: Brown, Blue
- 3 Cores: Brown, Blue and Green/Yellow
- 4 Cores: Brown, Grey, Black and Green/Yellow
- 5 Cores: Brown, Blue, Grey, Black and Green/Yellow
Technical Characteristics
- - Working voltage: 300/500 volts
- - Test voltage: 2000 volts
- - Flexing bending radius: 8xOverall diameter
- - Fixed bending radius: 6xOverall diameter
- - Temperature range: -30o C to +60o C
- - Short circuit temperature: +200 o C
- - Flame retardant: IEC 60332.1
- - Insulation resistance: 20 MΩxkm
Cable Parameter
| AWG (No of Strands/ Strand Diameter) |
No. of Cores x Nominal Cross Sectional Area #xmm^2 |
Nominal Thickness of Insulation mm |
Nominal Thickness of Sheath mm |
Nominal Overall Diameter mm |
Nominal Copper Weight kg/km |
Nominal Weight kg/km |
| 3182TRS | ||||||
| 18(24/32) | 2x0.75 | 0.6 | 0.8 | 5.7-7.4 | 14.4 | 61 |
| 17(32/32) | 2x1 | 0.6 | 0.9 | 6.1-8.0 | 19.0 | 73 |
| 16(30/30) | 2x1.5 | 0.8 | 1.0 | 7.6-9.8 | 29.0 | 115 |
| 14(50/30) | 2x2.5 | 0.9 | 1.1 | 9.0-11.6 | 48.0 | 160 |
| 3183TRS | ||||||
| 18(24/32) | 3x0.75 | 0.6 | 0.9 | 6.2-8.1 | 21.6 | 75 |
| 17(32/32) | 3x1 | 0.6 | 0.9 | 6.5-8.5 | 29.0 | 86 |
| 16(30/30) | 3x1.5 | 0.8 | 1.0 | 8.0-10.4 | 43.0 | 135 |
| 14(50/30) | 3x2.5 | 0.9 | 1.1 | 9.6-12.4 | 72.0 | 191 |
| 3184TRS | ||||||
| 18(24/32) | 4x0.75 | 0.6 | 0.9 | 6.8-8.8 | 28.8 | 94 |
| 17(32/32) | 4x1 | 0.6 | 0.9 | 7.1-9.3 | 38.4 | 105 |
| 16(30/30) | 4x1.5 | 0.8 | 1.1 | 9.0-11.6 | 58.0 | 165 |
| 14(50/30) | 4x2.5 | 0.9 | 1.2 | 10.7-13.8 | 96 | 235 |
| 3185TRS | ||||||
| 18(24/32) | 5x0.75 | 0.6 | 1.0 | 7.6-9.9 | 36 | 110 |
| 17(32/32) | 5x1 | 0.6 | 1.0 | 8.0-10.3 | 48.0 | 130 |
| 16(30/30) | 5x1.5 | 0.8 | 1.1 | 9.8-12.7 | 72.0 | 190 |
| 14(50/30) | 5x2.5 | 0.9 | 1.3 | 11.9-15.3 | 120 | 285 |
