318Y to BS 6500(New BS EN 50525-2-11)
Application and Description
These cables are suited for medium mechanical stress in damp and wet environments such as
refrigerators, washing machines, spin dryers and other appliances, as long as it meets applicable
equipment specifications. These cables are also suited for cooking and heating apparatus, provided
that the cable does not come into direct contact with the hot parts of the apparatus or with any other
heat source. Further applications of this cable include: Fixed installation in furniture, partition walls,
decorative covering, and in the hollow spaces of prefabricated building parts. They are not suitable
for outdoor use, industrial (except clothing manufacture) or farming applications. 318Y is equivalent to
harmonized code H05VV-F,

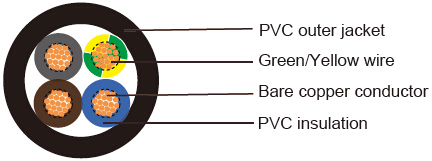

Cable Construction
- - Bare copper fine wire conductor
- - Stranding to BS 6360 CL-5 or IEC 60228 CL-5
- - PVC core insulation TI2 to BS 7655
- - Green/Yellow grounding (3 conductors and above)
- - PVC outer jacket TM2 to BS 7655
Core Identification
- 2 Cores: Blue, Brown
- 3 Cores: Green/Yellow, Blue, Brown
- 4 Cores: Green/Yellow, Brown, Black, Grey
- 5 Cores: Green/Yellow, Brown, Black, Grey, Blue
Technical Characteristics
- - Working voltage: 300/500 volts
- - Test voltage: 2000 volts
- - Flexing bending radius: 7.5xOverall diameter
- - Static bending radius: 4xOverall diameter
- - Flexing temperature: +5o C to +70o C
- - Static temperature: -40o C to +70o C
- - Short circuit temperature: +160o C
- - Flame retardant: IEC 60332.1
- - Insulation resistance: 20 MΩxkm
Cable Parameter
| AWG (No of Strands/ Strand Diameter) |
No. of Cores x Nominal Cross Sectional Area #xmm^2 |
Nominal Thickness of Insulation mm |
Nominal Thickness of Sheath mm |
Nominal Overall Diameter mm |
Nominal Copper Weight kg/km |
Nominal Weight kg/km |
| 3182Y | ||||||
| 18(24/32) | 2x0.75 | 0.6 | 0.8 | 6.4 | 14.4 | 57 |
| 17(32/32) | 2x1.0 | 0.6 | 0.8 | 6.8 | 19 | 65 |
| 16(30/30) | 2x1.5 | 0.7 | 0.8 | 7.6 | 29 | 87 |
| 14(50/30) | 2x2.5 | 0.8 | 1.0 | 9.2 | 48 | 134 |
| 12(56/28) | 2x4.0 | 0.8 | 1.1 | 10.5 | 77 | 174 |
| 3183Y | ||||||
| 18(24/32) | 3x0.75 | 0.6 | 0.8 | 6.8 | 21.6 | 68 |
| 17(32/32) | 3x1.0 | 0.6 | 0.8 | 7.2 | 29 | 79 |
| 16(30/30) | 3x1.5 | 0.7 | 0.9 | 8.2 | 43 | 111 |
| 14(50/30) | 3x2.5 | 0.8 | 1.1 | 10.1 | 72 | 169 |
| 12(56/28) | 3x4.0 | 0.8 | 1.2 | 11.3 | 115 | 233 |
| 3184Y | ||||||
| 18(24/32) | 4x0.75 | 0.6 | 0.8 | 7.4 | 29 | 84 |
| 17(32/32) | 4x1.0 | 0.6 | 0.9 | 8.0 | 38 | 101 |
| 16(30/30) | 4x1.5 | 0.7 | 1.0 | 9.2 | 58 | 142 |
| 14(50/30) | 4x2.5 | 0.8 | 1.1 | 11.2 | 96 | 211 |
| 12(56/28) | 4x4.0 | 0.8 | 1.2 | 12.5 | 154 | 292 |
| 3185Y | ||||||
| 18(24/32) | 5x0.75 | 0.6 | 0.9 | 8.5 | 36 | 106 |
| 17(32/32) | 5x1.0 | 0.6 | 0.9 | 8.8 | 48 | 123 |
| 16(30/30) | 5x1.5 | 0.7 | 1.1 | 10.5 | 72 | 176 |
| 14(50/30) | 5x2.5 | 0.8 | 1.2 | 12.4 | 120 | 262 |
| 12(56/28) | 5x4.0 | 0.8 | 1.4 | 13.7 | 192 | 369 |
