6181B/6182B/6183B/6184B/6185B to BS 7211
Application and Description
These cables are designed for fixed wiring purposes in domestic and industrial power/lighting applications. They can be installed in trunking or conduit, or may be surface mounted when used for earthing. They are suitable for use in areas (such as public and government buildings) where smoke and toxic fumes may cause a threat to life and equipment. When mechanical protection is required, they can be embedded in concrete.

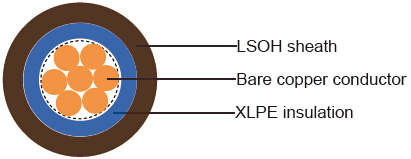

Cable Construction
- - Bare copper made of strands conductor
- - Stranding to IEC 60228 CL-1/2
- - Thermosetting insulation, type EI 5 or type GP 8 insulation
- - For 2 cores and above, the cores shall be laid up together. Centre filler may be used; the laid up cores
may be covered by an optional extruded inner covering or separating tape - - LSOH type LTS4 sheath
Core Identification
- 2-core: brown and blue;
- 3-core: brown, black and grey;
- 4-core: blue, brown, black and grey;
- 5-core: greenlyellow, blue, brown, black and grey
Technical Characteristics
- - Working voltage: 450/750v
- - Operating temperature: -15o C to +90o C
- - Insulation resistance: 10 MΩxkm
- - Halogen free acc. to EN 50267-2-1 / IEC 60754-1
- - Smoke density acc. to EN 50268-2 / IEC 61034-2
- - Corrosivity of gases acc. to EN 50267-2-2, IEC 60754-2
- - Flame retardancy acc. to EN 50265-2-1, IEC 60332-1
Cable Parameter
| AWG (No of Strands/ Strand Diameter) |
No. of Cores x Nominal Cross Sectional Area #xmm^2 |
Nominal Thickness of Insulation mm |
Nominal Thickness of inner Covering mm |
Nominal Thickness of Sheath mm |
Nominal Overall Diameter lower limit mm |
Nominal Overall Diameter upper limit mm |
| 6181B | ||||||
| 18(solid) | 1x1.0 | 0.7 | - | 0.8 | 3.9 | 4.8 |
| 18(7/26) | 1x1.0 | 0.7 | - | 0.8 | 4 | 4.9 |
| 16(solid) | 1x1.5 | 0.7 | - | 0.8 | 4.2 | 5 |
| 16(7/24) | 1x1.5 | 0.7 | - | 0.8 | 4.3 | 5.2 |
| 14(solid) | 1x2.5 | 0.7 | - | 0.8 | 4.6 | 5.5 |
| 14(7/22) | 1x2.5 | 0.7 | - | 0.8 | 4.7 | 5.6 |
| 12(solid) | 1x4 | 0.7 | - | 0.9 | 5.2 | 6.3 |
| 12(7/20) | 1x4 | 0.7 | - | 0.9 | 5.3 | 6.4 |
| 10(solid) | 1x6 | 0.7 | - | 0.9 | 5.7 | 6.8 |
| 10(7/18) | 1x6 | 0.7 | - | 0.9 | 5.9 | 7.1 |
| 8(7/16) | 1x10 | 0.7 | - | 0.9 | 6.7 | 8.1 |
| 6(7/14) | 1x16 | 0.7 | - | 0.9 | 7.6 | 9.2 |
| 4(7/12) | 1x25 | 0.9 | - | 1 | 9.7 | 11.4 |
| 2(7/10) | 1x35 | 0.9 | - | 1.1 | 10.6 | 12.8 |
| 6182B | ||||||
| 18(solid) | 2x1.0 | 0.7 | 0.4 | 1.2 | 7.1 | 9.5 |
| 18(7/26) | 2x1.0 | 0.7 | 0.4 | 1.2 | 7.3 | 9.7 |
| 16(solid) | 2x1.5 | 0.7 | 0.4 | 1.2 | 7.6 | 10.1 |
| 16(7/24) | 2x1.5 | 0.7 | 0.4 | 1.2 | 7.8 | 10.3 |
| 14(solid) | 2x2.5 | 0.7 | 0.4 | 1.2 | 8.4 | 11 |
| 14(7/22) | 2x2.5 | 0.7 | 0.4 | 1.2 | 8.5 | 11.3 |
| 12(solid) | 2x4 | 0.7 | 0.4 | 1.2 | 9.2 | 12.1 |
| 12(7/20) | 2x4 | 0.7 | 0.4 | 1.2 | 9.5 | 12.4 |
| 10(solid) | 2x6 | 0.7 | 0.4 | 1.2 | 10.2 | 13.2 |
| 10(7/18) | 2x6 | 0.7 | 0.4 | 1.2 | 10.6 | 13.7 |
| 8(solid) | 2x10 | 0.7 | 0.4 | 1.4 | 12.1 | 16 |
| 8(7/16) | 2x10 | 0.7 | 0.6 | 1.4 | 12.7 | 16.7 |
| 6(7/14) | 2x16 | 0.7 | 0.6 | 1.4 | 14.4 | 18.8 |
| 4(7/12) | 2x25 | 0.9 | 0.8 | 1.4 | 17.7 | 23.2 |
| 2(7/10) | 2x35 | 0.9 | 0.8 | 1.6 | 20 | 26 |
| 6183B | ||||||
| 18(solid) | 3x1.0 | 0.7 | 0.4 | 1.2 | 7.5 | 10.0 |
| 18(7/26) | 3x1.0 | 0.7 | 0.4 | 1.2 | 7.7 | 10.2 |
| 16(solid) | 3x1.5 | 0.7 | 0.4 | 1.2 | 8.0 | 10.6 |
| 16(7/24) | 3x1.5 | 0.7 | 0.4 | 1.2 | 8.2 | 10.9 |
| 14(solid) | 3x2.5 | 0.7 | 0.4 | 1.2 | 8.8 | 11.6 |
| 14(7/22) | 3x2.5 | 0.7 | 0.4 | 1.2 | 9.0 | 11.9 |
| 12(solid) | 3x4 | 0.7 | 0.4 | 1.2 | 9.8 | 12.7 |
| 12(7/20) | 3x4 | 0.7 | 0.4 | 1.2 | 10.1 | 13.1 |
| 10(solid) | 3x6 | 0.7 | 0.4 | 1.2 | 11.2 | 14.4 |
| 10(7/18) | 3x6 | 0.7 | 0.4 | 1.4 | 11.6 | 15.0 |
| 8(solid) | 3x10 | 0.7 | 0.6 | 1.4 | 12.8 | 16.9 |
| 8(7/16) | 3x10 | 0.7 | 0.6 | 1.4 | 13.5 | 17.7 |
| 6(7/14) | 3x16 | 0.7 | 0.6 | 1.4 | 15.3 | 19.9 |
| 4(7/12) | 3x25 | 0.9 | 0.8 | 1.4 | 18.9 | 24.6 |
| 2(7/10) | 3x35 | 0.9 | 0.8 | 1.6 | 2 1.3 | 27.6 |
| 6184B | ||||||
| 18(solid) | 4x1.0 | 0.7 | 0.4 | 1.2 | 8.1 | 10.7 |
| 18(7/26) | 4x1.0 | 0.7 | 0.4 | 1.2 | 8.3 | 11.0 |
| 16(solid) | 4x1.5 | 0.7 | 0.4 | 1.2 | 8.7 | 11.4 |
| 16(7/24) | 4x1.5 | 0.7 | 0.4 | 1.2 | 8.9 | 11.7 |
| 14(solid) | 4x2.5 | 0.7 | 0.4 | 1.2 | 9.6 | 12.6 |
| 14(7/22) | 4x2.5 | 0.7 | 0.4 | 1.2 | 9.9 | 12.8 |
| 12(solid) | 4x4 | 0.7 | 0.4 | 1.2 | 10.7 | 13.8 |
| 12(7/20) | 4x4 | 0.7 | 0.4 | 1.2 | 11.0 | 14.2 |
| 10(solid) | 4x6 | 0.7 | 0.4 | 1.4 | 12.2 | 16.1 |
| 10(7/18) | 4x6 | 0.7 | 0.6 | 1.4 | 12.7 | 16.7 |
| 8(solid) | 4x10 | 0.7 | 0.6 | 1.4 | 14.1 | 18.4 |
| 8(7/16) | 4x10 | 0.7 | 0.6 | 1.4 | 14.8 | 19.2 |
| 6(7/14) | 4x16 | 0.7 | 0.6 | 1.4 | 16.9 | 21.8 |
| 4(7/12) | 4x25 | 0.9 | 0.8 | 1.6 | 21.2 | 27.5 |
| 2(7/10) | 4x35 | 0.9 | 1.0 | 1.6 | 23.5 | 30.7 |
| 6185B | ||||||
| 18(solid) | 5x1.0 | 0.7 | 0.4 | 1.2 | 8.8 | 11.5 |
| 18(7/26) | 5x1.0 | 0.7 | 0.4 | 1.2 | 9.0 | 11.9 |
| 16(solid) | 5x1.5 | 0.7 | 0.4 | 1.2 | 9.4 | 12.3 |
| 16(7/24) | 5x1.5 | 0.7 | 0.4 | 1.2 | 9.7 | 12.6 |
| 14(solid) | 5x2.5 | 0.7 | 0.4 | 1.2 | 10.5 | 13.6 |
| 14(7/22) | 5x2.5 | 0.7 | 0.4 | 1.2 | 10.7 | 13.9 |
| 12(solid) | 5x4 | 0.7 | 0.4 | 1.4 | 12.0 | 15.9 |
| 12(7/20) | 5x4 | 0.7 | 0.6 | 1.4 | 12.4 | 16.4 |
| 10(solid) | 5x6 | 0.7 | 0.6 | 1.4 | 13.3 | 17.5 |
| 10(7/18) | 5x6 | 0.7 | 0.6 | 1.4 | 13.8 | 18.1 |
| 8(solid) | 5x10 | 0.7 | 0.6 | 1.4 | 15.4 | 20.0 |
| 8(7/16) | 5x10 | 0.7 | 0.6 | 1.4 | 16.2 | 20.9 |
| 6(7/14) | 5x16 | 0.7 | 0.8 | 1.4 | 18.5 | 24.2 |
| 4(7/12) | 5x25 | 0.9 | 1.0 | 1.6 | 23.3 | 30.5 |
| 2(7/10) | 5x35 | 0.9 | 1.0 | 1.6 | 25.9 | 33.6 |
