6381Y
Application and Description
These cables are designed for DC power supplies on Telecom equipment and power applications where flexibility is required.

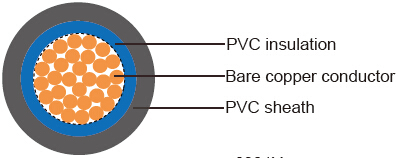

Cable Construction
- - Bare copper conductor
- - Stranding to BS6360 CL-5 or IEC60228 CL-5
- - PVC insulation Type TI1 to BS7655
- - PVC sheath Type TM1 to BS7655
oxygen index> 30%
Meets requirements for flammability as required by BT specification M231
Sheath/Core Identification
- Blue (Blue), Grey (Grey), Green/Yellow (Green/Yellow), Brown (Brown), Special colours to order
Technical Characteristics
- - Working voltage: 1.0mm^2 to 35mm^2 - 450/750V
50mm^2 and above - 600/1000V - - Minimum bending radius: up to 50 mm^2 : 3xoverall diameter,
70mm^2 and above: - 4xoverall diameter - - Operating temperature: -15o C to +70o C
- - Insulation resistance: 10 MΩxkm
- - Flame retardant: IEC 60332.1, BS4066 Part 1
Cable Parameter
| AWG (No of Strands/ Strand Diameter) |
No. of Cores x Nominal Cross Sectional Area #xmm^2 |
Nominal Thickness of Insulation mm |
Nominal Thickness of Sheath mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
| 16(30/30) | 1x1.5 | 0.9 | 0.8 | 4.9 | 36 |
| 14(50/30) | 1x2.5 | 0.9 | 0.8 | 5.4 | 52 |
| 12(56/28) | 1x4 | 1 | 0.9 | 6.3 | 76 |
| 10(84/28) | 1x6 | 1.1 | 0.9 | 7.6 | 100 |
| 8(80/26) | 1x10 | 1.2 | 1 | 8.6 | 160 |
| 6(128/26) | 1x16 | 1.2 | 1 | 9.8 | 230 |
| 4(200/26) | 1x25 | 1.4 | 1.1 | 11.5 | 340 |
| 2(280/26) | 1x35 | 1.4 | 1.1 | 12.5 | 440 |
| 1(400/26) | 1x50 | 1.4 | 1.4 | 15.1 | 541 |
| 2/0(356/24) | 1x70 | 1.4 | 1.4 | 17.0 | 749 |
| 3/0(485/24) | 1x95 | 1.6 | 1.5 | 19.1 | 1000 |
| 4/0(614/24) | 1x120 | 1.6 | 1.8 | 21.6 | 1241 |
| 300MCM (765/24) | 1x150 | 1.8 | 1.8 | 23.4 | 1523 |
| 350MCM (944/24) | 1x185 | 2 | 1.8 | 25.5 | 1942 |
| 500MCM(1225/24) | 1x240 | 2.2 | 1.8 | 28.5 | 2514 |
| -(1525/24) | 1x300 | 2.4 | 2 | 31.2 | 3125 |
| -(2013/24) | 1x400 | 2.6 | 2.1 | 35.3 | 3967 |
| -(1769/23) | 1x500 | 2.8 | 2.2 | 38.8 | 5063 |
| -(2257/23) | 1x630 | 2.8 | 2.4 | 43.8 | 6491 |
