Coil End Lead Cable to BS 6195 type 4
Application and Description
These cables are designed as power leads for permanent connection to coil winding motors, panel wiring and electrical machinery. They are able to withstand high temperature and immersion in varnish. Other applications include vehicle wiring, The HOFR sheath resists oil and varnish and the stranding is designed as a compromise between flexibility and positional stability. Also they are suitable for use as an alternative to tri-rated and bi-rated cable in certain applications.

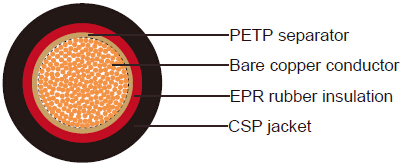

Cable Construction
- - Fine bare copper strands
- - Stranding to BS 6360 CL-5 or IEC 60228 CL-5
- - PETP(Polyethylene Terephthalate) tape separator
- - EPR-HOFR( Ethylene Propylene Rubber-Heat and Oil Resistant and Flame Retardant) insulation, type FR1 (for type 4A & 4C) & type FR2 (for type 4D & 4E&4F) to BS 7655-1.5, type EI2 (for type 5) to EN 50363-1
- - CSP(Chlorosulphonated Polyethylene), HOFR (Heat and Oil Resistant and Flame Retardant) sheath to BS 6899, black
Technical Characteristics
- - Working voltage: Type 4A: 300/500V
Type 4C: 600/1000V
Type 4D: 1900/3300V
Type 4E: 3800/6600V
Type 4F: 6350/11000V - - Minimum bending radius: 4xOverall diameter
- - Operating temperature max. : +90o C(for type 4), +180o C(for type 5)
Cable Parameter
| AWG (No of Strands/ Strand Diameter) |
No. of Cores x Nominal Cross Sectional Area #xmm^2 |
Nominal Thickness of Insulation mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
| TYPE 4A | ||||
| 18(24/32) | 1x0.75 | 0.8 | 3.5 | 16 |
| 17(32/32) | 1x1 | 0.8 | 3.7 | 19 |
| 16(30/30) | 1x1.5 | 0.8 | 4 | 25 |
| 14(50/30) | 1x2.5 | 0.9 | 4.6 | 37 |
| 12(56/28) | 1x4 | 1 | 5.4 | 57 |
| 10(84/28) | 1x6 | 1 | 6.5 | 80 |
| 8(80/26) | 1x10 | 1.2 | 7.9 | 130 |
| TYPE 4C | ||||
| 20(16/32) | 1x0.5 | 1.4 | 4.5 | 17 |
| 18(24/32) | 1x0.75 | 1.4 | 4.7 | 21 |
| 17(32/32) | 1x1 | 1.4 | 4.9 | 24 |
| 16(30/30) | 1x1.5 | 1.4 | 5.2 | 30 |
| 14(50/30) | 1x2.5 | 1.4 | 5.6 | 41 |
| 12(56/28) | 1x4 | 1.4 | 6.3 | 66 |
| 10(84/28) | 1x6 | 1.5 | 7.5 | 93 |
| 8(80/26) | 1x10 | 1.5 | 8.5 | 136 |
| 6(128/26) | 1x16 | 1.5 | 9.6 | 206 |
| 4(200/26) | 1x25 | 1.6 | 11.4 | 300 |
| 2(280/26) | 1x35 | 1.6 | 12.8 | 406 |
| 1(400/26) | 1x50 | 1.7 | 14.8 | 573 |
| 2/0(356/24) | 1x70 | 1.8 | 17.2 | 793 |
| 3/0(485/24) | 1x95 | 2 | 19.7 | 1028 |
| 4/0(614/24) | 1x120 | 2.2 | 21.9 | 1285 |
| 300 MCM (765/24) | 1x150 | 2.3 | 24.1 | 1562 |
| 350 MCM (944/24) | 1x185 | 2.4 | 26.3 | 1914 |
| 500MCM(1225/24) | 1x240 | 2.4 | 28.3 | 2431 |
| (1525/24) | 1x300 | 2.6 | 33 | 3024 |
| (2013/24) | 1x400 | 2.8 | 37.4 | 3948 |
| TYPE 4D | ||||
| 6(128/26) | 1x16 | 2.8 | 12.4 | 255 |
| 4(200/26) | 1x25 | 2.8 | 13.8 | 351 |
| 2(280/26) | 1x35 | 2.8 | 15.2 | 458 |
| 1(400/26) | 1x50 | 2.8 | 17.1 | 616 |
| 2/0(356/24) | 1x70 | 2.8 | 19.2 | 820 |
| 3/0(485/24) | 1x95 | 3 | 22 | 1097 |
| 4/0(614/24) | 1x120 | 3 | 23.5 | 1340 |
| 300 MCM (765/24) | 1x150 | 3 | 25.5 | 1635 |
| 350 MCM (944/24) | 1x185 | 3 | 27.5 | 1973 |
| 500MCM(1225/24) | 1x240 | 3 | 30.6 | 2504 |
| (1525/24) | 1x300 | 3 | 33.8 | 3098 |
| (2013/24) | 1x400 | 3 | 37.8 | 4045 |
| TYPE 4E | ||||
| 6(128/26) | 1x16 | 5 | 17.2 | 384 |
| 4(200/26) | 1x25 | 5 | 18.6 | 495 |
| 2(280/26) | 1x35 | 5 | 20 | 613 |
| 1(400/26) | 1x50 | 5 | 22.1 | 796 |
| 2/0(356/24) | 1x70 | 5 | 24.2 | 1020 |
| 3/0(485/24) | 1x95 | 5 | 26.3 | 1287 |
| 4/0(614/24) | 1x120 | 5 | 27.8 | 1542 |
| 300 MCM (765/24) | 1x150 | 5 | 29.8 | 1853 |
| 350 MCM (944/24) | 1x185 | 5 | 32.1 | 2225 |
| 500MCM(1225/24) | 1x240 | 5 | 35.1 | 2782 |
| TYPE 4F | ||||
| 6(128/26) | 1x16 | 7.6 | 22.9 | 566 |
| 4(200/26) | 1x25 | 7.6 | 24.1 | 680 |
| 2(280/26) | 1x35 | 7.6 | 25.5 | 810 |
| 1(400/26) | 1x50 | 7.6 | 27.3 | 997 |
| 2/0(356/24) | 1x70 | 7.6 | 29.4 | 1237 |
| 3/0(485/24) | 1x95 | 7.6 | 31.5 | 1520 |
| 4/0(614/24) | 1x120 | 7.6 | 33.3 | 1804 |
| 300 MCM (765/24) | 1x150 | 7.6 | 35.3 | 2131 |
| 350 MCM (944/24) | 1x185 | 7.6 | 37.3 | 2503 |
| 500MCM(1225/24) | 1x240 | 7.6 | 40.3 | 3081 |
