Li2YCY PiMF
Application and Description
Li2YCY PiMF is particularly suitable for wiring data systems and controls in large industrial plants, for the transmission of sensitive signals and high bit rates for enhanced requirements in near-end cross-talk attenuation and high electrical interference in the circuits. For measurement value transmission and serial 2-wire interfaces, Cables of this type are intended for limited flexible use, and for fixed installation in dry and damp interiors.
Standard and Approval
CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant

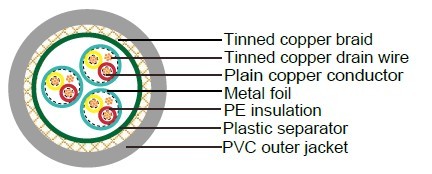

Cable Construction
- Plain copper conductor
- Stranded to DIN VDE 0295 cl. 5, IEC 60228 cl.5
- PE core insulation type 2YI1 to DIN VDE 0207 part 2
- Yellow and red core colours, pairs numbered as per DIN 47100
- Two cores twisted into a pair
- Plastic foil separator
- Screening of pairs with plastic laminated metal foil with multi-wire tinned copper drain wire
- Pairs (PiMF) twisted in layers
- Plastic foil separator
- 85% tinned copper braid
- PVC outer jacket type YM2 grey to DIN VDE 0207 part 5, black color for Yv version
Technical Characteristics
- Working voltage: 250 volts
- Test voltage:
Conductor to conductor 1200V
Conductor to shield 500V
Shield to shield 500V
- Minimum bending radius: 10 x O
- Flexing temperature: -5o C to +70o C
- Static temperature: -30o C to +70o C
- Flame retardant: IEC 60332.1-2
- Insulation resistance: 5GΩ x km
- Short-range crosstalk attenuation up to 1 MHz min. 75 dB
- Impendence at 1 MHz:
0.22mm^2 approx. 80Ohm
0.34mm^2 approx. 85Ohm
0.5mm^2 approx. 80Ohm
1.0mm^2 approx. 75Ohm
- Mutual capacitance at 800 Hz:
0.22mm^2 max.70nF/km
0.34mm^2 max.70nF/km
0.5mm^2 max.75nF/km
1.0mm^2 max.85nF/km
- Loop resistance:
0.22mm^2 max.186Ohm/km
0.34mm^2 max.115Ohm/km
0.5mm^2 max.78.4Ohm/km
1.0mm^2 max.39Ohm/km
Cable Parameter
| AWG | NO. OF CORES X NOMINAL CROSS SECTIONAL AREA # X MM^2 |
NOMINAL OVERALL DIAMETER MM |
COPPER WEIGHT KG / KM | CABLE WEIGHT KG / KM |
| 24(7/32) | 2 x 2 x 0.22 | 7.7 | 33 | 38 |
| 24(7/32) | 3 x 2 x 0.22 | 7.8 | 42 | 57 |
| 24(7/32) | 4 x 2 x 0.22 | 9.3 | 50 | 83 |
| 24(7/32) | 8 x 2 x 0.22 | 10.8 | 85 | 133 |
| 24(7/32) | 10 x 2 x 0.22 | 11.6 | 100 | 164 |
| 22(7/30) | 2 x 2 x 0.34 | 9.0 | 43 | 70 |
| 22(7/30) | 3 x 2 x 0.34 | 9.1 | 55 | 85 |
| 22(7/30) | 4 x 2 x 0.34 | 9.4 | 64 | 103 |
| 22(7/30) | 8 x 2 x 0.34 | 13.4 | 127 | 191 |
| 22(7/30) | 10 x 2 x 0.34 | 14.3 | 150 | 230 |
| 20(7/28) | 2 x 2 x 0.5 | 9.1 | 50 | 101 |
| 20(7/28) | 3 x 2 x 0.5 | 10.0 | 66 | 120 |
| 20(7/28) | 4 x 2 x 0.5 | 12.0 | 108 | 172 |
| 20(7/28) | 5 x 2 x 0.5 | 13.1 | 120 | 201 |
| 20(7/28) | 6 x 2 x 0.5 | 14.4 | 148 | 260 |
| 20(7/28) | 8 x 2 x 0.5 | 15.0 | 180 | 310 |
| 20(7/28) | 10 x 2 x 0.5 | 17.6 | 236 | 398 |
| 20(7/28) | 16 x 2 x 0.5 | 21.2 | 338 | 515 |
| 20(7/28) | 20 x 2 x 0.5 | 22.9 | 394 | 688 |
| 20(7/28) | 30 x 2 x 0.5 | 27.9 | 577 | 980 |
| 20(7/28) | 40 x 2 x 0.5 | 38.3 | 684 | 1390 |
| 20(7/28) | 50 x 2 x 0.5 | 43.2 | 834 | 1860 |
| 18(24/32) | 2 x 2 x 0.75 | 10.4 | 61 | 117 |
| 18(24/32) | 3 x 2 x 0.75 | 11.3 | 97 | 142 |
| 18(24/32) | 4 x 2 x 0.75 | 14.0 | 141 | 240 |
| 18(24/32) | 5 x 2 x 0.75 | 15.1 | 163 | 304 |
| 18(24/32) | 6 x 2 x 0.75 | 16.8 | 198 | 352 |
| 18(24/32) | 8 x 2 x 0.75 | 17.2 | 246 | 415 |
| 18(24/32) | 10 x 2 x 0.75 | 19.8 | 305 | 505 |
| 18(24/32) | 16 x 2 x 0.75 | 24.0 | 446 | 732 |
| 18(24/32) | 20 x 2 x 0.75 | 25.6 | 530 | 860 |
| 18(24/32) | 30 x 2 x 0.75 | 30.9 | 765 | 1210 |
| 17(32/32) | 2 x 2 x 1.0 | 11.9 | 72 | 130 |
| 17(32/32) | 3 x 2 x 1.0 | 12.2 | 104 | 161 |
| 17(32/32) | 4 x 2 x 1.0 | 16.2 | 186 | 360 |
| 17(32/32) | 5 x 2 x 1.0 | 17.4 | 231 | 412 |
| 17(32/32) | 6 x 2 x 1.0 | 18.7 | 260 | 472 |
| 17(32/32) | 8 x 2 x 1.0 | 19.2 | 322 | 540 |
| 17(32/32) | 10 x 2 x 1.0 | 22.2 | 382 | 670 |
| 17(32/32) | 16 x 2 x 1.0 | 26.9 | 578 | 982 |
| 17(32/32) | 20 x 2 x 1.0 | 29.4 | 710 | 1240 |
| 17(32/32) | 30 x 2 x 1.0 | 35.4 | 1050 | 1720 |
| 18(24/32) | 2 x 2 x 1.5 | 12.8 | 81 | 164 |
| 18(24/32) | 3 x 2 x 1.5 | 14.1 | 141 | 197 |
| 18(24/32) | 4 x 2 x 1.5 | 17.4 | 261 | 480 |
| 16(30/30) | 5 x 2 x 1.5 | 18.4 | 284 | 516 |
| 16(30/30) | 6 x 2 x 1.5 | 20.1 | 355 | 590 |
| 16(30/30) | 8 x 2 x 1.5 | 20.7 | 448 | 696 |
| 16(30/30) | 10 x 2 x 1.5 | 23.9 | 551 | 874 |
| 16(30/30) | 16 x 2 x 1.5 | 29.7 | 838 | 1340 |
| 16(30/30) | 20 x 2 x 1.5 | 31.7 | 1030 | 1620 |
