FG7M1/FG7OM1
Application and Description
These cables are especially used in power circuits or signals and commands transfer. In environments with high fire hazards risk when it's essential to guarantee the safety of people and goods. Typically hospitals, schools, commercial areas, public premises, hotels, undergrounds, residential buildings and industries ambits with high concentration of persons or instrumental goods. For fixed installation indoor or outdoor, clipped on metallic frames or walls.
Standard and Approval
- CEI 20-11; CEI 20-13; CEI 20-22 III; CEI 20-29; CEI 20-35; CEI 20-37; CEI-UNEL 00722; CEI-UNEL 35382
CEI-UMEL 35384

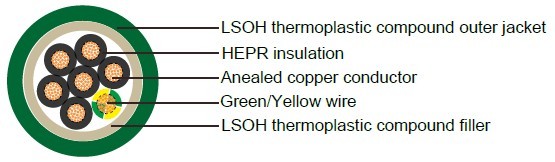

Cable Construction
 |
 |
| Flexible bare copper conductor to CEI 20-29 cl.5 |
| Rubber HEPR, G7 quality to CEI 20-11 |
| LSOH thermoplastic compound filler |
| Type M1 LSOH thermoplastic compound outer jacket |
Technical Characteristics
| WORKING VOLTAGE | 600/1000 V |
| TEST VOLTAGE | 4000 V |
| MINIMUM BENDING RADIUS | UNEL 35382: 4 x outer diameter |
| UNEL 35384: 6 x outer diameter | |
| FLEXING TEMPERATURE | 0o C to +90o C |
| STATIC TEMPERATURE | -25o C to +90o C |
| MAXIMUM SHORT CIRCUIT TEMPERATURE | +250o C |
| FLAME RETARDANT | CEI 20-22 II, IEC 60332-3-24 |
| INSULATION RESISTANCE | 100 MΩ x km |
Cable Parameter
| AWG | No. of Cores x Nominal Cross Sectional Area # x mm^2 |
Nominal Thickness of Insulation mm |
Nominal Thickness of Sheath mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km | ||||
| FG7M1(power) | |||||||||
| 16(30/30) | 1x1.5 | 0.7 | 1.4 | 5.8 | 55 | ||||
| 14(50/30) | 1x2.5 | 0.7 | 1.4 | 6.3 | 65 | ||||
| 12(56/28) | 1x4 | 0.7 | 1.4 | 6.7 | 85 | ||||
| 10(84/28) | 1x6 | 0.7 | 1.4 | 7.4 | 105 | ||||
| 8(80/26) | 1x10 | 0.7 | 1.4 | 8.3 | 155 | ||||
| 6(128/26) | 1x16 | 0.7 | 1.4 | 9.4 | 210 | ||||
| 4(200/26) | 1x25 | 0.9 | 1.4 | 11.1 | 310 | ||||
| 2(280/26) | 1x35 | 0.9 | 1.4 | 12.1 | 410 | ||||
| 1(400/26) | 1x50 | 1 | 1.4 | 13.9 | 560 | ||||
| 2/0(356/24) | 1x70 | 1.1 | 1.4 | 16.1 | 770 | ||||
| 3/0(485/24) | 1x95 | 1.1 | 1.5 | 18.0 | 990 | ||||
| 4/0(614/24) | 1x120 | 1.2 | 1.5 | 19.0 | 1250 | ||||
| 250 MCM | 1x150 | 1.4 | 1.6 | 22.3 | 1550 | ||||
| 350 MCM | 1x185 | 1.6 | 1.6 | 26.0 | 1900 | ||||
| 450 MCM | 1x240 | 1.7 | 1.7 | 26.4 | 2450 | ||||
| 550 MCM | 1x300 | 1.8 | 1.8 | 31.0 | 3000 | ||||
| FG7OM1(power) | |||||||||
| 16(30/30) | 2x1.5 | 0.7 | 1.8 | 9.6 | 155 | ||||
| 14(50/30) | 2x2.5 | 0.7 | 1.8 | 10.6 | 190 | ||||
| 12(56/28) | 2x4 | 0.7 | 1.8 | 11.4 | 240 | ||||
| 10(84/28) | 2x6 | 0.7 | 1.8 | 12.9 | 310 | ||||
| 8(80/26) | 2x10 | 0.7 | 1.8 | 14.6 | 460 | ||||
| 6(128/26) | 2x16 | 0.7 | 1.8 | 16.8 | 620 | ||||
| 4(200/26) | 2x25 | 0.9 | 1.8 | 20.3 | 900 | ||||
| 2(280/26) | 2x35 | 0.9 | 1.8 | 22.3 | 1200 | ||||
| 1(400/26) | 2x50 | 1.0 | 1.8 | 27.5 | 1650 | ||||
| 2/0(356/24) | 2x70 | 1.1 | 1.8 | 31.5 | 2050 | ||||
| 3/0(485/24) | 2x95 | 1.1 | 2.0 | 35.4 | 2670 | ||||
| 4/0(614/24) | 2x120 | 1.2 | 2.1 | 39.8 | 3330 | ||||
| 250 MCM | 2x150 | 1.4 | 2.2 | 44.1 | 4100 | ||||
| 16(30/30) | 3x1.5 | 0.7 | 1.8 | 10.6 | 175 | ||||
| 14(50/30) | 3x2.5 | 0.7 | 1.8 | 11.4 | 220 | ||||
| 12(56/28) | 3x4 | 0.7 | 1.8 | 12.5 | 280 | ||||
| 10(84/28) | 3x6 | 0.7 | 1.8 | 13.8 | 365 | ||||
| 8(80/26) | 3x10 | 0.7 | 1.8 | 16.2 | 550 | ||||
| 6(128/26) | 3x16 | 0.7 | 1.8 | 18.3 | 760 | ||||
| 4(200/26) | 3x25 | 0.9 | 1.8 | 21.8 | 1100 | ||||
| 2(280/26) | 3x35 | 0.9 | 1.8 | 24.3 | 1500 | ||||
| 1(400/26) | 3x50 | 1 | 1.8 | 27.8 | 2050 | ||||
| 2/0(356/24) | 3x70 | 1.1 | 1.9 | 32.4 | 2850 | ||||
| 3/0(485/24) | 3x95 | 1.1 | 2.0 | 35.6 | 3600 | ||||
| 4/0(614/24) | 3x120 | 1.2 | 2.1 | 40.0 | 4600 | ||||
| 250 MCM | 3x150 | 1.4 | 2.3 | 46.5 | 5600 | ||||
| 350 MCM | 3x185 | 1.6 | 2.4 | 51.2 | 6900 | ||||
| 450 MCM | 3x240 | 1.7 | 2.6 | 58.4 | 9150 | ||||
| 550 MCM | 3x300 | 1.8 | 2.8 | 64.0 | 11000 | ||||
| 16(30/30) | 4x1.5 | 0.7 | 1.8 | 11.3 | 200 | ||||
| 14(50/30) | 4x2.5 | 0.7 | 1.8 | 12.3 | 260 | ||||
| 12(56/28) | 4x4 | 0.7 | 1.8 | 13.5 | 340 | ||||
| 10(84/28) | 4x6 | 0.7 | 1.8 | 15.1 | 440 | ||||
| 8(80/26) | 4x10 | 0.7 | 1.8 | 17.6 | 670 | ||||
| 6(128/26) | 4x16 | 0.7 | 1.8 | 20.0 | 950 | ||||
| 4(200/26) | 4x25 | 0.9 | 1.8 | 23.9 | 1400 | ||||
| 2(280/26) | 3x35+25 | 0.9 | 1.8 | 29.2 | 1700 | ||||
| 1(400/26) | 3x50+25 | 1 | 1.8 | 32.4 | 2300 | ||||
| 2/0(356/24) | 3x70+35 | 1.1 | 1.9 | 37.0 | 3100 | ||||
| 3/0(485/24) | 3x95+50 | 1.1 | 2.1 | 42.0 | 4050 | ||||
| 4/0(614/24) | 3x120+70 | 1.2 | 2.2 | 46.9 | 5250 | ||||
| 300MCM | 3x150+95 | 1.4 | 2.4 | 52.5 | 6500 | ||||
| 350MCM | 3x185+95 | 1.6 | 2.5 | 57.3 | 7800 | ||||
| 500MCM | 3x240+150 | 1.7 | 2.7 | 65.5 | 10500 | ||||
| 16(30/30) | 5x1.5 | 0.7 | 1.8 | 11.7 | 250 | ||||
| 14(50/30) | 5x2.5 | 0.7 | 1.8 | 13.3 | 320 | ||||
| 12(56/28) | 5x4 | 0.7 | 1.8 | 14.6 | 410 | ||||
| 10(84/28) | 5x6 | 0.7 | 1.8 | 16.3 | 540 | ||||
| 8(80/26) | 5x10 | 0.7 | 1.8 | 19.2 | 800 | ||||
| 6(128/26) | 5x16 | 0.7 | 1.8 | 21.9 | 1150 | ||||
| 4(200/26) | 5x25 | 0.9 | 1.8 | 26.5 | 1700 | ||||
| 2(280/26) | 5x35 | 0.9 | 1.8 | 29.8 | 2250 | ||||
| 1(400/26) | 5x50 | 1.0 | 2.0 | 34.5 | 3200 | ||||
| FG7OM1(control) | |||||||||
| 16(30/30) | 7x1.5 | 0.7 | 1.8 | 12.6 | 275 | ||||
| 16(30/30) | 10x1.5 | 0.7 | 1.8 | 15.0 | 365 | ||||
| 16(30/30) | 12x1.5 | 0.7 | 1.8 | 16.2 | 410 | ||||
| 16(30/30) | 16x1.5 | 0.7 | 1.8 | 17.6 | 510 | ||||
| 16(30/30) | 19x1.5 | 0.7 | 1.8 | 18.6 | 580 | ||||
| 16(30/30) | 24x1.5 | 0.7 | 1.8 | 21.6 | 732 | ||||
| 14(50/30) | 7x2.5 | 0.7 | 1.8 | 14.1 | 340 | ||||
| 14(50/30) | 10x2.5 | 0.7 | 1.8 | 17.6 | 528 | ||||
| 14(50/30) | 12x2.5 | 0.7 | 1.8 | 18.0 | 569 | ||||
| 14(50/30) | 16x2.5 | 0.7 | 1.8 | 20.0 | 701 | ||||
| 14(50/30) | 19x2.5 | 0.7 | 1.8 | 20.7 | 793 | ||||
| 14(50/30) | 24x2.5 | 0.7 | 1.8 | 24.0 | 1100 | ||||
