FG7OH1M1/FG7OH2M1

Application and Description

These cables are suitable for environments with high fire hazards risk, where it’s essential to guarantee the safety of people and preserve systems and equipments from the corrosive gases (e.g. schools, hospitals, public premises, hotels, supermarkets, tubes, cinemas, theatres, discotheques, public offices). For fixed installation, both indoor and outdoor, on walls and metallic frames.

Standard and Approval

  • CEI 20-13, CEI 20-11, CEI 20-22 III, CEI 20-35 (EN60332-1), CEI 20-37 pt.2 (EN50267)

Cable Construction

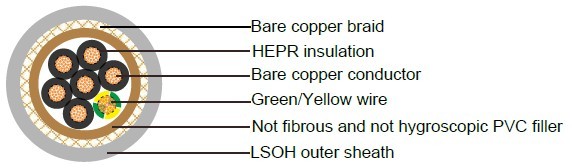

FG7OH2M1 FG7OH2M1
Flexible bare copper conductor to CEI 20-29 cl.5
Rubber HEPR, G7 quality,acc. to CEI 20-11
Not fibrous and not hygroscopic filler
Bare copper tape screen(for FG7OH1M1)
Bare copper wire braid(for FG7OH2M1)
Grey LSOH,type M1 outer jacket

Technical Characteristics

WORKING VOLTAGE 600/1000 V
TEST VOLTAGE 4000 V
MINIMUM BENDING RADIUS 8 x O
FLEXING TEMPERATURE 0o C to +90o C
STATIC TEMPERATURE -25o C to +90o C
MAXIMUM SHORT CIRCUIT TEMPERATURE +250o C
FLAME RETARDANT CEI 20-22 III - IEC 60332-3-24
INSULATION RESISTANCE 10 MΩ x km

Cable Parameter

AWG NO. OF CORES X NOMINAL CROSS SECTIONAL AREA NOMINAL THICKNESS OF INSULATION NOMINAL THICKNESS OF SHEATH NOMINAL OVERALL DIAMETER NOMINAL WEIGHT
# X MM^2 MM MM MM KG/KM
power
16(30/30) 2 x 1.5 0.7 1.8 12.6 241
14(50/30) 2 x 2.5 0.7 1.8 13.5 280
12(56/28) 2 x 4 0.7 1.8 14.5 336
10(84/28) 2 x 6 0.7 1.8 15.5 395
8(80/26) 2 x 10 0.7 1.8 18.4 567
6(128/26) 2 x 16 0.7 1.8 20.5 738
4(200/26) 2 x 25 0.9 1.8 25.3 1107
2(280/26) 2 x 35 0.9 1.8 27.7 1403
1(400/26) 2 x 50 1 1.8 30.6 1830
2/0(356/24) 2 x 70 1.1 1.8 36.4 2571
3/0(485/24) 2 x 95 1.1 1.8 39.0 3143
4/0(614/24) 2 x 120 1.2 1.8 46.3 4316
250MCM 2 x 150 1.4 1.8 52.8 5547
16(30/30) 3 x 1.5 0.7 1.8 13.0 262
14(50/30) 3 x 2.5 0.7 1.8 14.1 316
12(56/28) 3 x 4 0.7 1.8 15.0 380
10(84/28) 3 x 6 0.7 1.8 16.1 456
8(80/26) 3 x 10 0.7 1.8 19.3 675
6(128/26) 3 x 16 0.7 1.8 22.3 939
4(200/26) 3 x 25 0.9 1.8 26.6 1346
2(280/26) 3 x 35 0.9 1.8 29.2 1744
1(400/26) 3 x 50 1 1.8 32.3 2262
2/0(356/24) 3 x 70 1.1 1.9 38.5 3188
3/0(485/24) 3 x 95 1.1 2 44.2 4309
4/0(614/24) 3 x 120 1.2 2.1 51.6 5635
250MCM 3 x 150 1.4 2.3 56.6 6921
350MCM 3 x 185 1.6 2.4 60.2 8079
450MCM 3 x 240 1.7 2.6 69.7 10639
- 3 x 35 + 25 0.9 1.8 31.1 2038
- 3 x 50 + 25 1 1.8 34.7 2606
- 3 x 70+ 35 1.1 1.9 39.8 3540
- 3 x 95 + 50 1.1 2.1 45.9 4818
- 3 x 120 + 70 1.2 2.2 53.9 6358
- 3 x 150 + 95 1.4 2.4 59.0 7852
- 3 x 185 + 95 1.6 2.6 62.8 9066
- 3 x 240 + 150 1.7 2.8 73.0 12078
16(30/30) 4 x 1.5 0.7 1.8 13.8 298
14(50/30) 4 x 2.5 0.7 1.8 14.9 357
12(56/28) 4 x 4 0.7 1.8 16.1 438
10(84/28) 4 x 6 0.7 1.8 17.3 535
8(80/26) 4 x 10 0.7 1.8 20.8 802
6(128/26) 4 x 16 0.7 1.8 24.6 1164
4(200/26) 4 x 25 0.9 1.8 28.8 1664
16(30/30) 5 x 1.5 0.7 1.8 14.9 351
14(50/30) 5 x 2.5 0.7 1.8 16.2 424
12(56/28) 5 x 4 0.7 1.8 17.5 527
10(84/28) 5 x 6 0.7 1.8 18.9 635
8(80/26) 5 x 10 0.7 1.8 23.7 1027
6(128/26) 5 x 16 0.7 1.8 26.9 1415
4(200/26) 5 x 25 0.9 1.8 31.6 2022
control
16(30/30) 7 x 1.5 0.7 1.8 15.7 399
16(30/30) 10 x 1.5 0.7 1.8 17.8 503
16(30/30) 12 x 1.5 0.7 1.8 19.2 574
16(30/30) 16 x 1.5 0.7 1.8 21.0 690
16(30/30) 19 x 1.5 0.7 1.8 22.6 813
16(30/30) 24 x 1.5 0.7 1.8 24.6 927
14(50/30) 7 x2.5 0.7 1.8 17.1 496
14(50/30) 10 x 2.5 0.7 1.8 19.5 644
14(50/30) 12 x 2.5 0.7 1.8 21.2 732
14(50/30) 16 x 2.5 0.7 1.8 24.0 950
14(50/30) 19 x 2.5 0.7 1.8 25.0 1056
14(50/30) 24 x 2.5 0.7 1.8 38.3 1281
