H1VV-R

APPLICATIONS:

These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, underground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

STANDARD:

IEC 60502-1

CONSTRUCTION:

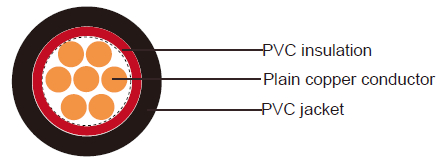

Conductor: Stranded copper conductor, class 2 to IEC 60228
Insulation: PVC insulation
Colour Code :HD 308 S2
Over Sheath: Flexible black PVC outer jacket

PHYSICAL PROPERTIES:

Flexing bending radius: 15 x O Static bending radius: 12 x O
Flexing temperature: -5o C to +50o C
Fixed installation temperature: - 40o C to +70o C

ELECTRICAL PROPERTIES:

Working Voltage: 600/1000 volts
Test voltage: 4000 volts
Flame retardant: IEC 60332-1, EN 50265-2-1
Insulation resistance: >100 MΩ x km

PARAMETERS:

Nominal Cross Section	Overall Diameter (Approx.)	Cable Weight (Approx.)	Nominal Cross Section	Overall Diameter (Approx.)	Cable Weight (Approx.)
mm^2	mm	Kg/Km	mm^2	mm	Kg/Km
1x4	7.5	95	3x4	15.5	380
1x6	8	120	3x6	17	470
1x10	9	165	3x10	18.5	630
1x16	10	230	3x16	21	880
1x25	12	340	3x25	24.5	1280
1x35	13	450	3x35	27	1660
1x50	14.5	570	3x50	30	2110
1x70	16	800	3x70	35	2980
1x95	18.5	1070	3x95	40	3930
1x120	20	1300	3x120	43	4780
1x150	22	1600	3x150	48	5880
1x185	24	1980	3x185	52	7230
1x240	27	2560	3x240	59	9390
1x300	30	3180	3x300	65	11620
1x400	33	4060	3x400	72	14730
1x500	37	5140	4x4	16.5	450
1x630	42	6600	4x6	18	560
2x4	15	330	4x10	20	770
2x6	16	400	4x16	23	1080
2x10	17.5	525	4x25	26.5	1580
2x16	20	720	4x35	29.5	2070
2x25	23.5	1030	4x50	34	2680
2x35	25.5	1320	4x70	38	3760
2x50	28.5	1670	4x95	44	4960
2x70	32	2290	4x120	48	6110
2x95	37	3060	4x150	53	7450
2x120	40	3700	4x185	58	9220
2x150	44	4500	4x240	65	11900
2x185	48	5570	4x300	72	14730
2x240	55	7180	4x400	81	18830
