XV
APPLICATIONS:
These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, underground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.
STANDARD:
IEC 60502-1 NP2363

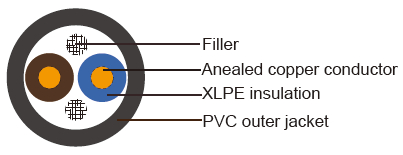

CONSTRUCTION:
Conductor: Plain copper conductor, , class 1(<6mmsq)/class2(>6mmsq) to IEC 60228
Insulation: XLPE insulation
Colour Code :HD 308 S2
Filler: Not fibrous and not hygroscopic fill
Over Sheath: Flexible black PVC, type ST2 outer jacket
PHYSICAL PROPERTIES:
Minimum bending radius: 12 x OOperation temperature range: -15 °C to 90 °C
Short-circuit temperature: 250 °C
ELECTRICAL PROPERTIES:
Working Voltage: 600/1000 voltsTest voltage: 3500 volts
Insulation resistance: 20 MΩ x km
PARAMETERS:
| Nominal Cross Section | Overall Diameter (Approx.) | Cable Weight (Approx.) | Nominal Cross Section | Overall Diameter (Approx.) | Cable Weight (Approx.) |
| mm^2 | mm | Kg/Km | mm^2 | mm | Kg/Km |
| 1 x 35 | 120 | 390 | 3 x 185 + 1 x 95 | 525 | 7810 |
| 1 x 50 | 135 | 515 | 3 x 240 + 1 x 120 | 590 | 10000 |
| 1 x 70 | 155 | 720 | 5 x 1,5 | 115 | 180 |
| 1 x 95 | 175 | 975 | 5 x 2,5 | 125 | 240 |
| 1 x 120 | 195 | 1225 | 5 x 4 | 135 | 330 |
| 1 x 150 | 210 | 1490 | 5 x 6 | 150 | 465 |
| 1 x 185 | 235 | 1855 | 5 x 10 | 180 | 685 |
| 1 x 240 | 265 | 2385 | 5 x 16 | 210 | 1020 |
| 1 x 300 | 285 | 2995 | 3 x 25 + 2G16 | 255 | 1440 |
| 1 x 400 | 320 | 3905 | 3 x 35 + 2G16 | 275 | 1785 |
| 1 x 500 | 360 | 4835 | 3 x 50 + 2G25 | 315 | 2415 |
| 2 x 1.5 | 95 | 115 | 3 x 70 + 2G35 | 360 | 3345 |
| 2 x 2.5 | 100 | 140 | 3 x 95 + 2G50 | 405 | 4480 |
| 2 x 4 | 110 | 185 | 3 x 120 + 2G70 | 465 | 5875 |
| 2 x 6 | 120 | 255 | 3 x 150 + 2G70 | 495 | 6835 |
| 2 x 10 | 145 | 365 | 3 x 185 + 2G95 | 555 | 8700 |
| 2 x 16 | 185 | 610 | 3 x 240 + 2G120 | 625 | 11125 |
| 2 x 25 | 215 | 890 | 5 x 1,5 | 110 | 180 |
| 2 x 35 | 235 | 1135 | 6 x 1,5 | 115 | 215 |
| 2 x 50 | 265 | 1475 | 7 x 1,5 | 115 | 220 |
| 3 x 1,5 | 100 | 130 | 8 x 1,5 | 132 | 265 |
| 3 x 2,5 | 105 | 170 | 10 x 1,5 | 143 | 280 |
| 3 x 4 | 115 | 225 | 12 x 1,5 | 147 | 320 |
| 3 x 6 | 125 | 295 | 14 x 1,5 | 155 | 360 |
| 3 x 10 | 150 | 455 | 16 x 1,5 | 162 | 405 |
| 3 x 16 | 195 | 745 | 19 x 1,5 | 171 | 460 |
| 3 x 25 | 230 | 1110 | 24 x 1,5 | 198 | 570 |
| 3 x 35 | 250 | 1440 | 30 x 1,5 | 21 | 685 |
| 3 x 50 | 280 | 1880 | 37 x 1,5 | 226 | 820 |
| 4 x 1,5 | 105 | 155 | 5 x 2,5 | 120 | 245 |
| 4 x 2,5 | 115 | 200 | 6 x 2,5 | 126 | 285 |
| 4 x 4 | 125 | 275 | 7 x 2,5 | 126 | 295 |
| 4 x 6 | 140 | 365 | 8 x 2,5 | 145 | 355 |
| 4 x 10 | 165 | 560 | 10 x 2,5 | 158 | 385 |
| 4 x 16 | 195 | 830 | 12 x 2,5 | 163 | 440 |
| 3 x 25 + 1 x 16 | 240 | 1280 | 14 x 2,5 | 171 | 500 |
| 3 x 35 + 1 x 16 | 260 | 1610 | 16 x 2,5 | 18 | 565 |
| 3 x 50 + 1 x 25 | 295 | 2150 | 19 x 2,5 | 189 | 650 |
| 3 x 70 + 1 x 35 | 335 | 3000 | 24 x 2,5 | 22 | 805 |
| 3 x 95 + 1 x 50 | 380 | 4015 | 30 x 2,5 | 233 | 975 |
| 3 x 120 + 1 x 70 | 435 | 5210 | 37 x 2,5 | 252 | 1180 |
| 3 x 150 + 1 x 70 | 470 | 6180 |
