ES05Z1-K(AS)/ES07Z1-K(AS)
Application and Description
These flexible and halogen-free cables are indicated for permanent installations in public premises and where low corrosive gas and fumes emission is required in case of fire, such as hospitals, schools, shopping centers, airports and in all installations where greater fire protection is required. These cables are also appropriate for the installation of individual by-passes. It satisfies all the specifications. .Appropriate for other installations where greater fire protection is required, even in housing
Standard and Approval
- UNE211002, IEC 60332-1, IEC 60332-3, IEC 60754-1, IEC 60754-2 , IEC 61034, EN 50266, EN 50267

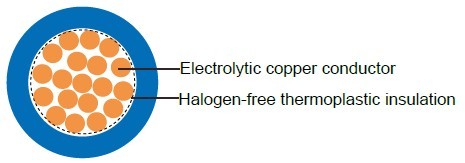

Cable Construction
 |
 |
- according to UNE-EN 60228 class 5 and IEC 60228 class 5
- Halogen-free thermoplastic insulation type T17, according to UNE 211002 and HD 21.15S1:2006.
Technical Characteristics
- Working voltage: 300/500V(ES05Z1-K)450/750V(ES07Z1-K)
- Test voltage: 2000V(ES05Z1-K)
2500V(ES07Z1-K)
- Minimum bending radius: 5×O
- Flexing temperature: -15℃ - +70℃
- Short circuit temperature: +70℃
- Insulation resistance: 350 MΩ x km
- Halogen free: IEC 60754-1, EN 50267-2-1
- No corrosive gases: IEC 60754-2, EN 50267-2-2
- No toxic gases: NES 02-713, NF X 70-100
- Low smoke density: IEC 61034, EN 50268-2
- Flame retardant: IEC 60332-1, EN 50265-2-1
- Non-flame propagating: IEC 60332-3, EN 50266-2
Cable Parameter
| AWG | NO. OF CORES X NOMINAL CROSS SECTIONAL AREA | NOMINAL THICKNESS OF INSULATION | NOMINAL OVERALL DIAMETER | NOMINAL COPPER WEIGHT | NOMINAL WEIGHT |
| # X MM^2 | MM | MM(MIN-MAX) | KG/KM | KG/KM | |
| 20(16/32) | 1×0.50 | 0.6 | 2.2 | 4.8 | 8.9 |
| 18(24/32) | 1×0.75 | 0.6 | 2.42 | 7.2 | 11.5 |
| 17(32/32) | 1×1 | 0.6 | 2.56 | 9.6 | 14.0 |
| ES07Z1-K(AS) | |||||
| 16(30/30) | 1 x 1.5 | 07 | 3.0 | 14.4 | 19.7 |
| 14(50/30) | 1 x 2.5 | 08 | 3.7 | 24 | 31.1 |
| 12(56/28) | 1 x 4 | 08 | 4.22 | 38 | 45.7 |
| 10(84/28) | 1 x 6 | 08 | 4.88 | 58 | 63.8 |
| 8(80/26) | 1 x 10 | 10 | 6.25 | 96 | 109 |
| 6(128/26) | 1 x 16 | 10 | 7.7 | 154 | 172 |
| 4(200/26) | 1 x 25 | 12 | 9.3 | 240 | 265 |
| 2(280/26) | 1 x 35 | 12 | 10.9 | 336 | 360 |
| 1(400/26) | 1 x 50 | 14 | 12.5 | 480 | 515 |
| 2/0(356/24) | 1 x 70 | 14 | 14.6 | 672 | 692 |
| 3/0(485/24) | 1 x 95 | 16 | 17.0 | 912 | 952 |
