NF M 87-202 EISF
Application
These NF M 87-202 EISF instrumentation cables are used to transmit analogue or digital signals in easurement and process control where chemicals may be present.
Standards References
- NF M 87-202
- UTE C 32-014
- NF C 32-020
- IEC 60332-1
- IEC 60332-3-24

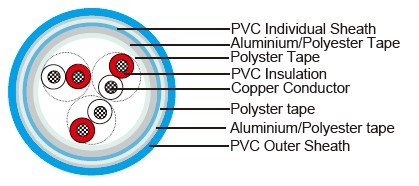

Cable Construction
- Conductor: Solid or Stranded copper conductor
- Insulation: PVC (70 mm maximum pair length)
- Individual Binder Tape: Polyster tape
- Individual Screen: Aluminium/polyester tape
- Individual Sheath: PVC
- Overall Binder Tape: Polyster tape
- Collective Screen: Aluminium/polyester tape
- Outer Sheath: PVC (Flame retardant, sunlight, mineral oil and hydrocarton resistant)
- Outer Sheath Colour: Light-blue
Core identification
| Colours | Natural | Red | Blue | Yellow |
| 1 pair | X | X | ||
| 1 triple | X | X | X | |
| 1 quad | X | X | X | X |
Characteristics
- Voltage Rationg: 300/500V
- Operating Temperature: -40°C/+90°C
- Installation Temperature: MAX+50°C
- Maximum Voltage: 250V
- Voltage Test: 2000V
- Maximum conductor d.c. Resistance:
Conductor Size Ohm/km at +20°C 1/0.80mm(0.50 sqmm) 37.50 7/0.40mm(0.88 sqmm) 21.40 7/0.53mm(1.50 sqmm) 12.50 - Capacitance between cond. (nf/km):
0.5 sqmm ≤ 145
0.88 sqmm ≤ 160
1.50 sqmm ≤ 180 - Type:
1 Serie Number of pairs, triples or quads / 01 to 27 2 Serie Lay up in pair(IP) ,triple (IT) , quads (IQ) 3 Serie Core section 05 (0.5mm2) , 09 (0.88 mm2) or 15(1.5mm2) 4 Serie Overall screen(EG) or individual screen + overall screen(EI) 5 Serie Mechanical protection: without armour (SF), with armour (FA), with lead + armour(PF) - Natural cores printed with pair/triple number
Dimensions and Weight
| NF M 87-202 | Number x cross section |
Cond. mm2 |
Outer Diameter(mm) | Weight (kg/km) |
|
| Min. | Max. | ||||
| 03 IP 05 EISF | 3X2X0.50 | 0.50 | 11.10 | 12.80 | 180 |
| 07 IP 05 EISF | 7X2X0.50 | 0.50 | 15.40 | 17.70 | 335 |
| 12 IP 05 EISF | 12X2X0.50 | 0.50 | 19.80 | 22.80 | 545 |
| 19 IP 05 EISF | 19X2X0.50 | 0.50 | 24.50 | 28.10 | 820 |
| 27 IP 05 EISF | 27X2X0.50 | 0.50 | 28.90 | 33.20 | 1135 |
| 03 IP 09 EISF | 3X2X0.88 | 0.88 | 13.50 | 15.50 | 270 |
| 07 IP 09 EISF | 7X2X0.88 | 0.88 | 19.00 | 21.80 | 500 |
| 12 IP 09 EISF | 12X2X0.88 | 0.88 | 24.50 | 28.10 | 820 |
| 19 IP 09 EISF | 19X2X0.88 | 0.88 | 30.30 | 34.80 | 1120 |
| 27 IP 09 EISF | 27X2X0.88 | 0.88 | 35.80 | 41.10 | 1700 |
| 01 IP 15 EISF | 1X2X1.50 | 1.50 | 7.20 | 8.40 | 90 |
| 07 IT 05 EISF | 7X3X0.50 | 0.50 | 16.90 | 19.40 | 425 |
| 12 IT 05 EISF | 12X3X0.50 | 0.50 | 21.50 | 24.60 | 695 |
| 07 IT 09 EISF | 7X3X0.88 | 0.88 | 20.60 | 23.70 | 655 |
| 12 IT 09 EISF | 12X3X0.88 | 0.88 | 26.50 | 30.40 | 1045 |
| 01 IT 15 EISF | 1X3X1.50 | 1.50 | 7.50 | 8.80 | 110 |
