EN 50288-7 Cables
XLPE Insulated, PVC Sheathed, Overall Screened & Armoured Instrumentation Cables
(Multitriple)
RE-2X(St)YSWAY 90°C / 300 V
APPLICATION
For transmission of analogue and digital signals in instrument and control systems; allowed for use in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to low impedance sources, e.g. public mains electricity supply. Recommended for indoor and outerdoor installation, on racks, trays, in conduits, in dry and wet locations; not for direct buiral. Recommended for use as fire protection messure for people and important material assets.
STANDARDS
Basic design to EN 50288-7
FIRE PERFORMANCE
| Flame Retardance (Single Vertical Wire Test) | EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
| Reduced Fire Propagation (Vertically-mounted bundled wires& cable test)*** | EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
| Halogen Free | IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1* |
| No Corrosive Gas Emission | IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2* |
| Minimum Smoke Emission | IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
| No Toxic gases | NES 02-713; NF C 20-454 |
Note: Asterisk * denotes superseded standard, *** denotes optional.
VOLTAGE RATING
300V

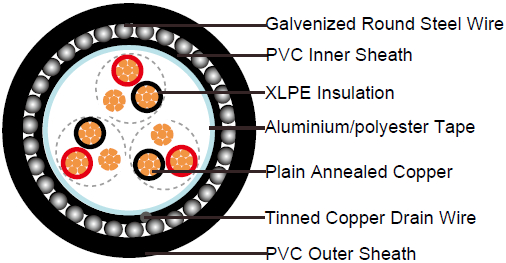

CABLE CONSTRUCTION
- Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
- Insulation: Extruded cross-linked XLPE compound as per EN 50290-2-29.
- Pair:Two conductors twisted to form a pair
- Lay-up: Pairs laid up in layers of optimum pitch
- Separator: Polyester tape
- Overall Screen: Aluminium/polyester tape with tinned copper drain wire, 0.5mm2
- Inner Sheath: Thermoplastic PVC compound
- Armour: Galvenized round steel wire, EN 10257-1
- Outer Sheath: Thermoplastic PVC compound as per EN 50290-2-22. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.
COLOUR CODE
- Insulation: Black / White / Red, continuously numbered on white core(1, 2..)for multitriples.
- Outer Sheath: Black or blue for intrinsically safe systems
PHYSICAL and THERMAL PROPERTIES
- Temperature Range During Operation (Fixed State): -30°C – +90°C
- Temperature Range During Installation (Mobile State): -5°C – +50°C
- Minimum Bending Radius: 7.5 X Overall Diameter
- Sunlight Resistance: UL 1581 section 1200
- Oil Resistance: ICEA S-73-532(Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation)
ELECTRICAL ROPERTIES
| Conductor Area Size | mm2 | 0.5 | 0.75 | 1.0 | 1.3 | 1.5 | |
| Insulation thickness (nominal) | mm | 0.35 | 0.38 | 0.4 | 0.45 | 0.45 | |
| Conductor resistance (20°C) | Ω/km | 36.7 | 25 | 18.5 | 14.2 | 12.3 | |
| Insulation resistance (20°C) | MΩ.km (Min.) | 5000 | |||||
| Mutual Capacitance (1kHz) | pF/m (Max.) | ||||||
| ≤4 pairs | 90 | 90 | 90 | 102 | 102 | ||
| all other pairs | 75 | 75 | 75 | 85 | 85 | ||
| Capacitance unbalance (1kHz) | pF/500m (Max.) | 500 | |||||
| L/R (ratio) (max.) | μH/Ω | 25 | 25 | 25 | 40 | 40 | |
| Inductance | mH/km (Max.) | 1 | |||||
| Operating voltage Urms | V | 300 | |||||
| Test Voltage | Core to Core | V | 1500 | ||||
| Core to Screen | V | 1500 | |||||
CONSTRUCTION PARAMETERS
| Caledonian Cable Code | RE-2X(St)HSWAH | |||||||
| No.ofTriples x3xCrossSection | Nominal Insulation Thick-ness | Nominal InnerSheath Thick -ness | NominalOverall Diameter Over Inner Sheath | Nominal Armour Wire Diameter | Nominal Outer Sheath Thick-ness | Nominal Overall Diameter | Approx. Weight | |
| No.x3xmm2 | mm | mm | mm | mm | mm | mm | kg/km | |
| 0.5mm2,Multi-striple | ||||||||
| RE-2X(St)HSWAH2T0.5 | 2x3x0.5 | 0.35 | 0.9 | 8.4 | 0.9 | 1.4 | 13.0 | 326 |
| RE-2X(St)HSWAH4T0.5 | 4x3x0.5 | 0.35 | 1.0 | 9.8 | 0.9 | 1.4 | 14.4 | 386 |
| RE-2X(St)HSWAH5T0.5 | 5x3x0.5 | 0.35 | 1.0 | 10.8 | 0.9 | 1.4 | 15.4 | 454 |
| RE-2X(St)HSWAH6T0.5 | 6x3x0.5 | 0.35 | 1.0 | 12.1 | 0.9 | 1.4 | 16.7 | 513 |
| RE-2X(St)HSWAH8T0.5 | 8x3x0.5 | 0.35 | 1.1 | 13.1 | 0.9 | 1.5 | 17.9 | 570 |
| RE-2X(St)HSWAH10T0.5 | 10x3x0.5 | 0.35 | 1.1 | 14.7 | 0.9 | 1.5 | 19.5 | 658 |
| RE-2X(St)HSWAH12T0.5 | 12x3x0.5 | 0.35 | 1.1 | 15.2 | 0.9 | 1.5 | 20.0 | 844 |
| RE-2X(St)HSWAH16T0.5 | 16x3x0.5 | 0.35 | 1.2 | 17.4 | 0.9 | 1.6 | 22.4 | 1001 |
| RE-2X(St)HSWAH20T0.5 | 20x3x0.5 | 0.35 | 1.2 | 19.1 | 1.25 | 1.6 | 24.8 | 1177 |
| RE-2X(St)HSWAH24T0.5 | 24x3x0.5 | 0.35 | 1.3 | 20.9 | 1.25 | 1.7 | 26.8 | 1327 |
| 0.75mm2,Multi-striple | ||||||||
| RE-2X(St)HSWAH2T0.75 | 2x3x0.75 | 0.38 | 1.0 | 10.6 | 0.9 | 1.4 | 13.9 | 369 |
| RE-2X(St)HSWAH4T0.75 | 4x3x0.75 | 0.38 | 1.1 | 12.4 | 0.9 | 1.4 | 15.5 | 462 |
| RE-2X(St)HSWAH5T0.75 | 5x3x0.75 | 0.38 | 1.1 | 13.7 | 0.9 | 1.4 | 16.6 | 526 |
| RE-2X(St)HSWAH6T0.75 | 6x3x0.75 | 0.38 | 1.1 | 15.4 | 0.9 | 1.5 | 18.5 | 614 |
| RE-2X(St)HSWAH8T0.75 | 8x3x0.75 | 0.38 | 1.2 | 16.7 | 0.9 | 1.5 | 19.5 | 697 |
| RE-2X(St)HSWAH10T0.75 | 10x3x0.75 | 0.38 | 1.3 | 19.0 | 0.9 | 1.5 | 21.5 | 918 |
| RE-2X(St)HSWAH12T0.75 | 12x3x0.75 | 0.38 | 1.3 | 19.7 | 0.9 | 1.7 | 22.3 | 1027 |
| RE-2X(St)HSWAH16T0.75 | 16x3x0.75 | 0.38 | 1.4 | 22.5 | 1.25 | 1.6 | 25.4 | 1237 |
| RE-2X(St)HSWAH20T0.75 | 20x3x0.75 | 0.38 | 1.5 | 24.9 | 1.25 | 1.7 | 27.6 | 1443 |
| RE-2X(St)HSWAH24T0.75 | 24x3x0.75 | 0.38 | 1.6 | 27.2 | 1.25 | 1.7 | 29.6 | 1628 |
| 1.0mm2,Multi-striple | ||||||||
| RE-2X(St)HSWAH2T1.0 | 2x3x1 | 0.4 | 1.0 | 11.5 | 0.9 | 1.4 | 15.0 | 403 |
| RE-2X(St)HSWAH4T1.0 | 4x3x1 | 0.4 | 1.1 | 13.4 | 0.9 | 1.4 | 16.5 | 528 |
| RE-2X(St)HSWAH5T1.0 | 5x3x1 | 0.4 | 1.1 | 14.8 | 0.9 | 1.5 | 18.0 | 619 |
| RE-2X(St)HSWAH6T1.0 | 6x3x1 | 0.4 | 1.2 | 16.9 | 0.9 | 1.5 | 19.8 | 829 |
| RE-2X(St)HSWAH8T1.0 | 8x3x1 | 0.4 | 1.2 | 18.1 | 0.9 | 1.5 | 20.9 | 945 |
| RE-2X(St)HSWAH10T1.0 | 10x3x1 | 0.4 | 1.3 | 20.7 | 0.9 | 1.6 | 24.1 | 1074 |
| RE-2X(St)HSWAH12T1.0 | 12x3x1 | 0.4 | 1.3 | 21.4 | 1.25 | 1.6 | 24.7 | 1212 |
| RE-2X(St)HSWAH16T1.0 | 16x3x1 | 0.4 | 1.4 | 24.4 | 1.25 | 1.7 | 27.6 | 1478 |
| RE-2X(St)HSWAH20T1.0 | 20x3x1 | 0.4 | 1.5 | 27.1 | 1.25 | 1.7 | 30.0 | 1736 |
| RE-2X(St)HSWAH24T1.0 | 24x3x1 | 0.4 | 1.6 | 29.6 | 1.25 | 1.8 | 32.2 | 2197 |
| 1.3mm2,Multi-striple | ||||||||
| RE-2X(St)HSWAH2T1.3 | 2x3x1,3 | 0.45 | 1.1 | 12.8 | 0.9 | 1.4 | 16.1 | 488 |
| RE-2X(St)HSWAH4T1.3 | 4x3x1,3 | 0.45 | 1.1 | 14.7 | 0.9 | 1.5 | 18.2 | 620 |
| RE-2X(St)HSWAH5T1.3 | 5x3x1,3 | 0.45 | 1.2 | 16.5 | 0.9 | 1.5 | 19.6 | 720 |
| RE-2X(St)HSWAH6T1.3 | 6x3x1,3 | 0.45 | 1.3 | 18.8 | 0.9 | 1.5 | 21.7 | 952 |
| RE-2X(St)HSWAH8T1.3 | 8x3x1,3 | 0.45 | 1.3 | 20.1 | 0.9 | 1.6 | 23.8 | 1076 |
| RE-2X(St)HSWAH10T1.3 | 10x3x1,3 | 0.45 | 1.4 | 23.0 | 1.25 | 1.7 | 26.6 | 1320 |
| RE-2X(St)HSWAH12T1.3 | 12x3x1,3 | 0.45 | 1.5 | 24.0 | 1.25 | 1.7 | 27.3 | 1454 |
| RE-2X(St)HSWAH16T1.3 | 16x3x1,3 | 0.45 | 1.6 | 27.4 | 1.25 | 1.8 | 30.5 | 1785 |
| RE-2X(St)HSWAH20T1.3 | 20x3x1,3 | 0.45 | 1.7 | 30.4 | 1.25 | 1.8 | 33.2 | 2323 |
| RE-2X(St)HSWAH24T1.3 | 24x3x1,3 | 0.45 | 1.8 | 33.1 | 1.60 | 1.9 | 36.6 | 2633 |
| 1.5mm2,Multi-striple | ||||||||
| RE-2X(St)HSWAH2T1.5 | 2x3x1,5 | 0.45 | 1.1 | 13.2 | 0.9 | 1.4 | 16.5 | 491 |
| RE-2X(St)HSWAH4T1.5 | 4x3x1,5 | 0.45 | 1.2 | 15.4 | 0.9 | 1.5 | 18.8 | 673 |
| RE-2X(St)HSWAH5T1.5 | 5x3x1,5 | 0.45 | 1.2 | 17.1 | 0.9 | 1.5 | 20.2 | 894 |
| RE-2X(St)HSWAH6T1.5 | 6x3x1,5 | 0.45 | 1.3 | 19.5 | 0.9 | 1.6 | 22.6 | 1021 |
| RE-2X(St)HSWAH8T1.5 | 8x3x1,5 | 0.45 | 1.4 | 21.1 | 1.25 | 1.6 | 24.8 | 1208 |
| RE-2X(St)HSWAH10T1.5 | 10x3x1,5 | 0.45 | 1.5 | 24.1 | 1.25 | 1.7 | 27.5 | 1433 |
| RE-2X(St)HSWAH12T1.5 | 12x3x1,5 | 0.45 | 1.5 | 24.9 | 1.25 | 1.7 | 28.4 | 1565 |
| RE-2X(St)HSWAH16T1.5 | 16x3x1,5 | 0.45 | 1.6 | 28.4 | 1.25 | 1.8 | 31.8 | 2157 |
| RE-2X(St)HSWAH20T1.5 | 20x3x1,5 | 0.45 | 1.7 | 31.6 | 1.25 | 1.9 | 34.9 | 2510 |
| RE-2X(St)HSWAH24T1.5 | 24x3x1,5 | 0.45 | 1.8 | 34.4 | 1.60 | 2.0 | 38.3 | 2873 |
Note : Other conductor sizes & core configurations are available upon request.
